Запчасти Case IH 1070 (0160) - ADJUSTABLE STEERING COLUMN, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

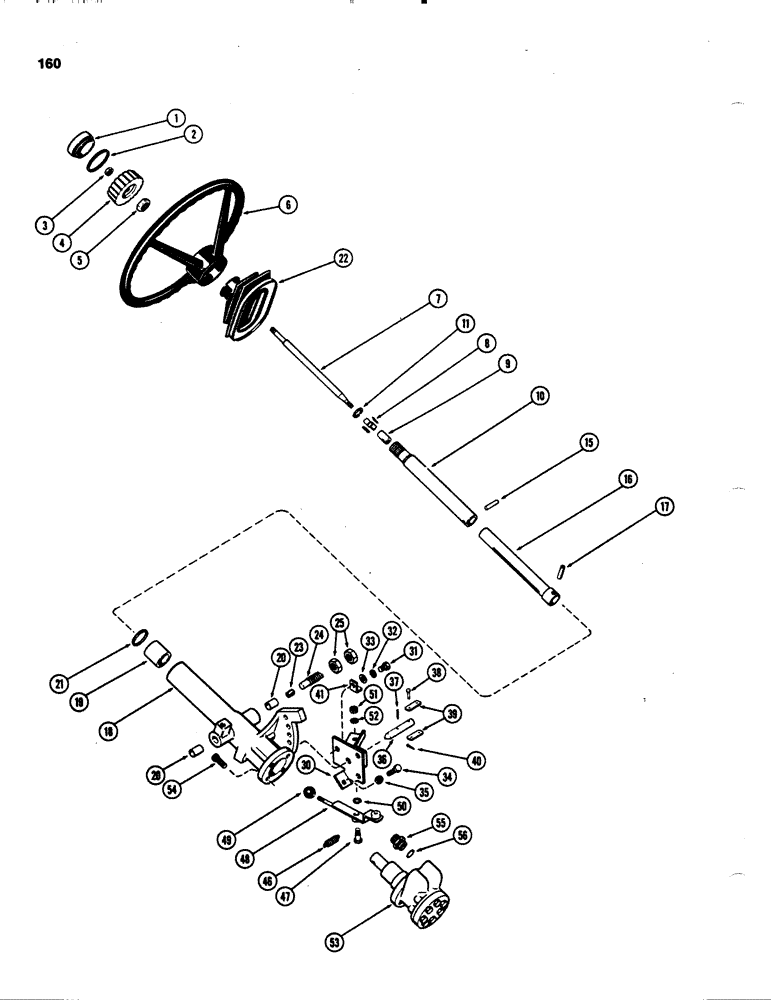

Схема запчастей Case IH 1070 - (0160) - ADJUSTABLE STEERING COLUMN, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (05) - STEERING
11
52
5
8
2
32
24
41
18
7
46
25
33
17
39
51
56
47
16
23
50
53
20
30
40
37
48
20
6
34
31
38
19
15
54
9
35
21
4
22
55
49
3
10
36
1

Артикул

Название

Примечание

Количество

1

A62210

PLUG

CAP - steering wheel lock knob

1шт.

2

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

RING - retaining, lock knob cap

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- knob to shaft, 3/8" NC hex, jam

1шт.

4

A141827

CAP

KNOB - steering wheel lock (Replaces A61293)

1шт.

5

A14567

JAM NUT

- steering wheel to shaft, 13/16" NF hex

1шт.

6

A65544

STEERING WHEEL

(Replaces A61007)

1шт.

7

A61292

SHAFT

- lock, telescoping

1шт.

8

A61212

WEDGE

- telescoping lock

4шт.

9

A59819

NUT

COLLAR - lock wedge, 5/16" NC tapped hole

1шт.

10

A59812

SHAFT - steering, outer

1шт.

11

A60896

RING, SNAP

RING -snap, lock wedge retainer

1шт.

15

A59821

PIN

- lock, shaft guide

1шт.

16

A62182

SHAFT - steering, inner

1шт.

17

138-173

LOCK PIN,3/8" x 1 3/8", Slotted

PIN, 3/8" x 1 3/8", Slotted

1шт.

A61737

COLUMN ASSY - steering, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

COLUMN - steering (Order A61737)

1шт.

19

A59808

BEARING

- steering column

1шт.

20

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- steering column pivot stud

2шт.

21

A61736

WIPER SEAL

- wiper, steering column

1шт.

22

A61910

BOOT

- steering column

1шт.

23

A59842

BUMPER

SNUBBER - steering column pivot

2шт.

24

A59163

STUD

- pivot, 5/8" NC thrd

2шт.

25

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" NC hex, jam

4шт.

30

A59822

SUPPORT - tilt steering plunger

1шт.

31

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

32

92-5

LOCK WASHER,5/16"

3шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

34

113-129

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5, Full Thd

- 5/16 x 1-1/4" NC hex

1шт.

35

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" NC hex, jam

1шт.

36

A61739

PLUNGER

- tilt steering

1шт.

37

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

38

A59843

PIN - tilt plunger to lever link

2шт.

39

A59830

LINK -, Serial Range: plunger-lever

2шт.

40

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

41

A59835

CLIP - tilt plunger tension spring

1шт.

46

A30707

SPRING

- tension, 2-3/16" free length

1шт.

47

A59831

BOLT - pivot, 5/16" NC hex shoulder

1шт.

48

A60719

LEVER - tilt

1шт.

49

A61683

BUTTON

KNOB - tilt lever

1шт.

50

A59832

WASHER - spring, 7/16 x 39/64 x 3/64"

1шт.

51

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" NC hex, jam

1шт.

52

92-5

LOCK WASHER,5/16"

1шт.

53

REF

INSTRUCTION

PUMP ASSY - hand, steering (See Figure 192)

1шт.

54

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - 5/16 x 1" NC cap

4шт.

55

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSY - pump to hose, Incl. Ref 56

2шт.

56

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

Выбрано товаров: 46
