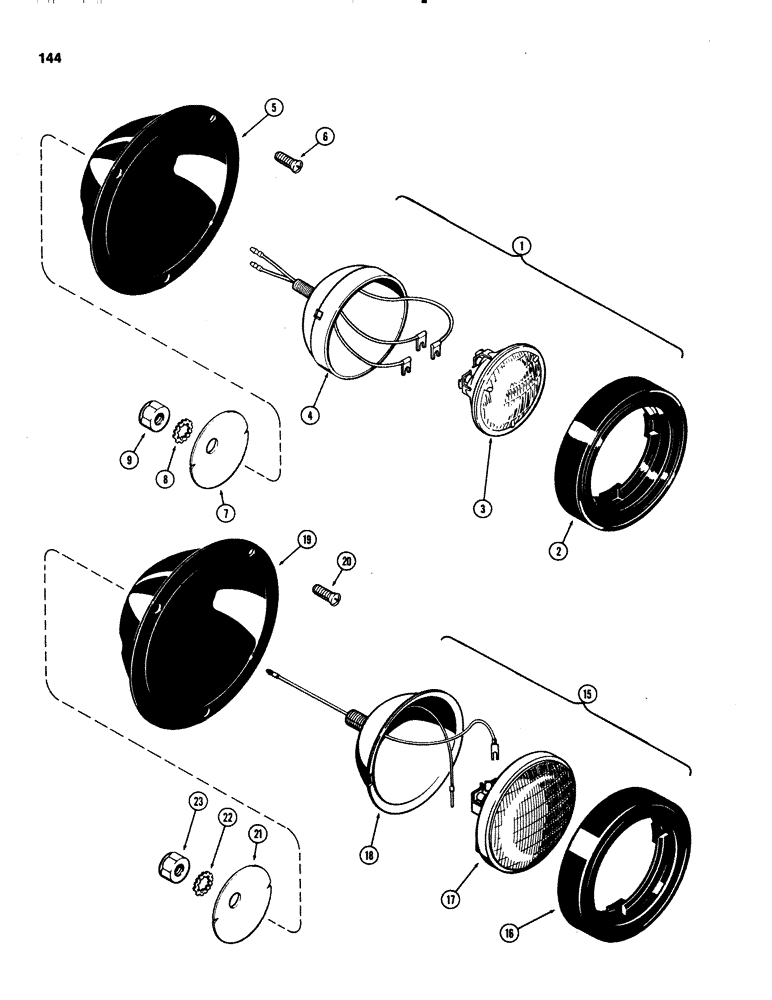

Запчасти Case IH 1070 (0144) - HEAD LAMPS, DUAL BEAM (04) - ELECTRICAL SYSTEMS

1

A64498

LAMP

- head (2 beam) (1st used trac ser no. 8693001), Includes: Ref. 2 - 4

2шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A43712

LAMP

- sealed unit (#4457)

1шт.

4

NSS

NOT SOLD SEPARAT

BODY & WIRE ASSY - (Order A64498)

1шт.

5

A59698

BEZEL

- lamp mounting, RH (w/o cab)

1шт.

5

A59699

BEZEL

- lamp mounting, LH (w/o cab)

1шт.

6

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" self-tapping

6шт.

7

A59702

RETAINER

- front head lamp

2шт.

8

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

A59701

LAMP

- head (single beam) (Used prior to trac ser no. 8693001), Includes: Ref. 16 - 18

2шт.

16

A25213

RETAINER

- sealed beam, single

1шт.

A24572

LAMP

KIT - head lamp, Includes: Ref. 17, single beam

1шт.

A11276

GASKET

- (Not used this unit), single beam

1шт.

17

NSS

NOT SOLD SEPARAT

LAMP - sealed beam (Order A24572), single beam

1шт.

18

NSS

NOT SOLD SEPARAT

BODY & WIRE ASSY - (Order A59701), single beam

1шт.

19

A59698

BEZEL

- lamp mounting, RH (w/o cab), single beam

1шт.

19

A59699

BEZEL

- lamp mounting, LH (w/o cab), single beam

1шт.

20

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" self-tapping, single beam

6шт.

21

A59702

RETAINER

- front head lamp, single beam

2шт.

22

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Single beam Ext-Int Tooth, 1/2"

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

Single beam 1/2"-13, G5

2шт.
