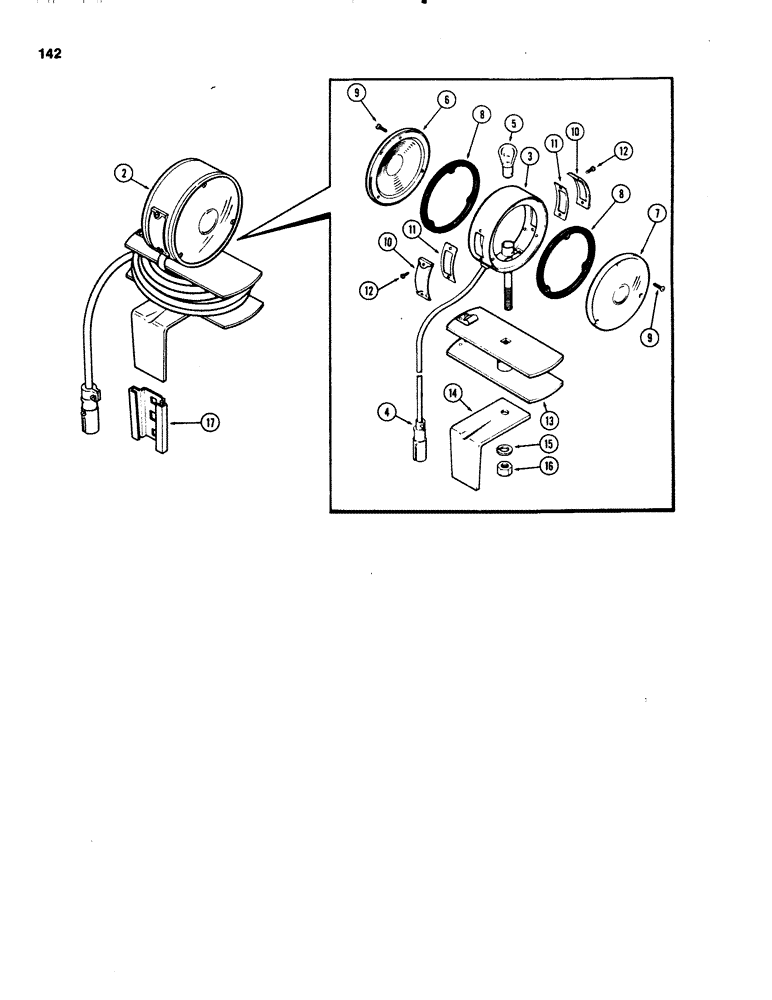

Запчасти Case IH 1070 (0142) - IMPLEMENT WARNING LAMP (04) - ELECTRICAL SYSTEMS

2

A11066

LAMP ATTACHMENT - warning (Machinery item), Includes: Ref. 3 - 17

1шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSY - w/cord (Order A11066)

1шт.

4

B50259

PLUG

- (to auxiliary socket)

1шт.

5

33686

BULB

- lamp (21 CP)

1шт.

6

B50337

LENS

- lamp (amber)

1шт.

7

B53962

LENS

- lamp (red)

1шт.

8

B50317

GASKET - lens

2шт.

9

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens, #6 x 1/2" NC, round head

6шт.

10

B50328

LENS - lamp, side (clear)

2шт.

11

B50329

GASKET - side lens

2шт.

12

182-43

SCREW - side lens, #6 x 5/16" NC, round head

4шт.

13

B50330

SPOOL - lamp cord reel

1шт.

14

B50331

BRACKET - lamp mounting

1шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" NF hex

1шт.

17

A8179

SOCKET

- lamp positioning

1шт.
