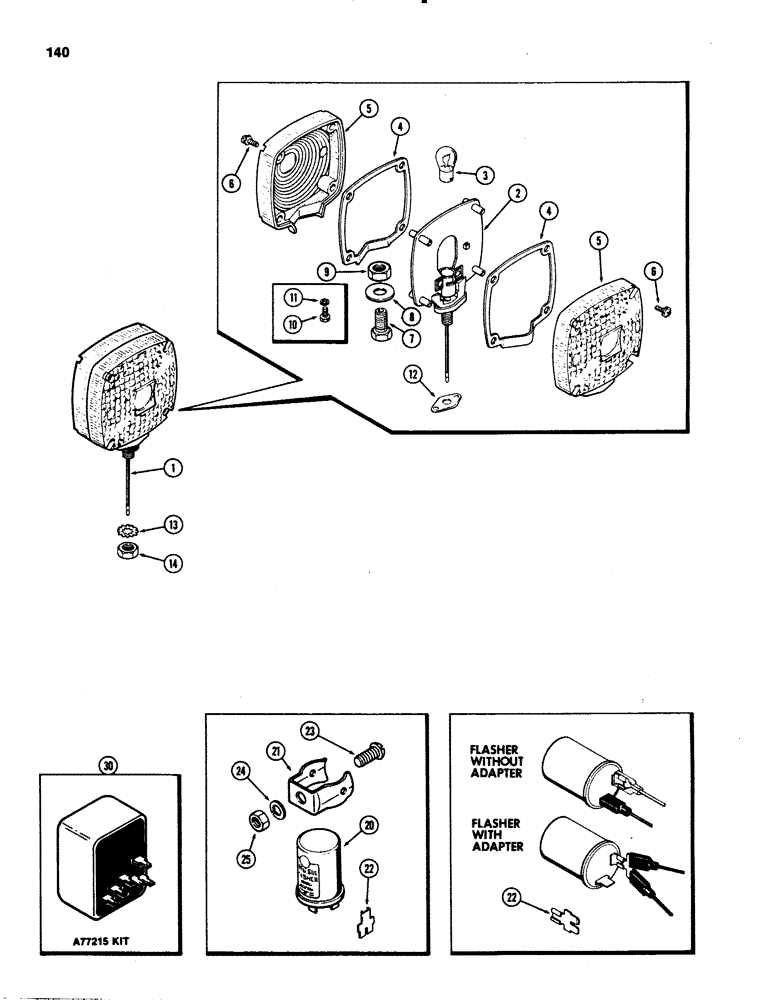

Запчасти Case IH 1070 (0140) - FLASHER LAMP, SQUARE TYPE, WITH CAB (04) - ELECTRICAL SYSTEMS

1

A44201

LIGHT ASSY.

LAMP ASSY. - flasher, square (Replaces A64587), Includes: Ref. 2 - 12

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A44201)

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A43731

GASKET

- lens

2шт.

A44202

KIT

- lens replacement, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

LENS - amber (Order A44202)

2шт.

6

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - lens, #8-32 x 5/8" slotted Phillips hd

8шт.

7

A45118

STUD

- drilled, Serial Range: (lamp-fender)

1шт.

8

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

1шт.

9

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

10

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- 1/4 x 1/2" N.C. hex. (lamp to cab)

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

F63435

GASKET

- base

1шт.

13

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

14

129-125

NUT,1/2"-20, G5

(Production Only) 1/2"-20, G5

2шт.

20

A65550

FLASHER UNIT

FLASHER - element, w/sealing gasket

121шт.

A34869

BRACKET

- flasher element mounting

1шт.

22

A34862

KIT

ADAPTER KIT - flasher by-pass (required for steady light) (See Inset)

1шт.

23

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. rd. hd. mach.

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

(Replaces 123-102) 5/16"-18, G5

1шт.

30

A77215

SIGNAL

KIT - turn signal switch (Special for California to replace standard switch to eliminate flasher)

1шт.
