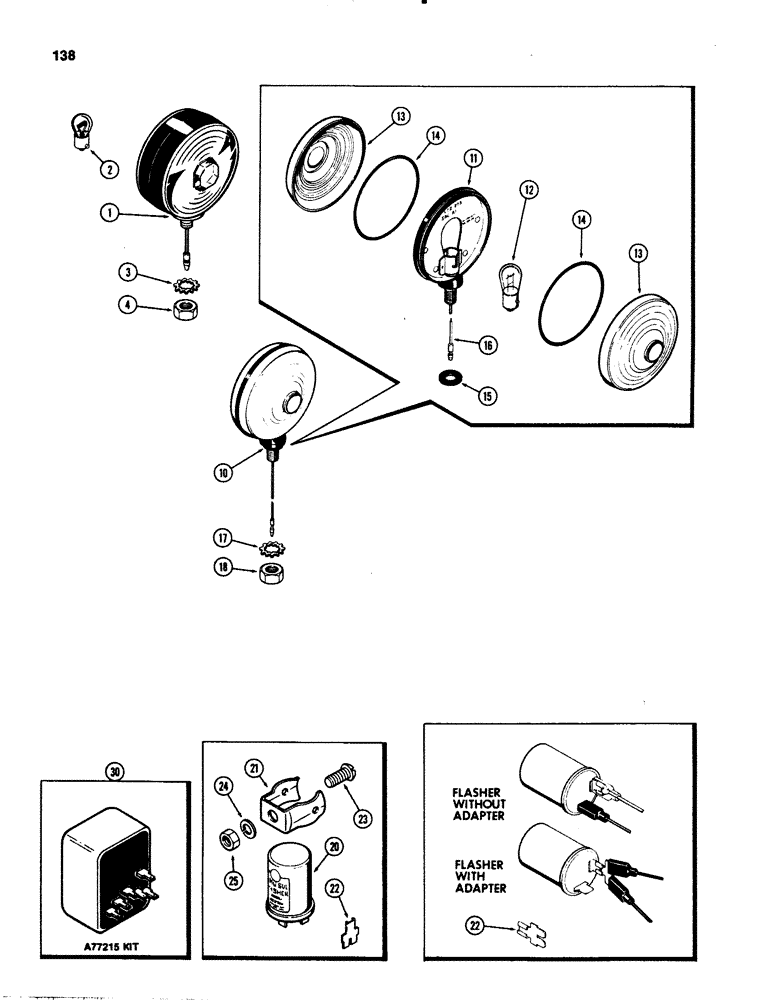

Запчасти Case IH 1070 (0138) - FLASHER LAMP, ROUND TYPE, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

A143600

LAMP

ASSY. - flasher (amber) (Fender mounted)

2шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

2шт.

3

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - Shakeproof, 1/2" ext

2шт.

4

129-125

NUT,1/2"-20, G5

2шт.

10

A34853

LAMP

ASSY - flasher, round, Includes: Ref. 11 - 16, with cab

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A34853), with cab

1шт.

12

A41264

BULB,#1156, 12V

Lamp, with cab #1156, 12V

1шт.

13

A41261

LENS

- lamp, with cab

2шт.

14

A41262

O-RING,3.484" ID x 0.139"

- lamp, with cab

2шт.

15

A41263

GASKET - lamp, with cab

1шт.

16

A41260

WIRE - lamp, with cab

1шт.

17

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/ Cab Ext-Int Tooth, 1/2"

1шт.

18

129-125

NUT,1/2"-20, G5

With Cab 1/2"-20, G5

1шт.

20

A65550

FLASHER UNIT

FLASHER - element, w/sealing gasket, with cab

1шт.

21

A34869

BRACKET

- flasher element mounting, with cab

1шт.

22

A34862

KIT

ADAPTER KIT - flasher by-pass (required for steady light) (See Inset), with cab

1шт.

23

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. rd. hd. mach., with cab

1шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , w/Cab 5/16"

1шт.

25

123-102

NUT - 5/16" N.C. hex., with cab

1шт.

30

A77215

SIGNAL

KIT - turn signal switch (Special for California to replace standard switch to eliminate flasher), with cab

1шт.
