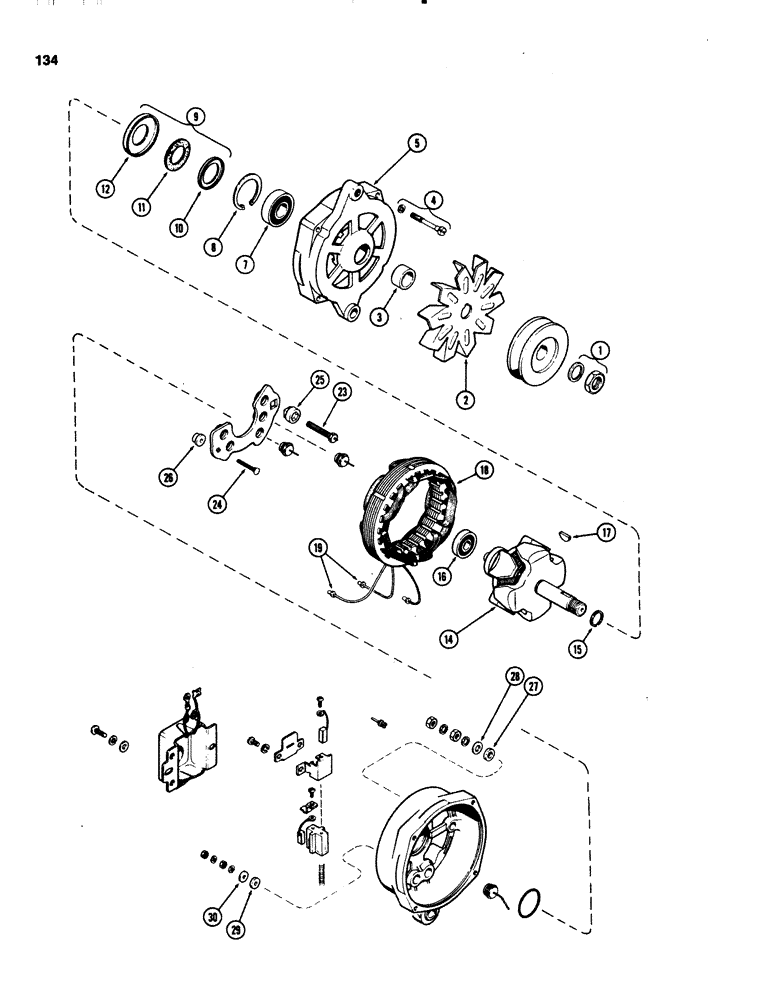

Запчасти Case IH 1070 (0134) - A137183 ALTERNATOR, PRESTOLITE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A137183
ALTERNATOR
ASSY - (w/2 mtg feet) (Eltra #ALH-5307-S) (Order 1-A45304 alternator 1-A42267 pulley and 1-A44543 regulator) (Production Only) (Replaces A61062) (See Note)
1шт.
A45237
ALTERNATOR
ASSY - (w/2 mtg feet) (Eltra #ALH-5307-S) (Less pulley and regulator) (Repairs Only) (Replaces A42444) (Order A45304) (See Page 131), Includes: Ref. 1 - 55
1шт.
1
A40581
KIT
- nut & washer, rotor shaft
1шт.
2
A41066
FAN
- ventilating
1шт.
3
A41078
BUSHING
SPACER - rotor shaft
1шт.
4
A41094
BOLT
- bolt, thru (Set of 4 w/washers)
1шт.
5
A44361
COVER
HEAD ASSY - drive end, Includes: Ref. 7 - 12
1шт.
7
A45230
BEARING ASSY
BEARING - ball (Replaces A42263)
1шт.
8
NSS
NOT SOLD SEPARAT
RING - snap, bearing retainer
1шт.
9
A42268
KIT
- retainer, Includes: Ref. 10 - 12
1шт.
10
NSS
NOT SOLD SEPARAT
RETAINER - seal
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL - felt
1шт.
12
NSS
NOT SOLD SEPARAT
RETAINER - felt seal
1шт.
14
A42269
SPARE PART
ROTOR ASSY - alternator, Includes: Ref. 15 and 16
1шт.
15
A25626
RING
- snap, rotor
1шт.
16
A42270
BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"
BEARING - ball, rotor shaft (sealed)
1шт.
17
126-112
WOODRUFF KEY,#6, 5/32" x 5/8", HT
Pulley #6, 5/32" x 5/8", HT
1шт.
18
A42271
STATOR
ASSY - alternator
1шт.
19
A41065
KIT
- eyelet, wire end (Set of 6)
1шт.
A41080
KIT
- stud, terminal, Includes: Ref. 23 - 30
1шт.
23
NSS
NOT SOLD SEPARAT
STUD - battery terminal
1шт.
24
NSS
NOT SOLD SEPARAT
STUD - auxiliary terminal
1шт.
25
NSS
NOT SOLD SEPARAT
BUSHING - insulation, battery terminal
1шт.
26
NSS
NOT SOLD SEPARAT
BUSHING - insulation, auxiliary terminal
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER - insulating, battery terminal
1шт.
28
NSS
NOT SOLD SEPARAT
WASHER - plain, battery terminal
1шт.
29
NSS
NOT SOLD SEPARAT
WASHER - insulating, auxiliary terminal
1шт.
30
NSS
NOT SOLD SEPARAT
WASHER - plain, auxiliary terminal
1шт.
Выбрано товаров: 28
