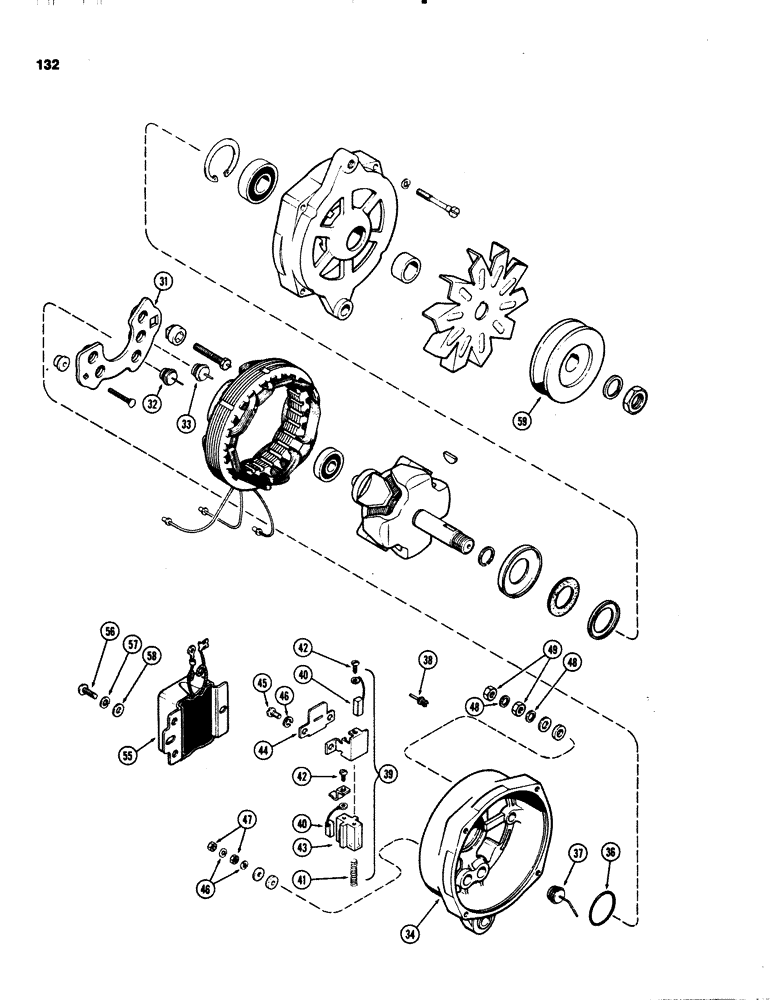

Запчасти Case IH 1070 (0132) - A45304 ALTERNATOR, PRESTOLITE (04) - ELECTRICAL SYSTEMS

A45304

ALTERNATOR

ASSY - (Continued from Fig. 130)

1шт.

31

A44349

PLATE ASSY.

HEAT SINK - diode (Replaces A42265), Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

DIODE - positive

3шт.

33

NSS

NOT SOLD SEPARAT

DIODE - output (matched set of 2)

1шт.

34

A45321

HEAD ASSY.

HEAD ASSY - slip ring end, Includes: Ref. 36 - 43

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

- sealing

1шт.

37

A44180

KIT

DIODE - negative (Replaces A41071) (Set of 4)

3шт.

38

A42266

KIT

- plugs (Set of 10)

1шт.

39

A45467

BUSHING

HOLDER ASSY - brush (Replaces A43952)

1шт.

40

A41063

BRUSH, COMMUTATOR

KIT - brush, armature (Set of 2)

1шт.

41

A41064

VALVE SPRING

SPRING KIT - brush (Set of 2)

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - machine, brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.

44

A41073

COVER

INSULATION - cover, brush holder

1шт.

45

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - machine, #10-24 x 3/8"

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

- #10 NF hex, jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

- hex 1/4"-28

2шт.

55

A44543

REGULATOR

ASSY - voltage (Replaces A42098)

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - machine, regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

59

A42267

DRIVE

PULLEY - drive, alternator

1шт.
