(0110) - A145555 STARTER, USED TRACTOR SERIAL NUMBERS 8814501 TO 8817385

Запчасти Case IH 1070 (0110) - A145555 STARTER, USED TRACTOR SERIAL NUMBERS 8814501 TO 8817385 (04) - ELECTRICAL SYSTEMS

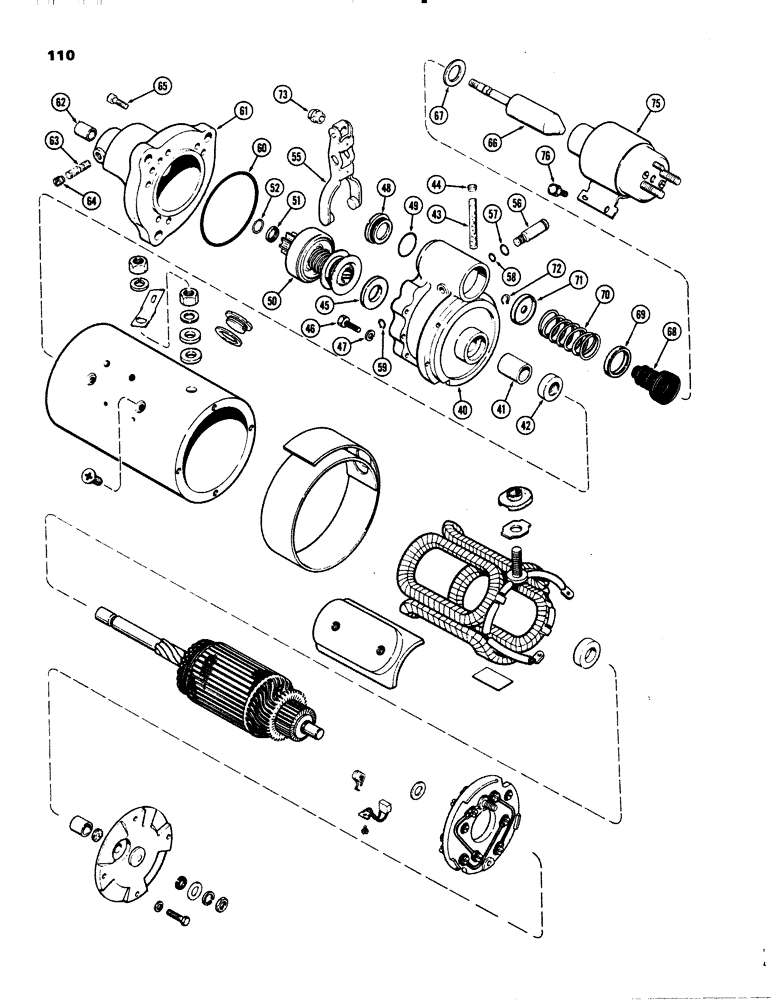

Схема запчастей Case IH 1070 - (0110) - A145555 STARTER, USED TRACTOR SERIAL NUMBERS 8814501 TO 8817385 (04) - ELECTRICAL SYSTEMS
55
56
52
49
60
57
73
63
71
64
59
48
50
72
61
43
70
47
51
75
46
41
42
65
66
69
58
67
40
76
44
45
68
62
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A145555

STARTING MOTOR

STARTER ASSY - (Continued from Fig. 108)

1шт.

40

A43859

HOUSING

ASSY - shift lever, Includes: Ref. 41 - 45

1шт.

41

A40944

BUSHING

- 3/4 x 7/8 x 3/4"

1шт.

42

A25407

OIL SEAL

- oil, 3/4 x 1-3/8 x 13/32"

1шт.

43

A41417

WICK

- oil

1шт.

44

221-1849

PLUG

- 1/8" hex socket head, pipe

1шт.

45

R15043

WASHER

- brake, 25/32 x 2 x 3/32"

1шт.

46

D32484

SCREW,Hex, 1/4" - 28 x 1"

- lever housing attaching, 1/4 x 1" NF hex

5шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

48

R21587

PLUG

- inspection, lever housing

1шт.

49

A41924

GASKET

- plug, 1-23/64 x 1-9/16 x 3/32"

1шт.

50

A47106

DRIVE

ASSY - clutch

1шт.

51

R15049

COLLAR

- pinion stop

1шт.

52

R15048

RING

- retainer, pinion stop

1шт.

55

A43852

LEVER

SHIFT LEVER ASSY

1шт.

56

A43851

SHAFT

- shift lever

1шт.

57

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

- 23/64 x 33/64 x 1/16"

1шт.

58

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

- 15/64 x 25/64 x 1/16"

1шт.

59

A40422

RING

- snap, shift lever attaching pin

1шт.

60

A43854

O-RING,3.237" ID x 0.106" THK

- lever housing to drive housing (replaces A41243)

1шт.

61

A43858

HOUSING

ASSY - drive, Includes: Ref. 62 - 64

1шт.

62

A40868

BUSHING

- 9/16 x 3/4 x 3/4"

1шт.

63

R15023

WICK

- oil

1шт.

64

221-1849

PLUG

- 1/8" hex socket head, pipe

1шт.

65

A47141

SCREW,Hex, 1/4" - 28 x 7/8"

- drive housing attaching, 1/4 x 7/8" NF socket head cap

6шт.

66

A43857

PLUNGER

ASSY

1шт.

67

A41922

WASHER

- 53/64 x 1-3/8 x 1/32"

1шт.

68

A42308

BOOT

- plunger

1шт.

69

A43380

BACK-UP RING

RETAINER - spring, w/1-13/64" hole

1шт.

70

A41242

SPRING

- shift lever, 1-3/8" OD x 2-25/32" long

1шт.

71

A43419

SEAT

RETAINER - spring, w/13/32" hole

1шт.

72

A40422

RING

- snap, plunger spring retainer

1шт.

73

A43856

NUT

- plunger rod guide adjusting

1шт.

75

A44817

SOLENOID

ASSY - (See Fig. 120)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- 1/4 x 23/64" NC hex

4шт.

Выбрано товаров: 35
