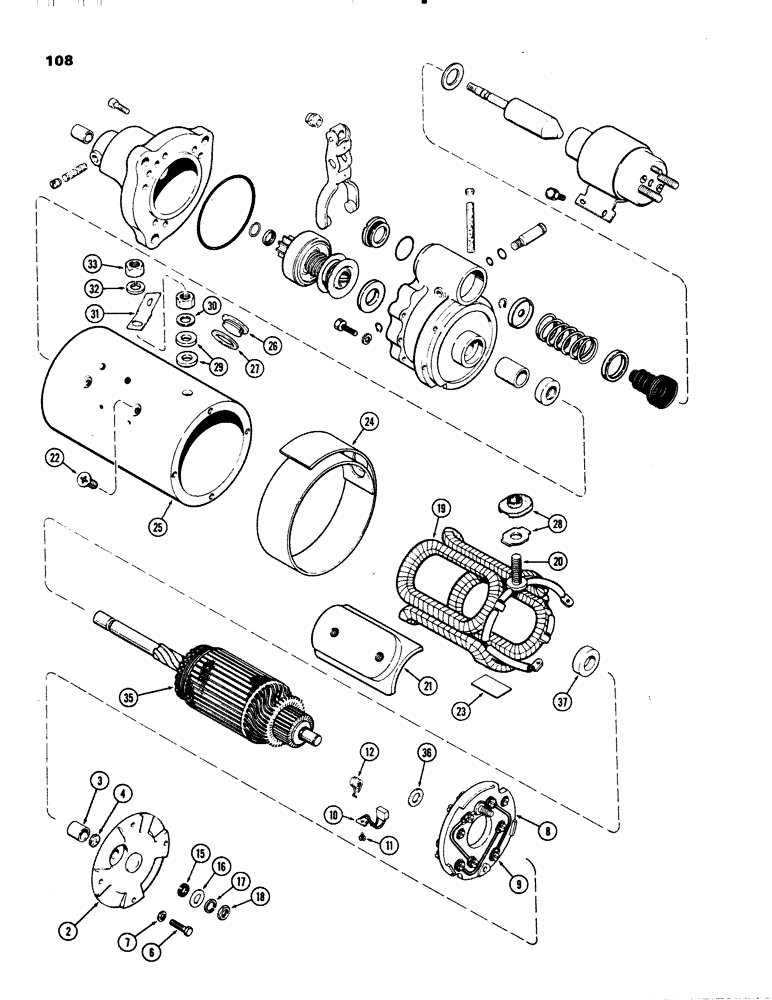

Запчасти Case IH 1070 (0108) - A145555 STARTER, USED TRACTOR SERIAL NUMBER 8814501 TO 8817385 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A145555
STARTING MOTOR
STARTER ASSY - (Delco #1113478) (Order A149056), Includes: Ref. 2 - 76
1шт.
2
A45365
FRAME
HOUSING ASSY - shift lever, Includes: Ref. 3 and 4
1шт.
3
A45152
BUSHING
- frame, 35/64 x 11/16 x 57/64"
1шт.
4
A47133
WICK
- oil
1шт.
6
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
4шт.
7
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
8
A43850
PLATE
BRUSH PLATE ASSY
1шт.
9
A43847
SCREW,3/8" - 32 x 1/2"
- brush plate attaching, w/washer
1шт.
10
A40891
BRUSH, COMMUTATOR
BRUSH ASSY
4шт.
11
174-211
SCREW,Sl Rnd Hd, #8 - 32 x 5/16"
- brush attaching, #8 x 5/16" round head, machine
4шт.
12
A42333
SPRING
- brush
4шт.
15
A42085
BUSHING
- commutator end terminal
1шт.
16
R15013
WASHER
- 3/8 x 11/16 x 1/16"
1шт.
17
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
18
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
19
A42332
COIL
FIELD COIL ASSY - (4 coils), Includes: Ref. 20
1шт.
20
A40896
STUD
- terminal, 1/2" NC x 2-1/8" special
1шт.
21
R15115
SHOE
- pole
4шт.
22
A42127
SCREW,3/8" - 24 x 0.20"
- pole shoe, 3/8 x 3/16" NF pan head, Phillips
8шт.
23
A42327
INSULATOR
INSULATION - field coil, 1-13/16 x 2 x 1/64"
2шт.
24
A42342
INSULATOR
- field coil
1шт.
25
NSS
NOT SOLD SEPARAT
FRAME - field
1шт.
26
R21587
PLUG
- inspection, commutator end
1шт.
27
A41924
GASKET
- plug, 1-23/64 x 1-9/16 x 3/32"
1шт.
28
A41925
BUSHING
PACKAGE - field terminal stud
1шт.
29
D30005
INSULATOR
WASHER - insulator, terminal stud, 33/64 x 1 x 3/32"
2шт.
30
D30006
WASHER
- 33/64 x 7/8 x 1/32"
1шт.
31
NLS
NO LONGER SERVICED
CONNECTOR - solenoid
1шт.
32
192-113
LOCK WASHER,1/2"
WASHER - lock, 1/2"
1шт.
33
129-145
JAM NUT,Jam, 1/2"-13, G5
2шт.
35
A43855
ARMATURE
1шт.
36
A41917
WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk
- armature spacer, commutator end
1шт.
37
A43853
BUSHING
SPACER - armature, drive end
1шт.
Выбрано товаров: 33
