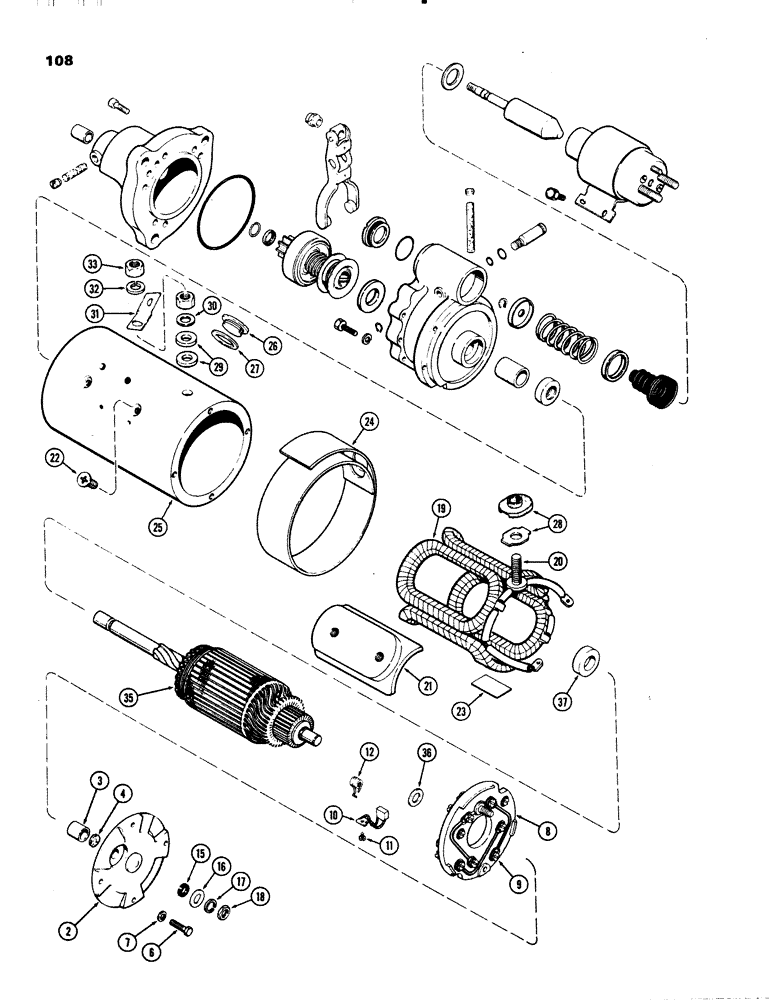

Запчасти Case IH 1070 (0106) - A149056 STARTER, 1ST USED TRAC SERIAL NUMBER 8817385 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A149056
STARTING MOTOR
STARTER ASSY - (Continued from Fig. 104)
1шт.
40
A43859
HOUSING
ASSY - shift lever, Includes: Ref. 41 - 45
1шт.
41
A40944
BUSHING
- 3/4 x 7/8 x 3/4"
1шт.
42
A25407
OIL SEAL
- oil, 3/4 x 1-3/8 x 3/32"
1шт.
43
R15023
WICK
- oil
1шт.
44
221-1849
PLUG
- 1/8" hex socket head pipe
1шт.
45
R15043
WASHER
- brake, 25/32 x 2 x 3/32"
1шт.
46
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
5шт.
47
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
48
R21587
PLUG
- inspection, lever housing
1шт.
49
A41924
GASKET
- plug
1шт.
50
A47178
DRIVE
ASSY - clutch
1шт.
51
R15049
COLLAR
- pinion stop
1шт.
52
R15048
RING
- retainer, pinion stop
1шт.
55
A43852
LEVER
SHAFT LEVER ASSY
1шт.
56
A43851
SHAFT
- shift lever
1шт.
57
R21573
O-RING,0.369" ID x 0.515" OD x 0.073"
- 23/64 x 33/64 x 1/16"
1шт.
58
R21574
O-RING,0.244" ID x 0.391" OD x 0.073"
- 15/64 x 25/64 x 1/16"
1шт.
59
G46146
SNAP RING,#37, Ext
Ring, Snap, , shift lever attaching pin #37, Ext
1шт.
60
A43854
O-RING,3.237" ID x 0.106" THK
- lever housing to drive housing
1шт.
61
A43858
HOUSING
ASSY - drive, Includes: Ref. 62 - 64
1шт.
62
A40868
BUSHING
- 9/16 x 3/4 x 3/4"
1шт.
63
R15023
WICK
- oil
1шт.
64
221-1849
PLUG
- 1/8" hex socket head pipe
1шт.
65
62-414
HEX SOC SCREW,1/4"-28 x 7/8"
SCREW - 1/4 x 7/8" NF socket head cap
6шт.
66
A43857
PLUNGER
1шт.
67
A41922
WASHER
- 53/64 x 1-3/8 x 1/32"
1шт.
68
A42308
BOOT
- plunger
1шт.
69
A43380
BACK-UP RING
RETAINER - spring, with 1-13/64" hole
1шт.
70
A41242
SPRING
- 1-3/8" OD x 2-25/32" long
1шт.
71
A43419
SEAT
RETAINER - spring, with 13/32" hole
1шт.
72
G46146
SNAP RING,#37, Ext
Ring, Snap, , plunger spring retainer #37, Ext
1шт.
73
A43856
NUT
- plunger rod, guide adjusting
1шт.
75
A44817
SOLENOID
ASSY - (See Fig. 120)
1шт.
76
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
- 1/4 x 23/64" NC hex
4шт.
Выбрано товаров: 35
