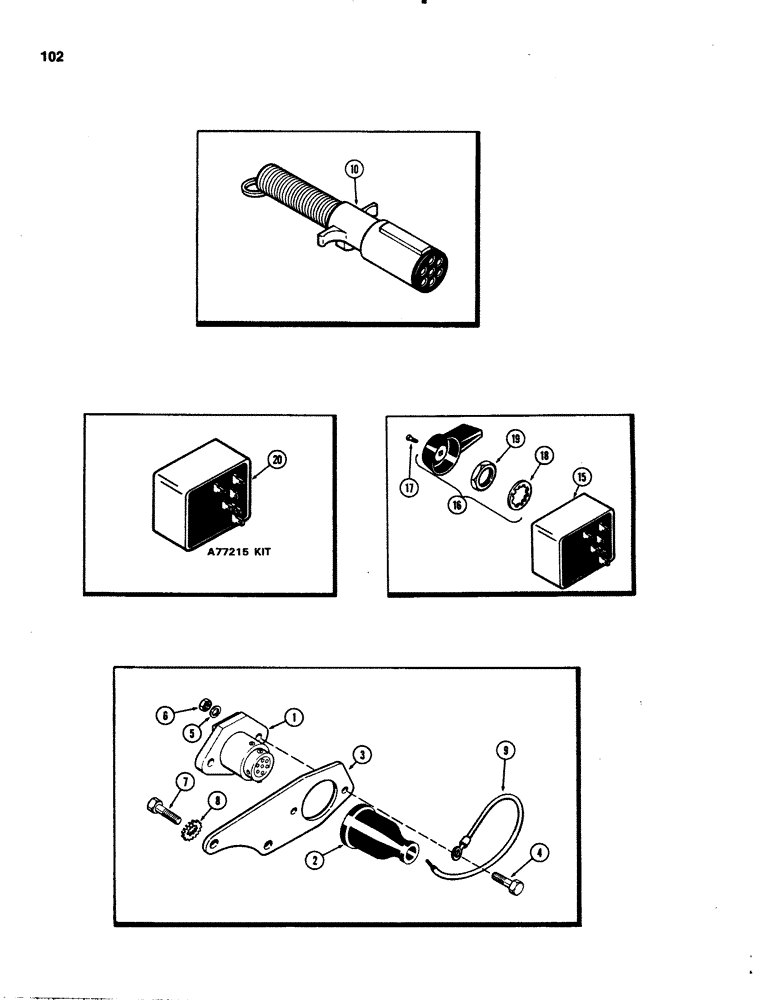

Запчасти Case IH 1070 (0102) - ELECTRICAL EQUIPMENT MOUNTING (04) - ELECTRICAL SYSTEMS

A66932

OUTLET

ATTACHMENT - 7 point auxiliary socket, Includes: Ref. 1 - 9

1шт.

A66932 Attachment is Female

1шт.

1

A38739

CONNECTOR, ELEC

CONNECTOR - 7 point

1шт.

2

A38740

GUARD

BOOT - connector

1шт.

3

A66891

BRACKET - connector mounting

1шт.

4

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

8

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" internal/external

2шт.

9

A66893

ELECTRICAL WIRE

WIRE - auxiliary outlet ground

1шт.

A67189

CONNECTOR, ELEC

ATTACHMENT - 7 point auxiliary plug, Includes: Ref. 10

1шт.

A67189 Attachment is Male

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - 7 point, w/cable guard

1шт.

15

A77184

SWITCH

- comb dual-rate flasher & turn signal

1шт.

16

A77185

KIT

PACKAGE - flasher & turn signal switch handle, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - #5-40 x 3/8" pan head sems

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - Shakeproof, 3/4" internal

1шт.

19

NSS

NOT SOLD SEPARAT

NUT - 3/4" NF hex

1шт.

20

A77215

SIGNAL

KIT - turn signal switch (Special for California to replace standard switch to eliminate flasher)

1шт.
