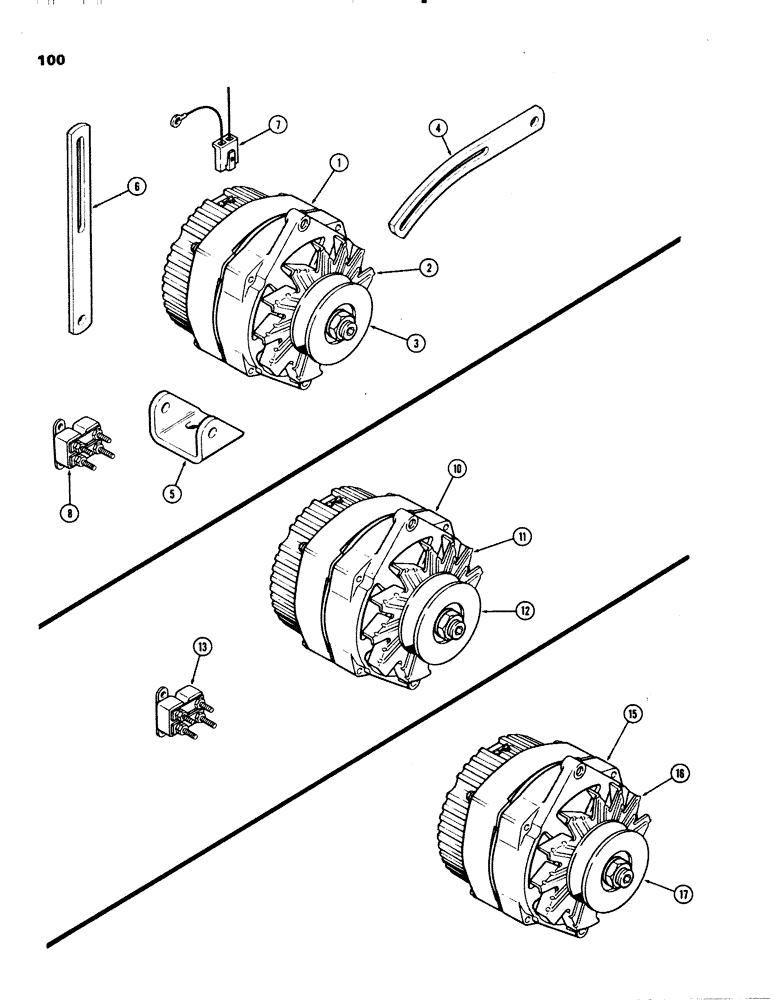

Запчасти Case IH 1070 (0100) - ALTERNATOR CONVERSION KIT, TO CONVERT A 55 AMP PRESTOLITE ALTERNATOR TO A 72 AMP DELCO ALTERNATOR (04) - ELECTRICAL SYSTEMS

A147238

CONVERSION KIT

KIT - alternator conversion, Includes: Ref. 1 - 8

1шт.

1

A47044

ALTERNATOR

72 amp (See Fig. 124)

1шт.

2

A43384

FAN

alternator

1шт.

3

A45231

PULLEY

single groove

1шт.

A45231, SINGLE GROOVE PULLEY - 3.221 +/- .025 DIAMETER HUB OD 1.12 HUB ID AFTER PLATING .669 - .6720".

1шт.

4

A34705

ADJUSTER

STRAP -

1шт.

5

A38492

BRACKET

mounting

1шт.

6

A59098

STRAP

rear support

1шт.

7

A141700

WIRE HARNESS,Adaptor

engine harness

1шт.

8

A147004

BREAKER

circuit (100 AMP)

1шт.

A147239

KIT

alternator conversion A 55 APM DELCO TO A 72 AMP DELCO, Includes: Ref. 10 - 13

1шт.

10

A47044

ALTERNATOR

72 amp (See Fig. 125), convert to a 55 delco

1шт.

11

A43384

FAN

convert a 55 delco alternator to 72 amp delco alternator

1шт.

12

A45231

PULLEY

single groove, convert a 55 delco alternator to 72 amp alternator

1шт.

13

A147004

BREAKER

circuit (100 amp), convert a 55 delco alternator to 72 amp alternator

1шт.

A147240

KIT

alternator coversion, convert a 61 delco to 72 amp delco, Includes: Ref. 15 - 17

1шт.

15

A47044

ALTERNATOR

72 amp (See Fig. 124), convert to a 61 delco

1шт.

16

A43384

FAN

alternator, convert a 61delco to 72 amp delco

1шт.

17

A45231

PULLEY

single groove, convert a 61delco alternator to 72 amp delco alternator

1шт.
