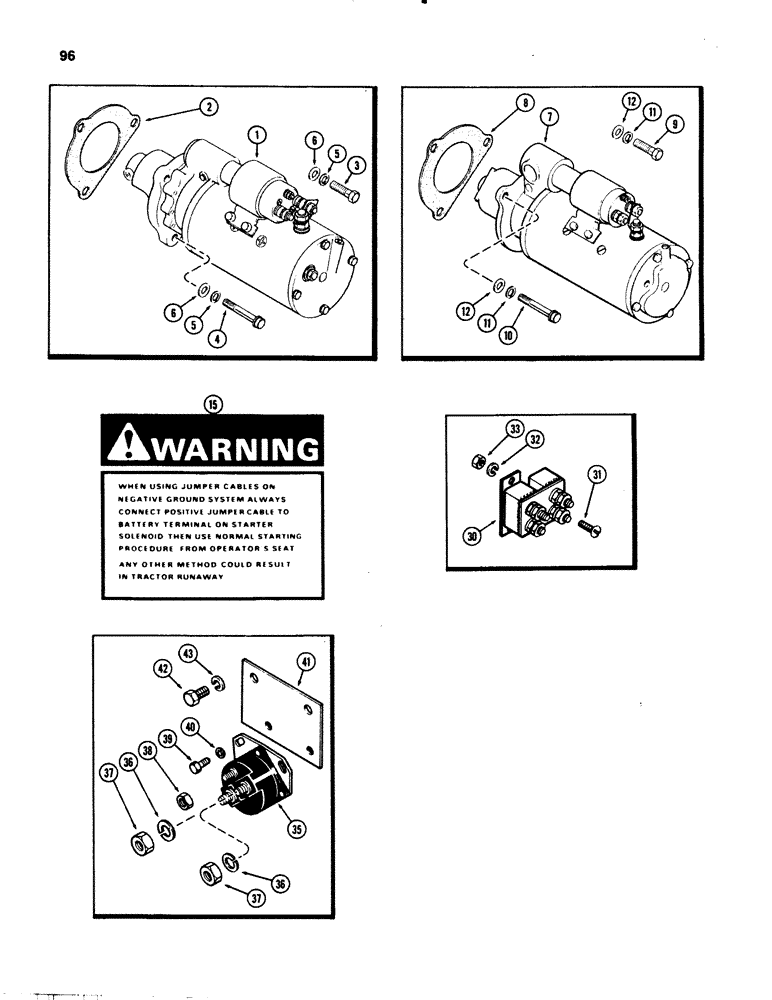

Запчасти Case IH 1070 (0096) - STARTER MOUNTING, 451B DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTING MOTOR - (See Fig. 104 and 116) (Used trac. ser. no. 8696753 thru 8817385 and after)

1шт.

2

A27933

GASKET

- starting motor (Used with power shift)

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

BOLT - 1/2 x 1-3/4" N.C. hex. Poly-lok

2шт.

4

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" N.C. Ferry hd. cap

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

L30674

WASHER

- 1/2 x 1 x 1/8"

3шт.

7

REF

INSTRUCTION

STARTING MOTOR - (See Fig. 116 and 118) (Used prior to trac. ser. no. 8696753)

1шт.

8

A27933

GASKET

- starting motor (w/power shift)

1шт.

9

113-483

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex., nylock

2шт.

10

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" N.C. Ferry head cap

1шт.

11

92-8

LOCK WASHER,1/2"

3шт.

12

L30674

WASHER

- 1/2 x 1 x 1/8"

3шт.

15

321-2788

DECAL

- warning

1шт.

30

A147004

BREAKER

- circuit, 100 amp (Used with 61 amp & 72 amp alternators)

1шт.

30

A59704

BREAKER

- circuit, 80 amp (Used with 55 amp alternator)

1шт.

31

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8 x 3/8" N.C. round head

2шт.

32

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

33

129-16

NUT,#8-32

2шт.

35

A39079

SOLENOID

- manifold heater

1шт.

36

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

37

9635082

NUT,5/16" - 18, Gr 5

2шт.

38

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. keps

1шт.

39

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

A60880

PLATE - heater solenoid to engine block

1шт.

42

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

43

92-5

LOCK WASHER,5/16"

2шт.
