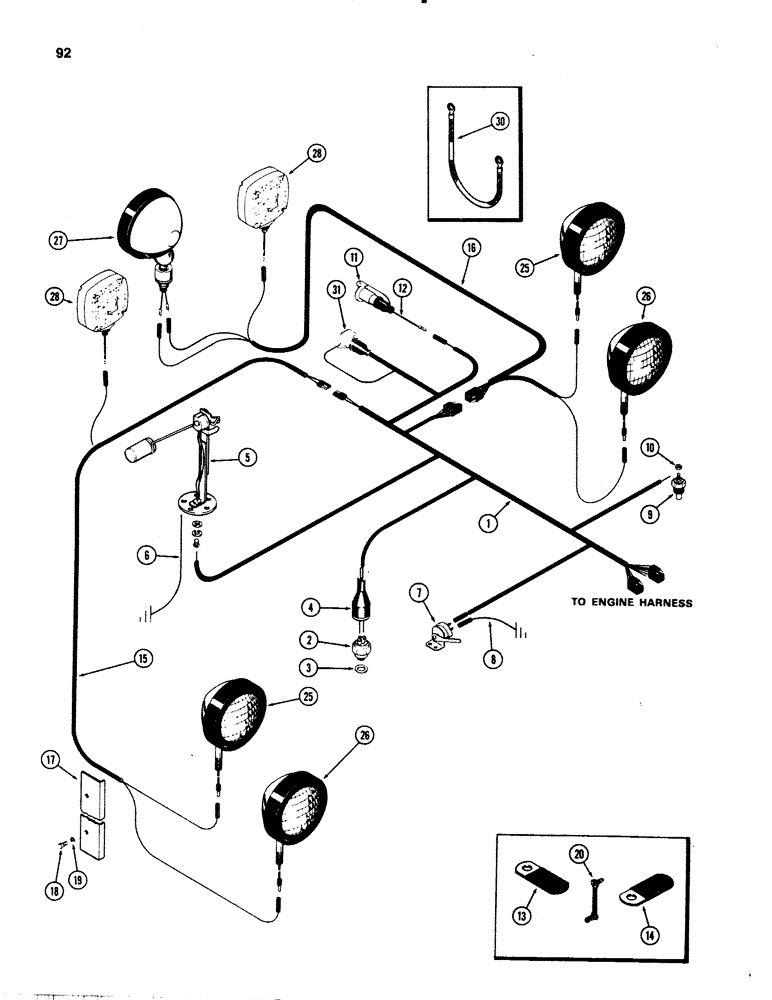

Запчасти Case IH 1070 (0092) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A66899
HARNESS
- transmission wire (Used w/turn signals and 7 point auxiliary outlet)
1шт.
1
A62413
HARNESS
- transmission wirer (Used w/o turn signals or 7 point auxiliary outlet)
1шт.
2
A20990
SWITCH
- safety, neutral start
1шт.
3
G49402
SHIM,.010" Thk
Neutral start switch .010" Thk
1шт.
4
A61028
BOOT
- neutral start switch
1шт.
5
A62092
UNIT
- fuel sending
1шт.
6
A59710
ELECTRICAL WIRE
WIRE - fuel gauge sender ground
1шт.
7
A33977
SWITCH
- hand brake warning
1шт.
8
A59711
ELECTRICAL WIRE
WIRE - hand brake switch ground
1шт.
9
A21462
SENDER UNIT
UNIT - transmission temperature sending
1шт.
10
129-661
NUT
- #10 NF hex, brass
1шт.
11
REF
INSTRUCTION
SOCKET - auxiliary outlet (See Fig. 148)
1шт.
12
A65060
ELECTRICAL WIRE
WIRE - auxiliary outlet
1шт.
13
A37179
CLIP
- transmission sending wire
1шт.
14
A22880
CLIP
- transmission wire harness & fuel sending unit
1шт.
15
A66910
HARNESS - fender wire, RH (w/turn signal)
1шт.
15
A62412
HARNESS
- fender wire, R.H. (w/o turn signal)
1шт.
16
A66917
HARNESS
- fender wire, LH (w/turn signal)
1шт.
16
A59709
HARNESS
- fender wire, LH (w/o turn signal)
1шт.
17
A59720
SHIELD - fender wire harness, LH (for 12" fender) (26-13/16" long)
1шт.
17
A59721
SHIELD - fender wire harness, RH (for 12" fender) (26-13/16" long)
1шт.
17
A60893
GUARD
SHIELD - fender wire harness, RH & LH (for 24" fender) (14-5/16" long)
2шт.
18
13-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
4шт.
19
92-5
LOCK WASHER,5/16"
4шт.
20
A62547
CLAMP
- fender, Serial Range: wires-fender
7шт.
25
REF
INSTRUCTION
LAMP - head (See Fig. 144)
2шт.
26
REF
INSTRUCTION
LAMP - front cultivator (See Fig. 146)
2шт.
27
A59703
LAMP
- rear flood & tail (See Fig. 148)
1шт.
28
REF
INSTRUCTION
LAMP - flasher (See Fig. 140)
2шт.
30
A64704
STRAP
- ground, firewall (20" long)
1шт.
31
A38739
CONNECTOR, ELEC
CONNECTOR - 7 point auxiliary outlet (See Fig. 102 for attachment)
1шт.
Выбрано товаров: 31
