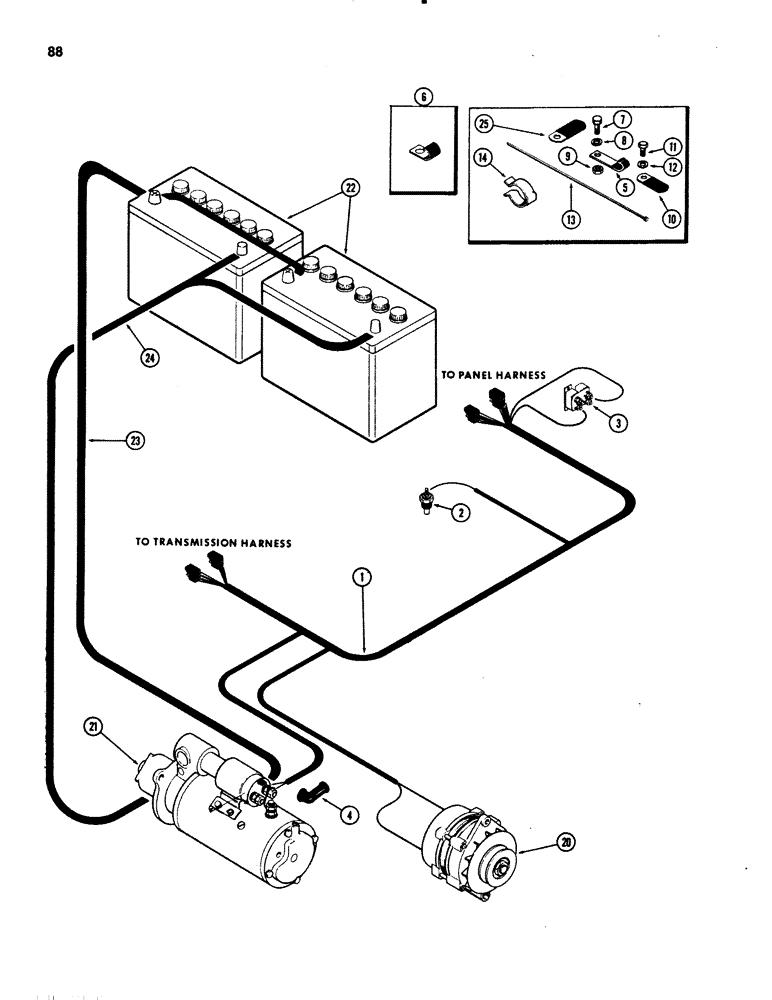

Запчасти Case IH 1070 (0088) - ENGINE HARNESS, 1ST USED ENGINE SERIAL NUMBER 2529467 (04) - ELECTRICAL SYSTEMS

1

A135743

HARNESS

- engine wire (Used w/Delco alternator w/turn signal)

1шт.

1

A135744

HARNESS

- engine wire (Used w/Delco alternator w/o turn signal)

1шт.

1

A65986

HARNESS

- engine wire (Used w/Prestolite alternator w/o turn signal)

1шт.

2

A61787

TRANSMITTER

UNIT - engine temp. sending

1шт.

3

REF

INSTRUCTION

BREAKER - circuit (See Fig. 96)

1шт.

4

A21753

CAP

- starter positive terminal

1шт.

5

A143668

CLIP

- harness (1st used trac. ser. no. 8802211)

1шт.

6

A59718

CLAMP

CLIP - harness (Used prior to trac. ser. no. 8802211)

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

A37179

CLIP

- fender & alternator wires

1шт.

11

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - engine wire harness

1шт.

14

A60894

CLIP

- harness to breather tube

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSY. - (See Figure 98)

1шт.

21

REF

INSTRUCTION

STARTING MOTOR - (See Figure 96)

1шт.

22

A38411

DRY BATTERY

- 12 volt

2шт.

23

A65817

CABLE

- battery, positive

1шт.

24

A59728

CABLE

- battery, negative (ground)

1шт.

25

A22883

CLIP

- battery cable

1шт.
