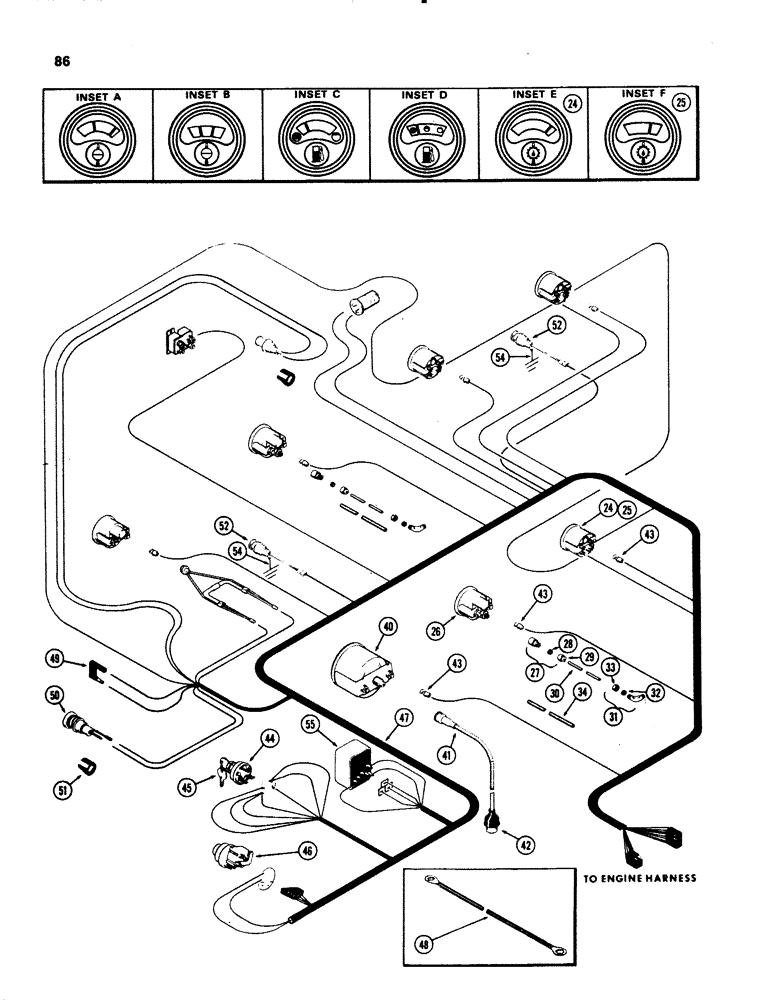

Запчасти Case IH 1070 (0086) - INSTRUMENTS AND WIRING (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
24
A143678
ELECTRICAL GAUGE
GAUGE - trans. oil temp. (Replaces A76469) (See Inset E)
1шт.
(2 Post)
1шт.
25
A64491
ELECTRICAL GAUGE
GAUGE - trans. oil temp. (Order A143678) (See Inset F)
1шт.
(4 Post)
1шт.
26
A59684
ELECTRICAL GAUGE
GAUGE - transmission pressure
1шт.
27
FITTING,3/8" - 24 JIC x 1/8" NPT
CONNECTOR - 1/8" tube, 1/8" PT, Includes: Ref. 28 and 29
1шт.
28
222-100
TUBE NUT,1/8" Tube
SLEEVE - for 1/8" Tube
1шт.
29
222-110
TUBE NUT,3/8"-24
NUT - for 1/8" tube
1шт.
30
A59685
TUBE
- transmission pressure gauge
1шт.
31
222-40
ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF
- 90 degree, 1/8" tube x 1/8" PT, Includes: Ref. 32 and 33
1шт.
32
222-100
TUBE NUT,1/8" Tube
SLEEVE - for 1/8" Tube
1шт.
33
222-110
TUBE NUT,3/8"-24
NUT - for 1/8" tube
1шт.
34
A59686
LOOM
- transmission pressure gauge tube
1шт.
40
A62600
TACHOMETER
ASSY
1шт.
41
A59691
CABLE
- tachometer drive, Includes: Ref. 42
1шт.
42
A24523
KIT
- tachometer cable repair
1шт.
43
A14553
BULB
- gauges
1шт.
44
A59693
SWITCH
ASSY - ignition & starting
1шт.
45
A60319
KEY
- ignition (Set of 2)
1шт.
46
REF
INSTRUCTION
SWITCH - light (See Fig. 148)
1шт.
47
A135869
HARNESS
- instrument panel wire (Used w/turn signals)
1шт.
47
A65987
HARNESS
- instrument panel wire (Used w/o turn signal) (1st used eng ser no. 2529467)
1шт.
47
A59705
HARNESS
- instrument panel wire (Used prior to eng ser no. 2529467)
1шт.
48
A60882
STRAP
- instrument panel grounding
1шт.
49
A61504
DIODE
LEAD DIODE - 180 degree connection
1шт.
50
A61505
LAMP
- oil filter warning
1шт.
51
A62677
GUARD
SHROUD - oil filter warning lamp
1шт.
52
A77188
LAMP
ASSY - right & left turn indicator
2шт.
A44797
BULB
- lamp (green)
1шт.
54
A66892
ELECTRICAL WIRE
WIRE - signal lamp ground
2шт.
55
A77184
SWITCH
- combination dual-rate flasher & turn signal (See Fig. 102)
1шт.
Выбрано товаров: 32
