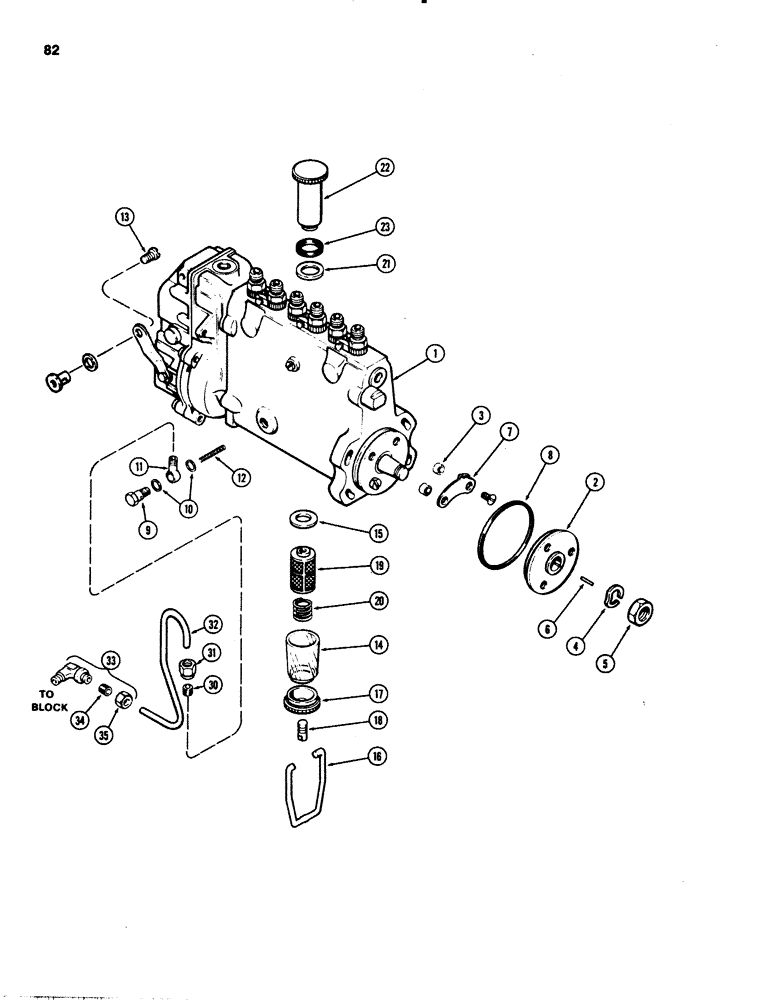

Запчасти Case IH 1070 (0082) - FUEL INJECTION PUMP, 451B DIESEL ENGINE, WITH LUBE LINE ON ENGINE SIDE OF PUMP (03) - FUEL SYSTEM

1

A62571

FUEL INJECTION PUMP

PUMP ASSY - fuel injection (2100 RPM) Bosch #PES6A85C420LS2264 Governor #EP/RSV375-1050A2B, Includes: Ref. 2 - 23

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- pump mounting, 2-61/64 x 3-3/16 x 1/8"

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

A44259

SCREW

- pump stop control (Replaces A42829)

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - retaining

1шт.

18

A43349

STUD

- bailnut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- port, copper gasket

1шт.

22

A43343

CARTRIDGE

PRIMER ASSY - hand pump, Includes: Ref. 23

1шт.

23

A45342

GASKET

- primer pump (rubber) (Replaces A44761)

1шт.

30

222-102

SLEEVE,1/4" Tube

Oil gallery to pump 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - oil gallery to pump

1шт.

32

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

33

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" tube x 1/4" PT, 90 degree, Includes: Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
