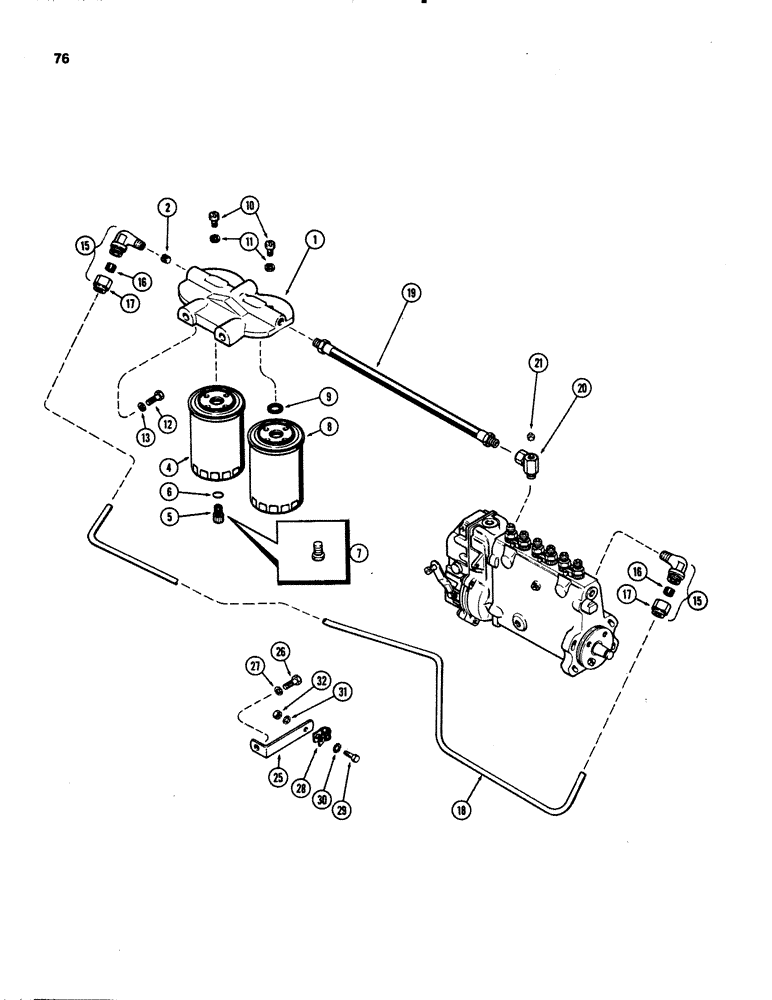

Запчасти Case IH 1070 (0076) - FUEL INJECTION FILTER SYSTEM, 451B DIESEL ENGINE (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY - fuel filter, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8" PT hex socket head

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - filter replacement, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 5 - 7

1шт.

5

G49080

PLUG

- plastic (3/8" NF 12 pt head)

1шт.

6

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- plastic plug (3/8 x 9/16 x 3/32")

1шт.

7

221-1661

PLUG

- 1/8" PT hex head (Metal)

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 9

1шт.

9

A42315

GASKET

-, Serial Range: filter-head

1шт.

10

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- filter head bleed

2шт.

11

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw (Replaces A20662 & A66619)

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY - 1/4" PT, 5/16" tube, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

18

A62342

TUBE

- pump to 1st stage filter

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter head to pump (Replaces A58716)

1шт.

20

A20539

FITTING

UNION - switch (in injection pump)

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT square head

1шт.

25

A64856

BRACKET

- tubes to block (Replaces A58718)

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - for 5/16" tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.
