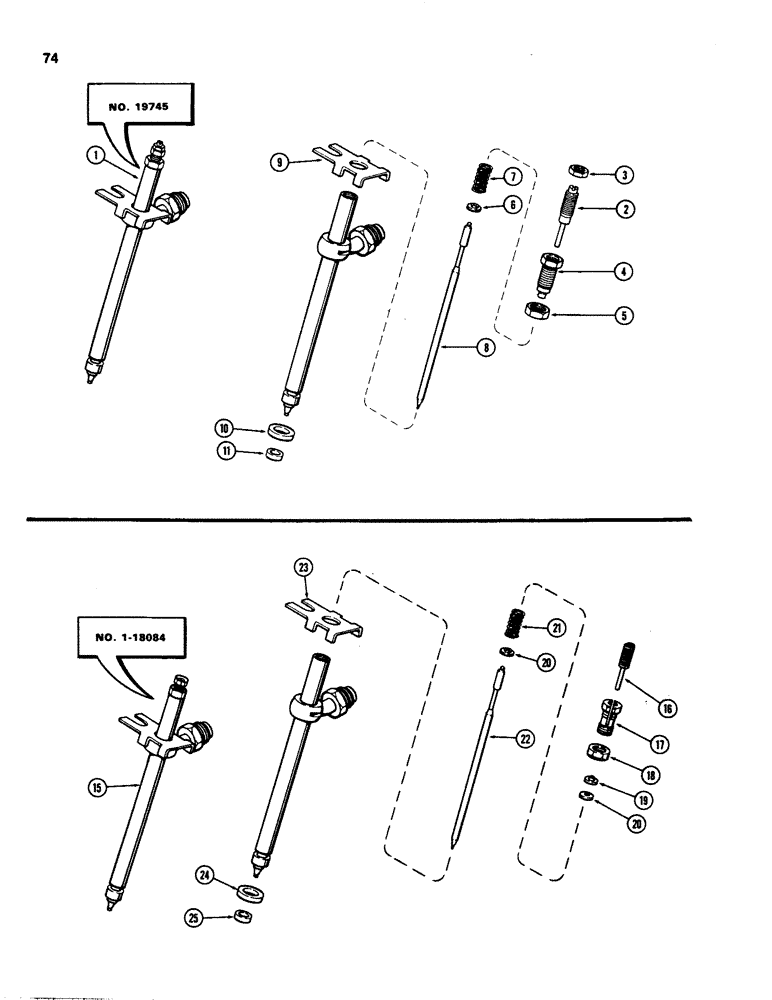

Запчасти Case IH 1070 (0074) - FUEL INJECTION NOZZLE, 451B DSL ENG, 1ST USED ENG SN. 2504221 (03) - FUEL SYSTEM

1

A62809

NOZZLE CAP

NOZZLE ASSY - fuel injection (Supplier's No. 19745 stamped on body) (Color coded red) (See Fig 72) (Order A138322), Includes: Ref. 2 - 11

6шт.

Whenever nozzle is removed from head, the seal Ref. 11 or 25 & washer Ref. 10 or 24 must be replaced before nozzle is installed back in the head

1шт.

A138322R

REMAN-INJECT NOZZLE

1070 (S/N 8675001 & AFTER) 1ST USED ENG SN. 2504221 (1/69-12/78) REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

3

A43602

NUT

- lock, lift adjusting (#10-56 hex)

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

5

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 hex)

1шт.

6

A44369

SEAT

- spring (Replaces A41401)

1шт.

7

A43601

SPRING

- nozzle pressure (1/2" free length)

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

15

A58694

NOZZLE

ASSY - fuel injection (Supplier's No. 1-18084 stamped on body) (Order A138322), Includes: Ref. 16 - 25, used prior to engine serial no. 2504221

6шт.

Whenever nozzle is removed from head, the seal Ref. 11 or 25 & washer Ref. 10 or 24 must be replaced before nozzle is installed back in the head

1шт.

A138322R

REMAN-INJECT NOZZLE

1070 (S/N 8675001 & AFTER) 1ST USED ENG SN. 2504221 (1/69-12/78) REMAN FOR NEW P/N A58694

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, used prior to engine serial no. 2504221

1шт.

17

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, used prior to engine serial no. 2504221

1шт.

18

A42424

LOCK NUT

- hex, used prior to engine serial no. 2504221

1шт.

19

A41407

WASHER

- ball, used prior to engine serial no. 2504221

1шт.

20

A44369

SEAT

- spring, used prior to engine serial no. 2504221

2шт.

21

A41444

VALVE SPRING

SPRING - nozzle pressure locating (17/32" free length), used prior to engine serial no. 2504221

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - nozzle, used prior to engine serial no. 2504221

1шт.

23

A41768

PLATE

- nozzle locating, used prior to engine serial no. 2504221

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, used prior to engine serial no. 2504221

1шт.

25

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, used prior to engine serial no. 2504221

1шт.
