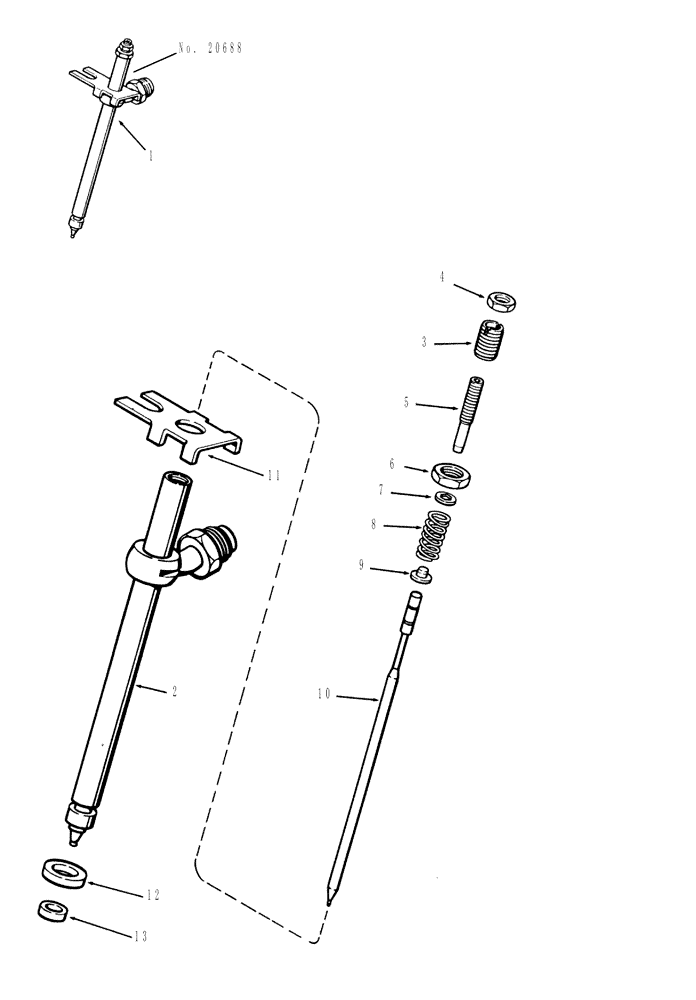

Запчасти Case IH 1070 (0072) - FUEL INJECTION NOZZLE, 451B DIESEL ENGINE (03) - FUEL SYSTEM

1

A138322

NOZZLE CAP

fuel injection (supplier's No. 20668 stamped on body) (color coded red (replaces A62809 & A58694)

6шт.

A138322R

REMAN-INJECT NOZZLE

1070 S/N 8675001 & AFTER (1/69-12/78)

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, nozzle

1шт.

3

A45292

SCREW

pressure adjusting

1шт.

4

A43602

NUT

lock, lift adjusting (#10-56 hex)

1шт.

5

A45293

ADJUSTMENT SCREW

lift

1шт.

6

A42424

LOCK NUT

lock, pressure adjusting (5/16"-48 hex)

1шт.

7

A45632

SHIM

pressure spring, upper (replaces A45291)

1шт.

8

A45290

SPRING

pressure adjusting, 21/32" free length

1шт.

9

A45289

SEAT

pressure adjusting spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE, nozzle

1шт.

11

A41768

PLATE

nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

plain

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop

1шт.
