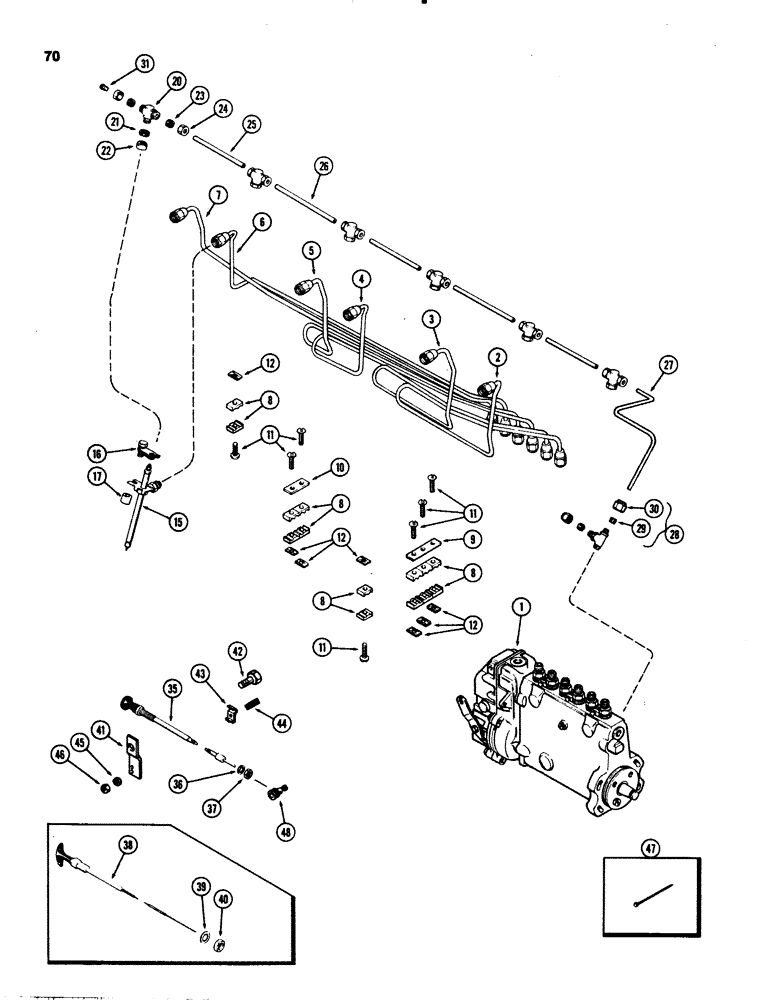

Запчасти Case IH 1070 (0070) - FUEL INJECTION SYSTEM, 451B DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY - fuel injection (See Figures 80 & 82)

1шт.

2

A58702

TUBE

ASSY - fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

ASSY - fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

ASSY - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSY - fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSY - fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSY - fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (6 line)

1шт.

10

A58710

PLATE

- injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- #10 x 1" NC hex sltd head

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat, Tinnerman

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY - fuel injection (See Figures 72 & 74)

6шт.

16

A58695

CLAMP

ASSY - nozzle

6шт.

17

A58696

SPACER

- nozzle clamp

6шт.

20

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP ASSY - nozzle leak-off

6шт.

21

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- cap

6шт.

22

A58961

NUT

- cap

6шт.

23

222-102

SLEEVE,1/4" Tube

12шт.

24

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

12шт.

25

A58965

TUBE

- leak-off (4-5/8" long)

3шт.

26

A58964

TUBE

- leak-off (5-5/8" long)

2шт.

27

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

28

A59097

VALVE

- leak-off check (in injection pump), Includes: Ref. 29 and 30

1шт.

29

222-102

SLEEVE,1/4" Tube

2шт.

30

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

31

47-47

RIVET,FH, 1/4" x 7/16"

- leak-off tee, 1/4 x 7/16" flat head

1шт.

35

A64849

STOP

CONTROL - flexible stop (1st used trac ser no. 8693001), Includes: Ref. 36 and 37

1шт.

36

193-86

LOCK WASHER,7/16"

WASHER - Shakeproof, internal 7/16"

1шт.

37

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

38

A62113

CONTROL

- flexible stop (Used prior to trac ser no. 8693001), Includes: Ref. 39 and 40

1шт.

39

193-69

WASHER - Shakeproof, 9/16" internal

1шт.

40

129-166

JAM NUT,Jam, 9/16"-18, G5

1шт.

41

A62098

BRACKET

- stop cable mounting

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

43

B51765

CLIP

- cable

1шт.

44

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8 x 1/2" NC round head, slotted

1шт.

45

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

46

129-16

NUT,#8-32

1шт.

47

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - cable (Nylon)

2шт.

48

A59101

PIVOT

- stop control

1шт.
