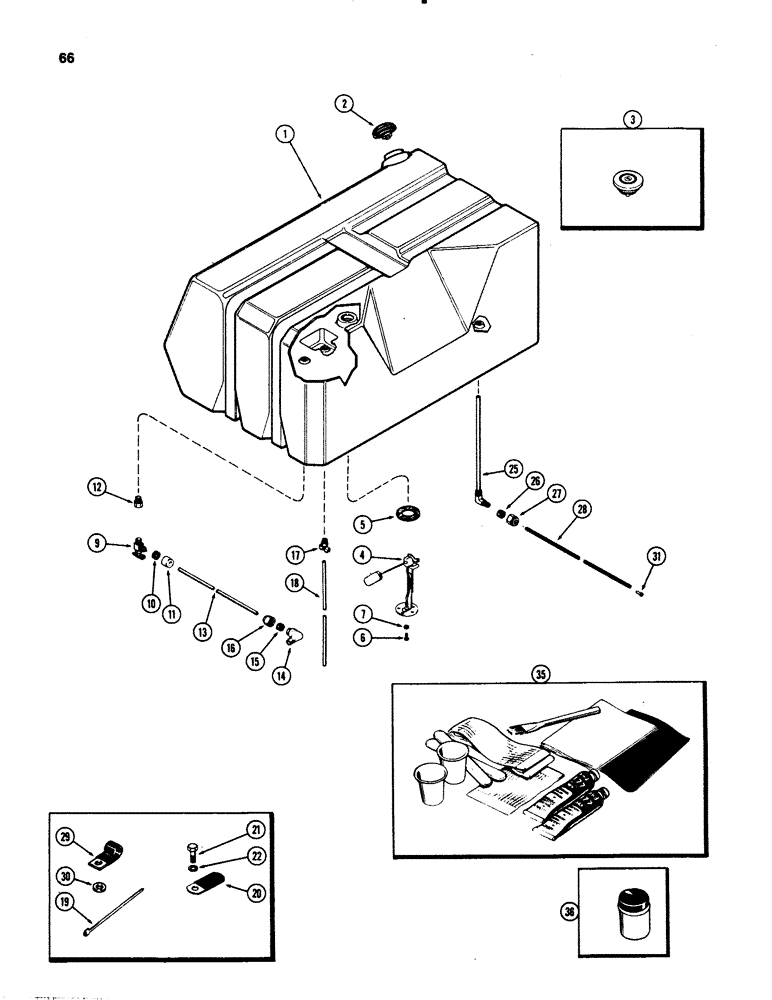

Запчасти Case IH 1070 (0066) - FUEL TANK AND LINES, 451B DIESEL ENGINE, NYLON MATERIAL (03) - FUEL SYSTEM

1

A59490

FUEL TANK

TANK - fuel (Order 1-A143073 tank & 1-A222-5114 elbow & A23656 valve)

1шт.

2

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

3

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A62092

UNIT

- fuel gauge sending

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10 x 7/16" NF round head machine

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

9

217-278

FITTING

VALVE - outlet & shut-off, Includes: Ref. 10 and 11

1шт.

10

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

11

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

12

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- 1/4 x 1/4"

1шт.

13

A62320

TUBE

- tank outlet to engine (Order A143009)

1шт.

14

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW - 90 degree, hand primer pump, Includes: Ref. 15 and 16

1шт.

15

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

16

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

17

217-107

VALVE

- drain (w/ 1/8" PT thread)

1шт.

18

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

2шт.

20

A37179

CLIP

- tube (Used w/A62320 tube)

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

25

A62274

FITTING

PIPE ASSY - fuel tank return port (3/8" PT thread), Includes: Ref. 26 and 27

1шт.

26

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

27

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

28

A60722

TUBE

- injector to return port

1шт.

29

A57061

CLIP

- tube (Used w/A60722 tube)

1шт.

30

195-104

WASHER,3/8"

- clip, 7/16 x 1 x 3/32"

1шт.

31

A141160

INSERT

- nylon tube

1шт.

35

A44265

KIT

- repair, nylon tank (Replaces A42782) (Also order A44266)

1шт.

Nylon tank is identified by 1/8" thread at drain and 3/8" thread at return port.

1шт.

36

A44266

KIT

- adhesive, fuel tank repair

1шт.
