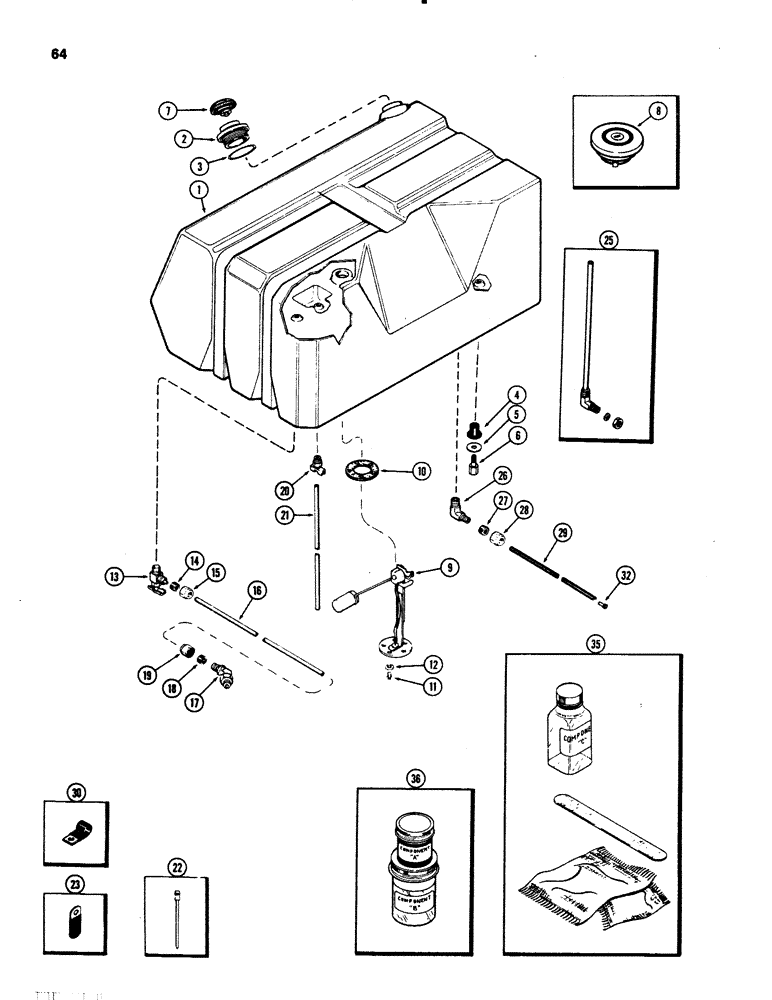

Запчасти Case IH 1070 (0064) - FUEL TANK AND LINES, 451B DIESEL ENGINE, POLYETHELENE MATERIAL (03) - FUEL SYSTEM

1

A143073

FUEL TANK

TANK - fuel (Replaces A66820), Includes: Ref. 2 - 6

1шт.

2

A143074

COLLAR

NECK - fuel tank

1шт.

3

A145752

O-RING,2.85" ID x 0.21"

- 2-55/64 x 3-1/16 x 7/32"

1шт.

4

A143035

NUT,31.75mm OD x 26.97mm L

GROMMET, STUD - fuel tank mounting (replaces A65890)

3шт.

5

A65892

WASHER

- 7/16 x 1-1/4 x 1/16"

3шт.

6

A65890

STUD,3/8" - 16 x 1/4" NPT

FASTENER - stud (replaces A143035)

3шт.

7

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

8

A32120

CAP

- fuel tank filler (w/lock)

1шт.

9

A62092

UNIT

- fuel gauge sending

1шт.

10

A11822

GASKET

- sending unit

1шт.

11

182-554

SCREW - #10 x 9/16" N.F. rd. hd. mach

5шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

13

217-278

FITTING

VALVE - outlet & shut-off, Includes: Ref. 14 and 15

1шт.

14

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

15

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

16

A143009

TUBE

- tank outlet to engine (Replaces A62320)

1шт.

17

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW - 90 degree, hand primer pump, Includes: Ref. 18 and 19

1шт.

18

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

19

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

20

A23656

COCK, DRAIN

VALVE - drain (w/1/4" P.T. thrd.)

1шт.

21

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tube

2шт.

23

A37179

CLIP

- tube (used w/A62320 tube)

1шт.

25

A65893

PIPE

TUBE - fuel tank return port (Order ref 26)

1шт.

26

222-5114

ELBOW,90 Degree, 7/16"-24 x 1/4" NPTF

ASSY. - fuel tank return port (1/4" thrd.), Includes: Ref. 27 and 28

1шт.

27

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

28

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

29

A60722

TUBE

- injector to return port

1шт.

30

A57061

CLIP

- tube (used w/A60722 tube)

1шт.

32

A141160

INSERT

- nylon tube

1шт.

35

A44635

KIT

- repair, polyethylene tank (also order A44636)

1шт.

Polyethylene tank is identified by 1/4" thread at drain and return ports.

1шт.

36

A44636

KIT

- seal, tank repair

1шт.
