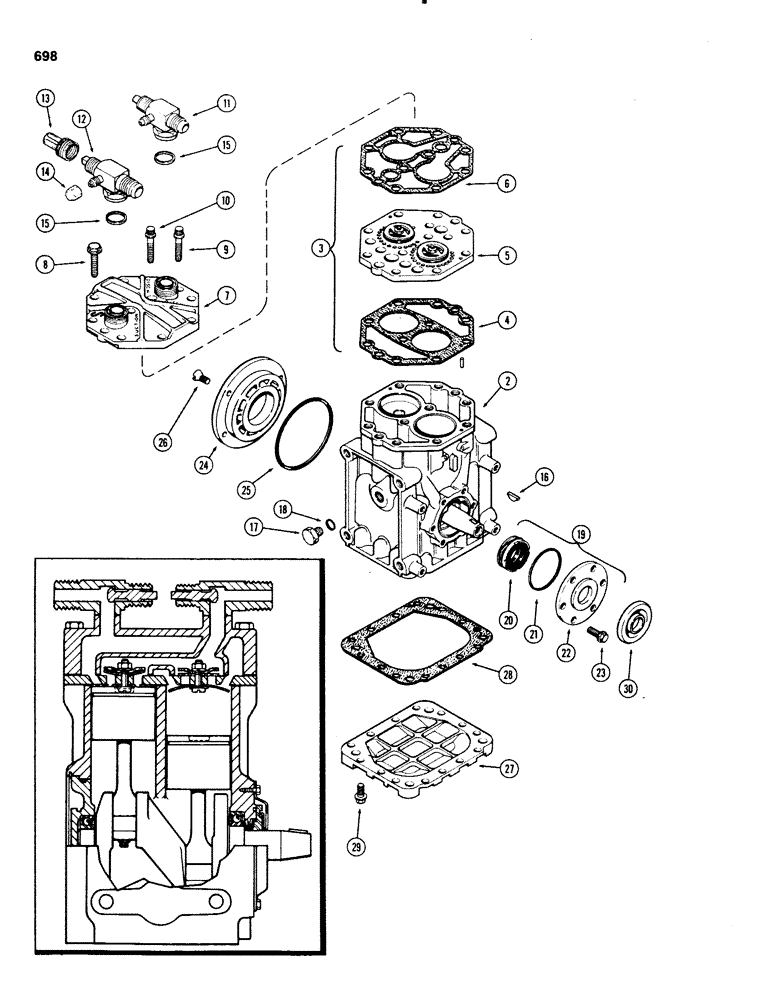

Запчасти Case IH 1070 (0700) - TECUMSEH COMPRESSOR (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A42953
SPARE PART COMPRESSOR ASSY - (Tecumseh #HG1000) (Order A64810), Includes: Ref. 2 - 30
1шт.
417888C93
AIRCOND. COMPRESSOR
Compressor Assy., A/C
1шт.
1924004C2
REMAN-A/C COMPRESSOR
Remanufactured COMPRESSOR
1шт.
1924005C1
CORE-A/C COMPRESSOR
Return Number
1шт.
2
NSS
NOT SOLD SEPARAT
CRANKCASE ASSY, Includes: Ref. 3 - 6
1шт.
3
A42935
PLATE
KIT - valve plate
1шт.
4
NSS
NOT SOLD SEPARAT
GASKET - plate to crankcase (Order A42943)
1шт.
5
NSS
NOT SOLD SEPARAT
PLATE - valve
1шт.
6
NSS
NOT SOLD SEPARAT
GASKET - cylinder head to valve plate (Order A42943)
1шт.
7
NSS
NOT SOLD SEPARAT
CYLINDER HEAD
1шт.
8
114-125
BOLT - 5/16 x 1-3/8" NF hex washer head
8шт.
9
A42947
SCREW,5/16" - 18 x 1.375", Grade 6, Steel
SPARE PART SCREW - 5/16 x 1-3/8" NC Ferry head, 12 point cap
4шт.
10
A42936
VALVE
VALVE ASSY - roto-lock, discharge, 1/2" port
1шт.
11
A42937
VALVE
VALVE ASSY - roto-lock, suction, 5/8" port, Includes: Ref. 12 and 13
1шт.
12
A42944
CAP
CAP - sleeve, valve stem
1шт.
13
221-981
CAP - valve stem
1шт.
14
A42938
GASKET
GASKET - roto-lock to cylinder head
2шт.
15
A42939
KEY
KEY - crankshaft, No. 6 non-rok
1шт.
16
14-68
BOLT,Hex, 3/8" - 24 x 1/2", Gr 5
PLUG - crankcase, filler & level
2шт.
17
NSS
NOT SOLD SEPARAT
GASKET - filler & level plug (Order A42943)
2шт.
18
A42934
SEAL
KIT - seal, front crankshaft, Includes: Ref. 19 - 23
1шт.
19
NSS
NOT SOLD SEPARAT
SEAL - crankshaft
1шт.
20
NSS
NOT SOLD SEPARAT
RETAINER - seal, outer
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING - (Order A42943)
1шт.
22
NSS
NOT SOLD SEPARAT
RETAINER - seal, inner
1шт.
23
NSS
NOT SOLD SEPARAT
PLATE - crankshaft seal
1шт.
24
NSS
NOT SOLD SEPARAT
BOLT - seal, Serial Range: plate-crankshaft
6шт.
25
NSS
NOT SOLD SEPARAT
HOUSING - rear bearing
1шт.
26
NSS
NOT SOLD SEPARAT
O-RING - rear bearing housing (Order A42943)
1шт.
27
NSS
NOT SOLD SEPARAT
RING - snap, rear bearing housing retaining
1шт.
28
NSS
NOT SOLD SEPARAT
PLATE - bottom
1шт.
29
NSS
NOT SOLD SEPARAT
O-RING - bottom plate (Order A42943)
1шт.
30
NSS
NOT SOLD SEPARAT
RING - snap, bottom plate retaining
1шт.
A42943
SPARE PART KIT - gasket, complete overhaul (Includes Items 4, 6, 17, 21, 26, & 29)
1шт.
Выбрано товаров: 34
