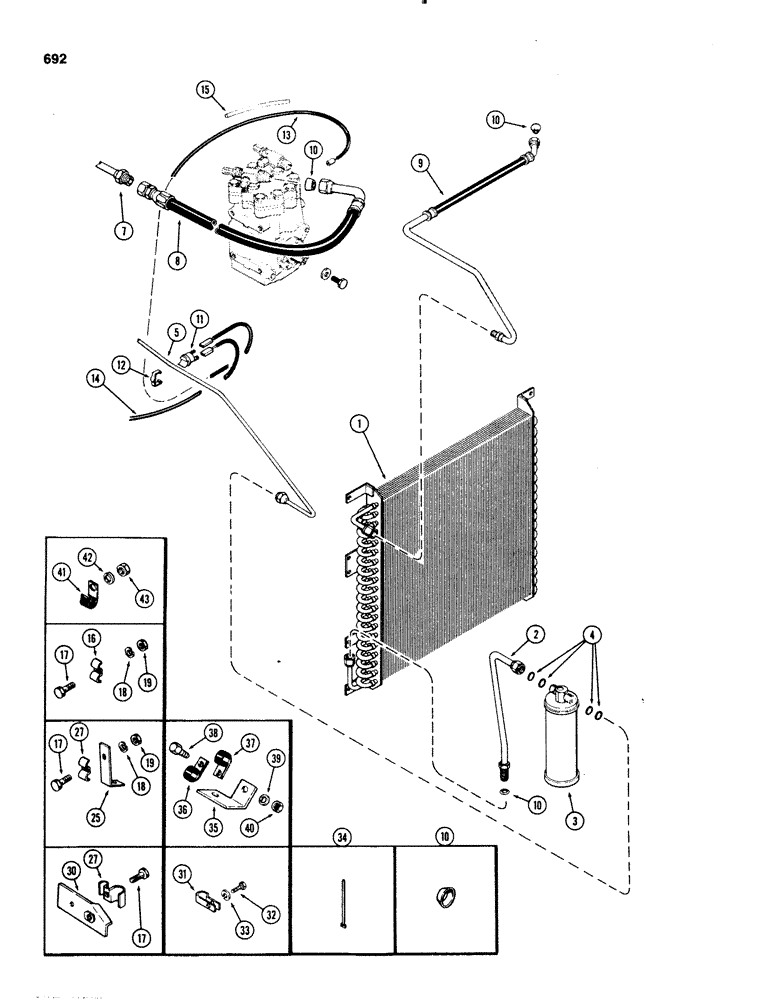

Запчасти Case IH 1070 (0692) - AIR CONDITIONER, HOSES AND TUBES, WITHOUT SAFETY SWITCH USED PRIOR TO TRACTOR SERIAL NUMBER 8731899 (09) - CHASSIS/ATTACHMENTS

1

A61812

COIL

- condenser

1шт.

2

A64579

TUBE

- condenser to receiver (Replaces A61816)

1шт.

3

A61688

TANK

RECEIVER - dryer

1шт.

4

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- 5/16 x 7/16 x 1/16"

4шт.

5

A64581

TUBE

- receiver dryer to cab (Replaces A61818)

1шт.

7

A62225

TUBE

- cab to compressor hose

1шт.

8

A61207

HOSE

-, Serial Range: tube-compressor

1шт.

9

A64580

HOSE

- compressor to condenser (Replaces A61817)

1шт.

10

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

10

222-994

GASKET,1/2 Tube, Fl, Copper

- flare, copper (for 1/2" tube)

1шт.

10

222-995

SEALING WASHER,15.88mm ID

- flare, copper (for 5/8" tube)

1шт.

11

A61291

THERMOSTAT

- high temperature

1шт.

12

A61789

CLAMP

- thermostat

1шт.

13

A61755

ELECTRICAL WIRE

WIRE - thermostat to compressor clutch

1шт.

14

A42931

ELECTRICAL WIRE

WIRE - thermostat to cab upper harness

1шт.

15

A62053

HARNESS

LOOM - wire

1шт.

16

A61199

CLIP

- tube

1шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

25-104

NUT,1/4"-20, G5

2шт.

25

A61202

BRACKET - air conditioner tube mounting

1шт.

27

A61704

CLAMP - tubes

2шт.

30

A64397

BRACKET

- air conditioner tube mounting (Replaces A62254)

1шт.

31

A7922

CLIP

- clutch lead wire

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wires to tubes & water trap, RH (Order L18331)

4шт.

35

A62206

BRACKET - air conditioner tube mounting

1шт.

36

49885

CLAMP

CLIP - tube, 5/8"

1шт.

37

49845

CLAMP

CLIP - tube, 3/8"

2шт.

38

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

39

92-6

LOCK WASHER,3/8"

1шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

41

A59718

CLAMP

CLIP - water trap tube, LH

1шт.

42

92-6

LOCK WASHER,3/8"

(attach to step bolt) 3/8"

1шт.

43

25-106

NUT,3/8"-16, G5

- 3/8" NC hex (attach to step bolt)

1шт.
