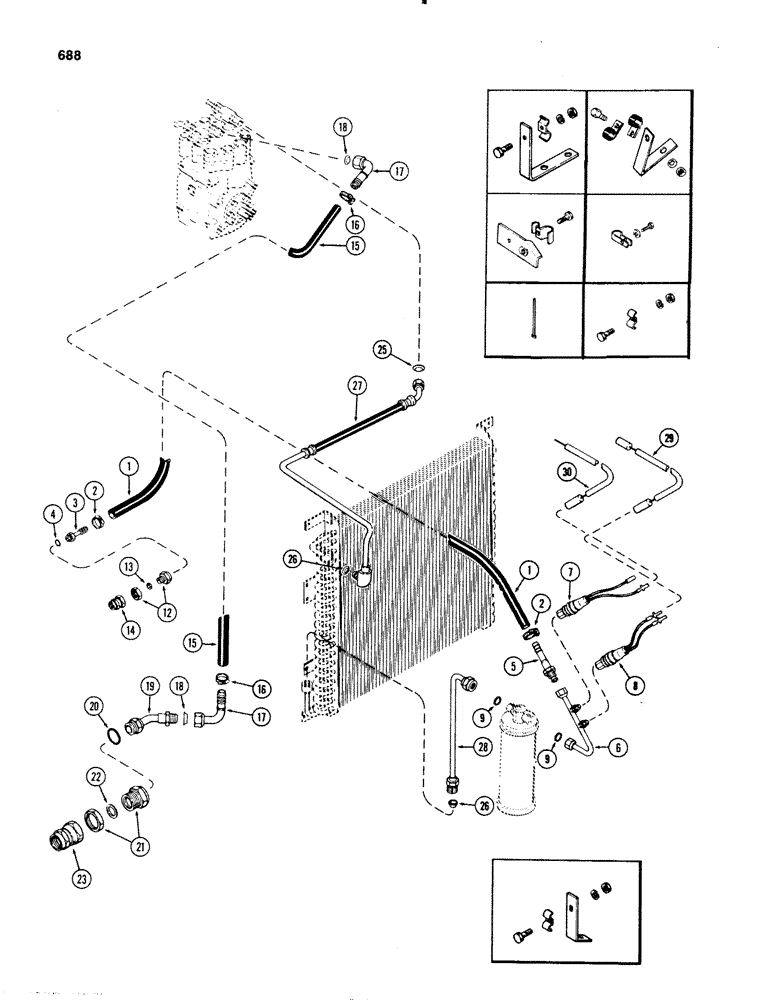

Запчасти Case IH 1070 (0688) - AIR CONDITIONER, HOSES AND TUBES, WITH SAFETY SWITCH, USED PRIOR TO CAB SERIAL NUMBER 8731899 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A65772
SWITCH
KIT - tube, safety switch, Includes: Ref. 1 - 9
1шт.
1
NSS
NOT SOLD SEPARAT
HOSE - cab to receiver dryer, 82-1/2" (Order A65802)
1шт.
A65802
HOSE
- 5/16" ID x 88-1/2" (cut as required)
1шт.
2
A65795
COLLAR CLAMP
CLAMP - hose
2шт.
3
A65796
ADAPTER - quick connect
1шт.
4
A61195
O-RING,0.364" ID x 0.5" OD
- 23/64 x 1/2 x 1/16"
1шт.
5
A65793
FITTING -, Serial Range: hose-tube
1шт.
6
A65792
TUBE
- receiver dryer
1шт.
7
A65779
SWITCH
- high pressure cut-out
1шт.
8
A65785
SWITCH
- low pressure cut-out
1шт.
9
A61198
O-RING,0.07" Thk x 0.301" ID, -11
- 5/16 x 7/16 x 1/16"
2шт.
A65786
CLIP
- hose & tube (See Ref. 55) (3/4 and 3/8")
1шт.
A65773
CLIP - hose & tube (See Ref. 55) (3/4 and 5/8")
2шт.
12
A61196
COUPLING, BREAK AWAY
COUPLING ASSY - hose, Includes: Ref. 13
1шт.
13
A42667
GASKET
O-RING - coupling
1шт.
14
A42663
COUPLING,1/2" - 20 NPT
COUPLING ASSY - adapter tube
1шт.
15
A65797
HOSE
- cab to compressor, 62-1/2"
1шт.
16
A65791
COLLAR CLAMP
CLAMP - hose
2шт.
17
A65789
ELBOW - hose to compressor & adapter
2шт.
18
222-995
SEALING WASHER,15.88mm ID
- 45 deg., 5/8" OD tube
2шт.
19
A65788
ADAPTER
- hose to cab coupling
1шт.
20
A61197
O-RING,1.78mm Thk x 27mm ID
- 1-3/64 x 1-3/16 x 1/16"
1шт.
21
A61194
COUPLING, BREAK AWAY
COUPLING ASSY - tube, Includes: Ref. 22
1шт.
22
A42668
GASKET
- coupling
1шт.
23
A42664
COUPLING, BREAK AWAY
COUPLING ASSY - tube
1шт.
25
222-994
GASKET,1/2 Tube, Fl, Copper
- 45 deg., 1/2" OD tube
1шт.
26
222-993
GASKET,3/8 Tube, Fl, Copper
2шт.
27
A64580
HOSE
-, Serial Range: condenser-compressor
1шт.
28
A64579
TUBE
-, Serial Range: condenser-receiver
1шт.
29
A61755
ELECTRICAL WIRE
WIRE - low pressure switch to compressor, 36"
1шт.
A62053
HARNESS
LOOM - wire
1шт.
30
A42931
ELECTRICAL WIRE
WIRE - high pressure switch to cab, 197"
1шт.
Выбрано товаров: 32
