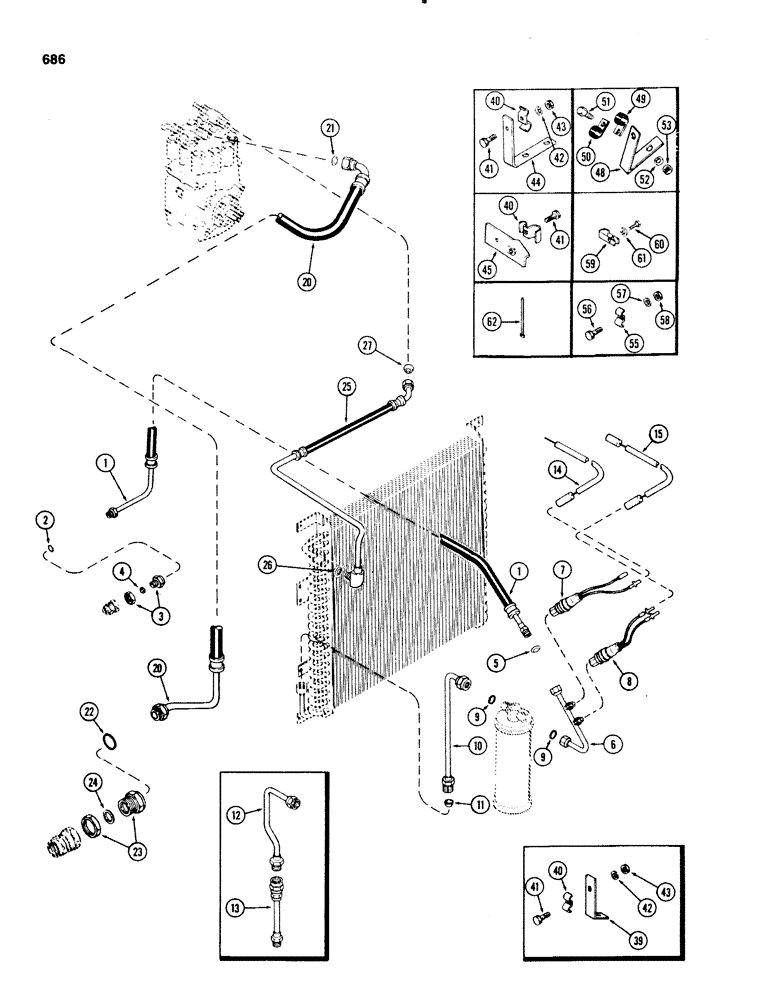

Запчасти Case IH 1070 (0686) - AIR CONDITIONER, HOSES AND TUBES, WITH SAFETY SWITCH (09) - CHASSIS/ATTACHMENTS

1

A66273

A/C HOSE

- cab to receiver dryer, 84"

1шт.

2

A61195

O-RING,0.364" ID x 0.5" OD

- 23/64 x 1/2 x 1/16"

1шт.

3

A61196

COUPLING, BREAK AWAY

COUPLING ASSY. - hose, Includes: Ref. 4

1шт.

4

A42667

GASKET

O-RING - coupling

1шт.

5

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

6

A65792

TUBE

- receiver dryer

1шт.

7

A65785

SWITCH

- low pressure cut-out

1шт.

8

A65779

SWITCH

- high pressure cut-out

1шт.

9

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- 5/16 x 7/16 x 1/16"

2шт.

10

A64579

TUBE

-, Serial Range: condenser-receiver

1шт.

11

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - condenser to receiver (Production Only) (Order A64579)

1шт.

13

NSS

NOT SOLD SEPARAT

TUBE - condenser to receiver tube (Production Only) (Order A64579)

1шт.

14

A61755

ELECTRICAL WIRE

WIRE - low pressure switch to compressor, 36"

1шт.

A62053

HARNESS

LOOM - wire

1шт.

15

F63661

ELECTRICAL WIRE

WIRE - high pressure switch to cab, 215"

1шт.

20

A66275

TUBE ASSY.

HOSE - cab to compressor, 62-1/2"

1шт.

21

222-995

SEALING WASHER,15.88mm ID

- 45deg., 5/8" O.D. tube

1шт.

22

A61197

O-RING,1.78mm Thk x 27mm ID

- 1-3/64 x 1-3/16 x 1/16"

1шт.

23

A61194

COUPLING, BREAK AWAY

COUPLING ASSY. - tube, Includes: Ref. 24

1шт.

24

A42668

GASKET

- coupling

1шт.

25

A64580

HOSE

-, Serial Range: condenser-compressor

1шт.

26

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

27

222-994

GASKET,1/2 Tube, Fl, Copper

- 45deg., 1/2" O.D. tube

1шт.

39

A61202

BRACKET - hose support

1шт.

40

A65787

CLIP

- hose, 3/4 x 1-1/8"

2шт.

41

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

25-104

NUT,1/4"-20, G5

2шт.

44

A61201

BRACKET - hose support

1шт.

45

A64397

BRACKET

- hose support

1шт.

48

A62206

BRACKET - hose support

1шт.

49

49885

CLAMP

CLIP - tube, 5/8"

1шт.

50

49845

CLAMP

CLIP - tube, 3/8"

1шт.

51

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

52

92-6

LOCK WASHER,3/8"

1шт.

53

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

55

A65786

CLIP

- hose & tube, 3/8 & 3/4"

1шт.

56

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

57

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

58

25-104

NUT,1/4"-20, G5

1шт.

59

A7922

CLIP

- clutch wire

1шт.

60

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 7/8" N.C. hex

1шт.

61

92-6

LOCK WASHER,3/8"

1шт.

62

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire to tube (Order L18331)

1шт.
