(0680) - AIR CONDITIONER, CONDENSER AND RECEIVER DRYER, USED PRIOR TO CAB SERIAL NUMBER 8731899

Запчасти Case IH 1070 (0680) - AIR CONDITIONER, CONDENSER AND RECEIVER DRYER, USED PRIOR TO CAB SERIAL NUMBER 8731899 (09) - CHASSIS/ATTACHMENTS

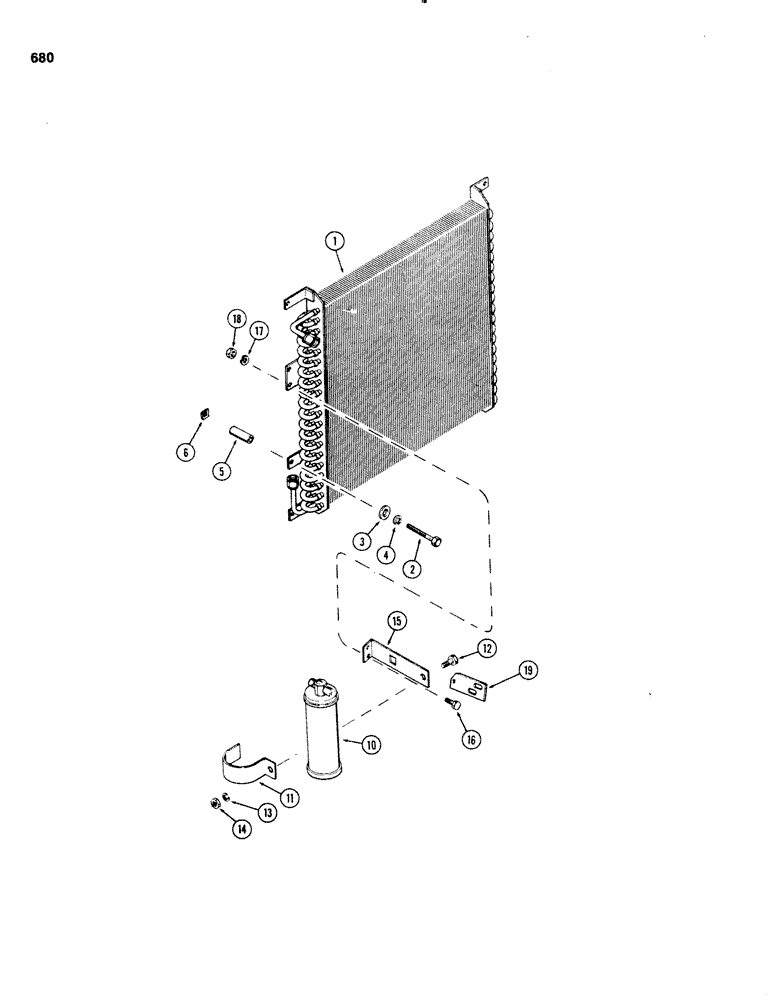

Схема запчастей Case IH 1070 - (0680) - AIR CONDITIONER, CONDENSER AND RECEIVER DRYER, USED PRIOR TO CAB SERIAL NUMBER 8731899 (09) - CHASSIS/ATTACHMENTS
18
6
11
12
16
5
15
17
10
1
19
3
13
14
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A61812

COIL

- condenser

1шт.

2

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

3

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

A61813

SPACER - coil mounting

4шт.

6

131-611

NUT,Ret, 1/4"-20

- 1/4" NC Tinnerman

4шт.

10

A61688

TANK

RECEIVER - dryer

1шт.

11

A61193

CLAMP

- receiver dryer

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

13

92-5

LOCK WASHER,5/16"

3шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

3шт.

15

A62131

BRACKET - receiver dryer

1шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

25-104

NUT,1/4"-20, G5

2шт.

19

A65404

BEARING LINER

STRAP - support, mounting, Serial Range: bracket-grille

1шт.
