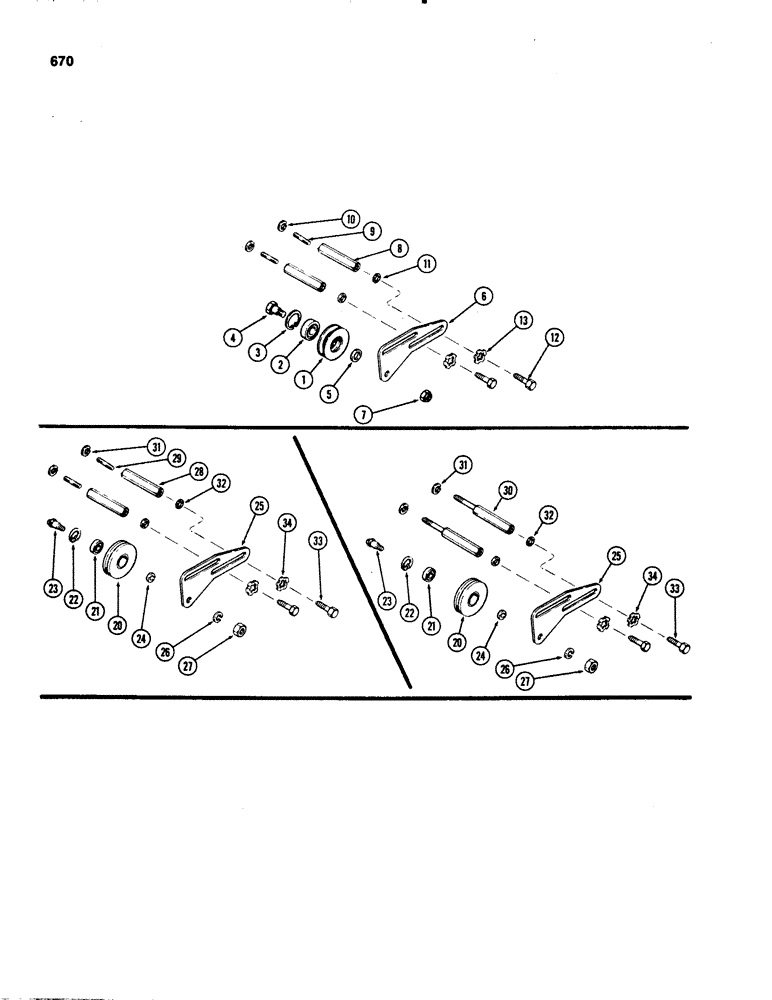

Запчасти Case IH 1070 (0670) - IDLER PULLEY KIT, 1/2 INCH PULLEY, 1ST USED TRACTOR SERIAL NUMBER 8707322 (09) - CHASSIS/ATTACHMENTS

A66070

KIT

- idler pulley w/heavy duty bearing, Includes: Ref. 1 - 13

1шт.

1

A65780

PULLEY

- idler compressor drive belt

1шт.

2

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - pulley, heavy duty

1шт.

3

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, , brg 1.562", Int, #156

1шт.

(1.735 O.D.)

1шт.

4

A65782

PIN

- idler pulley, 9/16" NF

1шт.

5

A65783

SPACER

- idler pulley

1шт.

6

A65784

PLATE

- idler adjusting

1шт.

A149738 Plate

1шт.

7

131-1145

JAM NUT,5/8" - 18

NUT - 9/16" NF hex, jam

1шт.

8

A65668

MOUNTING PARTS

POST - idler mounting

2шт.

9

A65667

STUD

- post

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

195-25

WASHER,3/8"

- 13/32 x 13/16x 1/16"

8шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

13

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - shakeproof, 3/8" internal/external

2шт.

20

A62964

PROTECTOR

PULLEY - idler, compressor drive belt 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

1шт.

21

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

BEARING - idler pulley 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

1шт.

22

A62966

SNAP RING,1.02", Int, #102

Ring, Snap, , brg, idler pulleys - 1/2 " used tractor s/n 8693001 to 8707322 1.02", Int, #102

1шт.

(1.134 O.D.)

1шт.

23

A62967

PIN

- idler pulley, 5/16" NC 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

1шт.

24

A62968

SPACER

- idler pulley 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

1шт.

25

A62969

LARGE PLATE

PLATE - idler adjusting PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

1шт.

26

192-110

LOCK WASHER,5/16"

WASHER - lock, IDLER PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322 5/16"

1шт.

27

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" NC hex, jam IDLER PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

1шт.

28

A65668

MOUNTING PARTS

POST - idler mounting PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

2шт.

29

A65667

STUD

- mounting post IDLER PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

2шт.

30

A62970

POST

- idler mounting (Order A65667 & A65668 ) PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

2шт.

30

A62970

POST

- idler mounting (Order A65667 & A65668) PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

2шт.

30

A62970

POST

- idler mounting (Order A65667 & A65668) PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

2шт.

30

A62970

POST

- idler mounting (Order A65667 & A65668) PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

2шт.

31

92-6

LOCK WASHER,3/8"

idler pulleys - 1/2 inch used trac ser nos. 8693001 TO 8707322 3/8"

2шт.

32

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

Idler Pulleys - 1/2", Used Trac S/N'S 8693001 to 8707322 3/8"

8шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Idler pulleys - 1/2" used tractor S/N's 8693001 TO 8707322 Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

34

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" internal/external IDLER PULLEYS - 1/2 INCH USED TRAC SER NOS. 8693001 TO 8707322

2шт.
