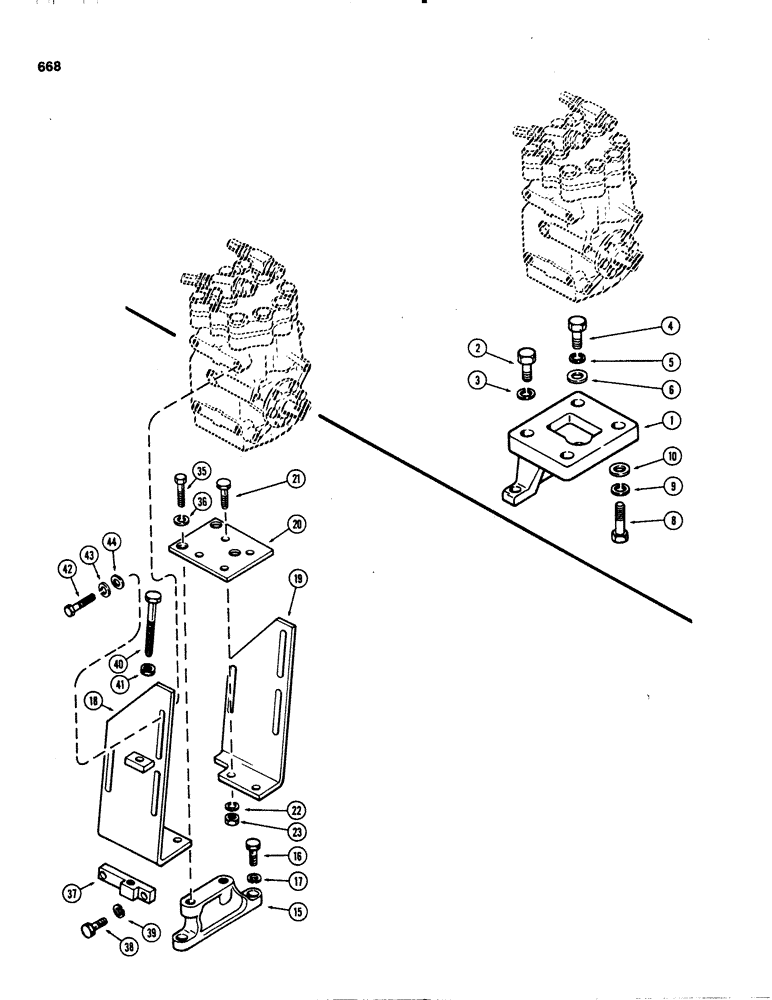

Запчасти Case IH 1070 (0668) - COMPRESSOR MOUNTING BRACKETS, 1ST USED TRACTOR SERIAL NUMBER 8686964, (09) - CHASSIS/ATTACHMENTS

1

A64147

BRACKET

- compressor mounting (replaces A64157)

1шт.

2

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

5

92-7

LOCK WASHER,7/16"

1шт.

6

195-2065

WASHER,33/64" x 7/8" x .049"

- 7/8 x 33/64 x 18 gauge

1шт.

6

A57090

WASHER

- 21/32 x 1-1/8 x 1/64"

1шт.

8

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- 3/8 x 1-7/8" NC hex

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

95-6

WASHER,3/8"

- 1/2 x 1 x 5/64"

4шт.

15

A61155

BRACKET

SUPPORT - bracket, used prior to cab serial number 8686964

1шт.

16

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Used prior to cab S/N 8686964 Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

used prior to cab ser no. 8686964 1/2"

2шт.

NSS

NOT SOLD SEPARAT

BRACKET ASSY - compressor mounting, Includes: Ref. 18 - 23, used prior to cab serial number 8686964

1шт.

18

A61744

BRACKET - compressor mounting, RH, used prior to cab serial number 8686964

1шт.

19

A61745

BRACKET - compressor mounting, LH, used prior to cab serial number 8686964

1шт.

20

A61743

PLATE - bracket adjusting, used prior to cab serial number 8686964

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used prior to cab S/N 8686964 Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

used prior to cab ser no. 8686964 3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" NC hex USED PRIOR TO CAB SER NO. 8686964

4шт.

35

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Used prior to cab S/N 8686964 Hex, 7/16"-14 x 1", G5, Full Thd

3шт.

36

92-7

LOCK WASHER,7/16"

used prior to cab s/n. 8686964 7/16"

3шт.

37

A61153

BLOCK - compressor adjusting, used prior to cab serial number 8686964

2шт.

38

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Used prior to cab S/N 8686964 Hex, 3/8"-16 x 1 3/4", G5

4шт.

39

92-6

LOCK WASHER,3/8"

used prior to cab ser no. 8686964 3/8"

4шт.

40

A61154

BOLT - 3/8 x 4-1/4" NC hex, used prior to cab serial number 8686964

2шт.

41

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex, jam, used prior to cab serial number 8686964

2шт.

42

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Used prior to cab S/N 8686964 Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

used prior to cab ser no. 8686964 3/8"

2шт.

44

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", used prior to cab serial number 8686964

2шт.
