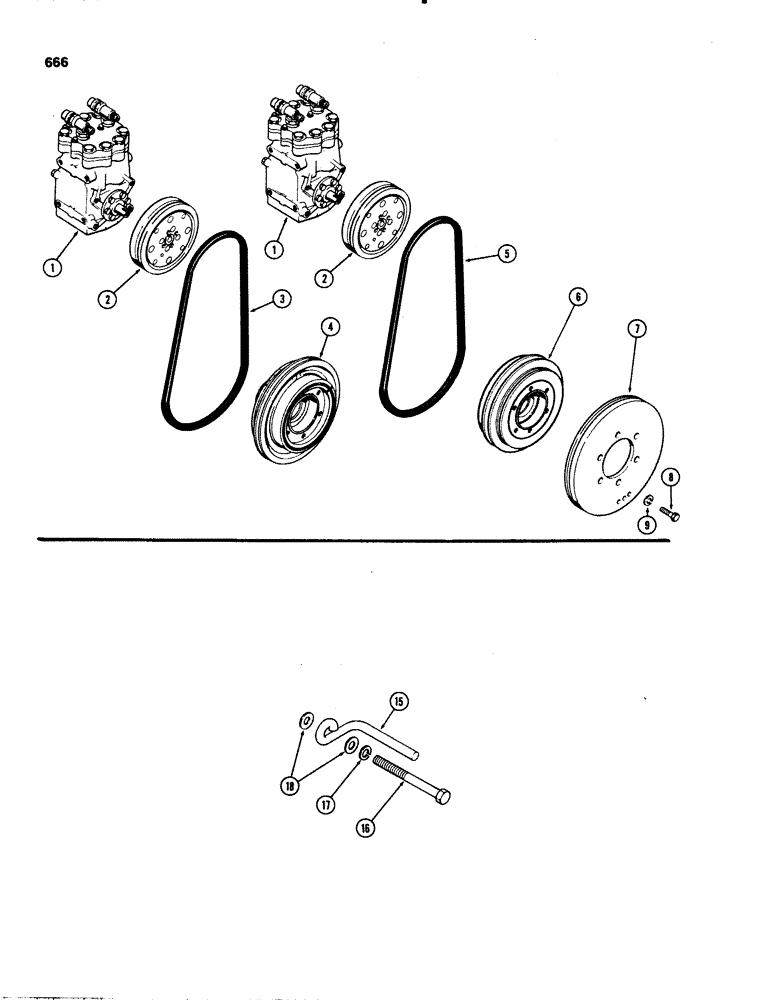

Запчасти Case IH 1070 (0666) - COMPRESSOR DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR ASSY - (See Figures 658-666)

1шт.

2

REF

INSTRUCTION

CLUTCH - compressor (See Figure 452)

1шт.

For compressor clutch info, see Fig. 704 in this parts book.

1шт.

3

A65717

V-BELT,0.50" W x 72.80" L

Compressor Drive, Replaces A62962, First Used Tractor Serial No. 8705614 0.50" W x 72.80" L

1шт.

3

A62962

V-BELT,0.50" W x 72.80" L

V-BELT, , Compressor Drive, Order A65717, Used Tractor Serial Nos. 8693001 to 8705614 0.50" W x 72.80" L

1шт.

4

A64106

CRANKSHAFT

PULLEY - crankshaft & compressor drive 1/2" (1st used trac ser no. 8693001) (Order A66446)

1шт.

5

A65692

BELT,72.83" L

Compressor Drive, Replaces A61158, Used Tractor Serial Nos. 8686964 to 8693001 72.83" L

1шт.

6

A66446

PULLEY

- crankshaft (Used w/A61157) (replaces A58871)

1шт.

A58871 not longer avail. OK to use A66446 pulley. May have to replace compressor clutch to accomodate 1/2" belt.

1шт.

7

A61157

PULLEY - compressor drive, 11mm (Used trac ser no., Serial Range: 8686964-8693001)

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

6шт.

9

92-6

LOCK WASHER,3/8"

6шт.

A65719

KIT

- rub bar, drive belt, Includes: Ref. 16 - 18

1шт.

15

A65718

GUARD

BAR - rub, drive belt, kit

1шт.

16

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Rub bar kit Hex, 3/8"-16 x 4", G5

1шт.

17

92-6

LOCK WASHER,3/8"

rub bar kit 3/8"

1шт.

18

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", rub bar kit

2шт.
