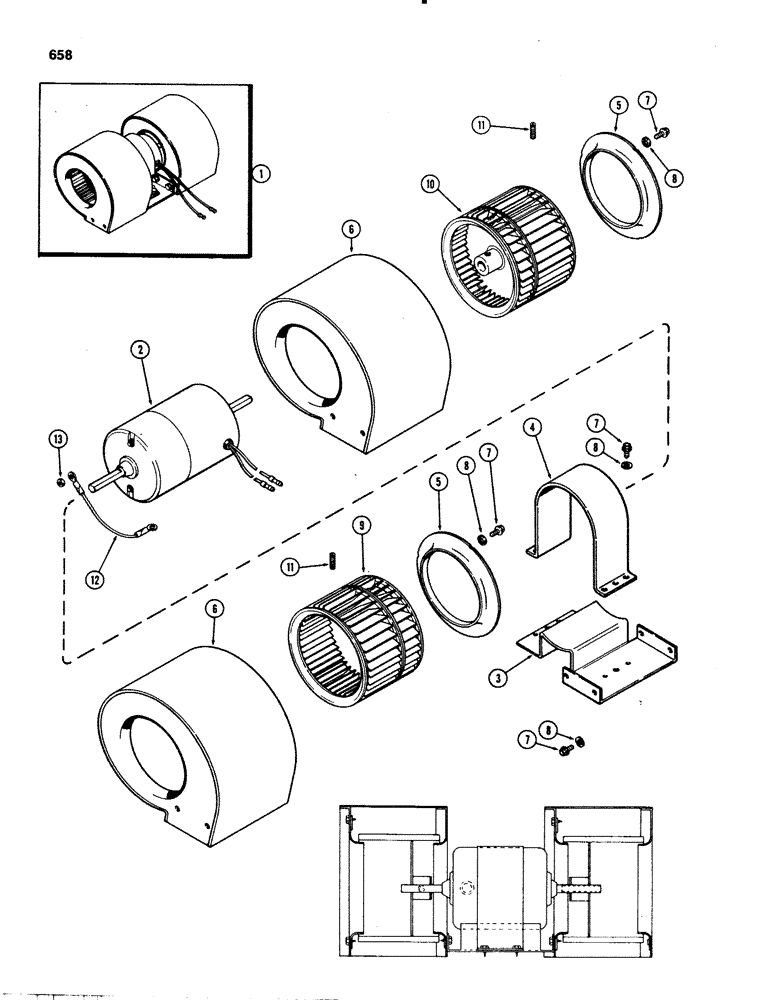

Запчасти Case IH 1070 (0658) - CAB, BLOWER, 1ST USED CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

BLOWER ASSY - cab air, Includes: Ref. 2 - 11

1шт.

Not available as an assembled unit. Order components

1шт.

2

F89750

MOTOR, ELECTRIC

MOTOR - blower

1шт.

3

F63652

MOTOR, ELECTRIC

MOUNT - motor

1шт.

4

F63650

CLAMP

- motor

1шт.

5

F63655

RETAINER

EYE - inlet

2шт.

6

F89797

HOUSING

- blower

2шт.

7

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" hex slotted washer head

13шт.

8

193-6

LOCK WASHER,Ext Tooth, #10

WASHER - shakeproof, #10 internal

13шт.

9

A42569

BLOWER,Fan, RH

- blower, RH

1шт.

10

A42568

WHEEL

- blower, LH

1шт.

11

84-410

SET SCREW,Hex Soc, 1/4"-28 x 5/8"

SCREW - 1/4" NF headless socket cup point set

2шт.

12

F64055

CABLE

- motor to ground (6" black)

1шт.

13

129-37

NUT,#10-32

1шт.
