(0656) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER HARNESS

Запчасти Case IH 1070 (0656) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER HARNESS (09) - CHASSIS/ATTACHMENTS

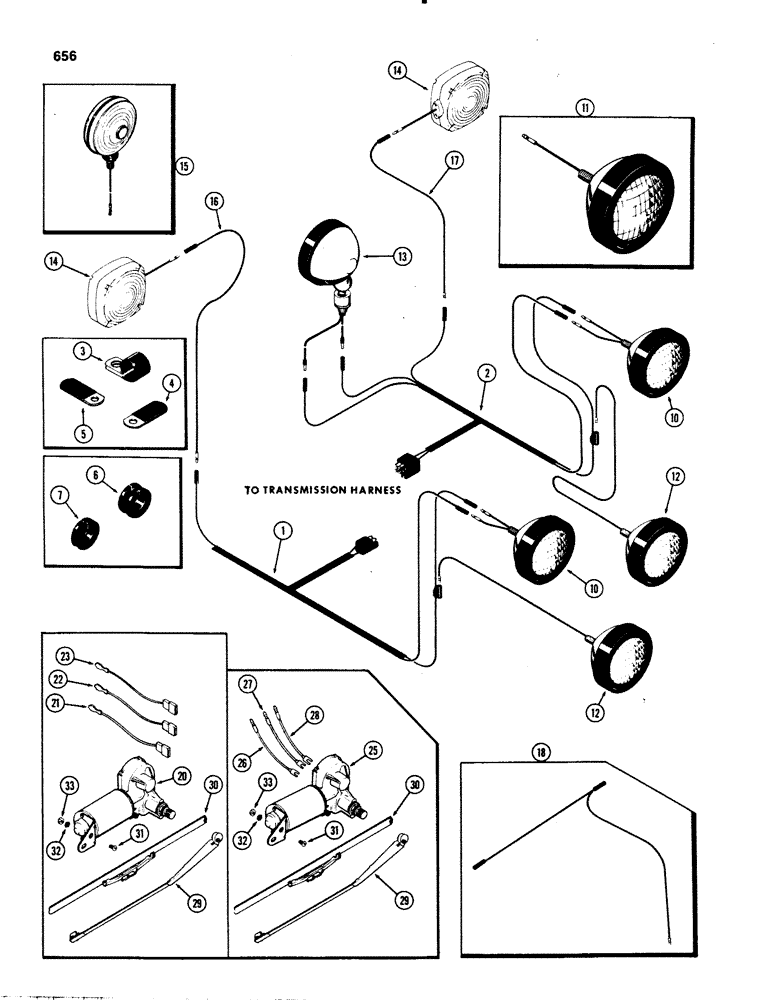

Схема запчастей Case IH 1070 - (0656) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER HARNESS (09) - CHASSIS/ATTACHMENTS
12
12
31
29
14
26
30
10
5
3
4
7
6
32
11
27
18
16
31
33
32
30
22
1
10
23
15
29
33
2
13
14
21
17
20
28
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62414

HARNESS

- fender wire, RH

1шт.

2

A61146

HARNESS

- fender wire, LH

1шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLIP - wire harness

4шт.

4

A22883

CLIP

- fender harness

2шт.

5

A37179

CLIP

- fender harness

2шт.

6

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- cab fender & frame

3шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- cab front frame, head lamp wires

2шт.

10

A64498

LAMP

- front flood & driving (See Fig. 144) (1st used trac ser no. 8693001)

2шт.

11

A59701

LAMP

- front driving (See Fig. 144) (Used prior to trac ser no. 8693001)

2шт.

12

A59723

LAMP

- front cultivator (See Fig. 146)

2шт.

13

A59703

LAMP

- rear flood & tail (See Fig. 148)

1шт.

14

A44201

LIGHT ASSY.

LAMP - flasher (See Fig. 140) (1st used trac ser no. 8693001)

2шт.

15

A34853

LAMP

- flasher (See Fig. 138) (Used prior to trac ser no. 8693001)

2шт.

16

F63584

CABLE

WIRE - flasher, R.H. (dark brown) (110" long) (1st used cab ser no. 7821251)

1шт.

17

F63585

CABLE

WIRE - flasher, LH (tan w/white) (60" long) (1st used cab ser no. 7821251)

1шт.

18

F63368

ELECTRICAL WIRE

WIRE - flasher to harness (Used prior to cab ser no. 7821251)

1шт.

F98158

MOTOR, ELECTRIC

MOTOR ASSY - windshield wiper (Replaces A42692), Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

21

F64188

ELECTRICAL WIRE

WIRE - motor, green, windshield wiper

1шт.

22

F64189

ELECTRICAL WIRE

WIRE - motor, blue, windshield wiper

1шт.

23

F64190

ELECTRICAL WIRE

WIRE - motor, orange, windshield wiper

1шт.

A42692

MOTOR

ASSY - (Order F98158), Includes: Ref. 25 - 28, windshield wiper

1шт.

25

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

26

A42693

ELECTRICAL WIRE

WIRE - motor, green, windshield wiper

1шт.

27

A42694

ELECTRICAL WIRE

WIRE - motor, blue, windshield wiper

1шт.

28

A42695

ELECTRICAL WIRE

WIRE - motor, orange, windshield wiper

1шт.

29

T41946

ARM

- windshield wiper

1шт.

30

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper

1шт.

31

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" round head self-tapping, windshield wiper

1шт.

32

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Windshield wiper Ext-Int Tooth, #10

2шт.

33

129-17

NUT,Hex, #10 - 24

NUT - #10 NC hex, windshield wiper

1шт.
