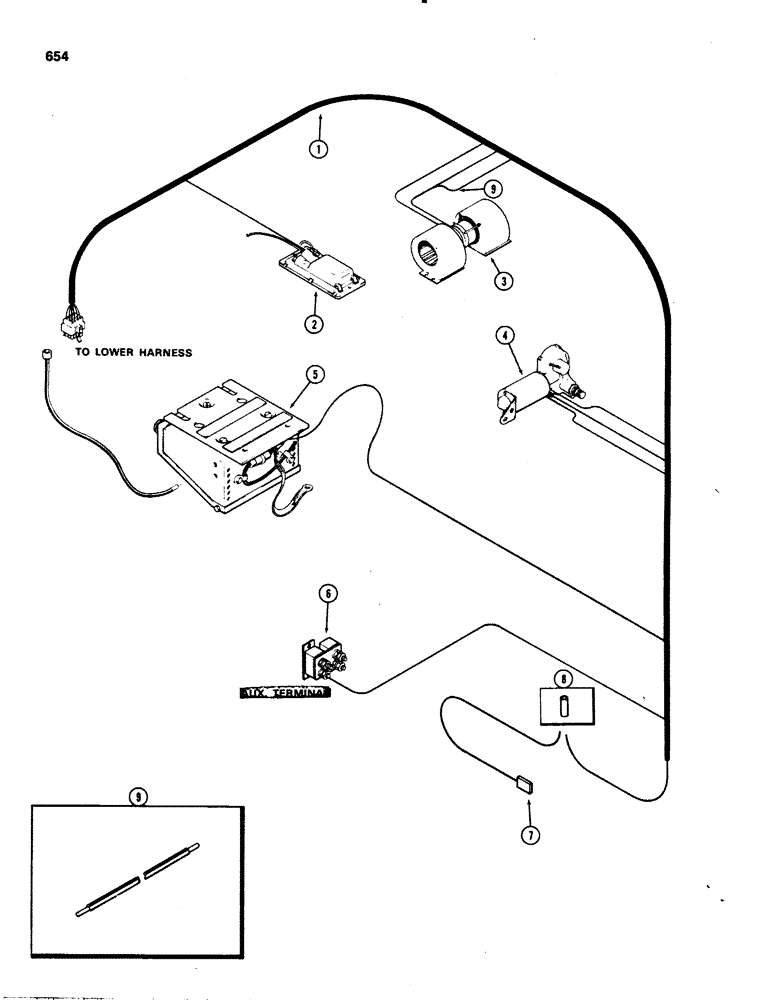

Запчасти Case IH 1070 (0654) - CAB, ELECTRICAL EQUIPMENT AND WIRING, PLENUM, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

1

F63281

HARNESS

ASSY - plenum wire

1шт.

2

A42658

INTERIOR LIGHT

LIGHT - dome

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER ASSY - cab air (See Fig. 658)

1шт.

4

A42692

MOTOR

ASSY - windshield wiper (See Fig. 656)

1шт.

5

A62456

RADIO

KIT - (See Fig. 664)

1шт.

6

A59704

BREAKER

- circuit, auxiliary terminal

1шт.

7

A42931

ELECTRICAL WIRE

WIRE - harness to high temperature therm (See Fig. 692)

1шт.

8

A42671

CONNECTOR, ELEC

CONNECTOR - wire, solderless

4шт.

9

A42652

ELECTRICAL WIRE

WIRE - resistor, blower speed adjust

1шт.

Wire is color coded white, orange & purple and is connected between the white & brown 16" harness wires

1шт.
