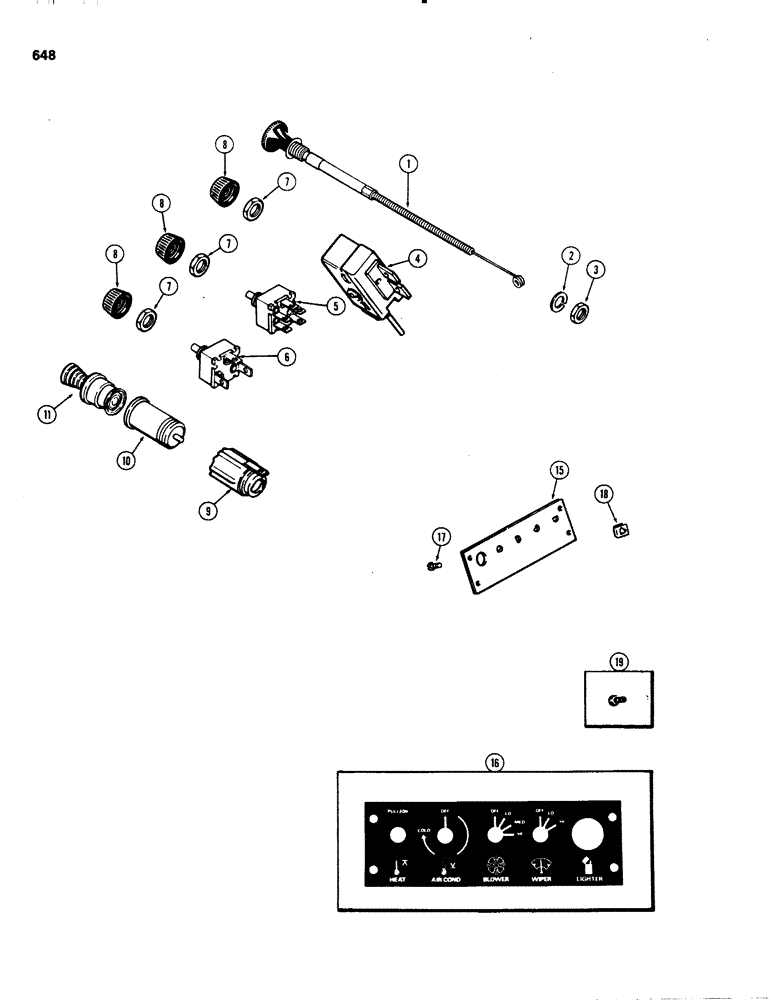

Запчасти Case IH 1070 (0648) - CAB, CONTROLS AND PANEL, USED CAB SERIAL NUMBERS 7814176 TO 7821251 (09) - CHASSIS/ATTACHMENTS

1

A42614

CABLE

- heater control, Includes: Ref. 2 and 3

1шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NC hex, jam

1шт.

4

A42623

CONTROL

- cab temperature

1шт.

5

L73617

SWITCH

- blower (Replaces A42622)

1шт.

6

A42660

SWITCH

- wiper motor

1шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- 7/16" NF hex, jam

3шт.

8

A42578

KNOB

- switch

3шт.

9

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

10

F63530

SOCKET/RECEPTACLE

SOCKET ASSY - cigar lighter

1шт.

11

A143340

SWITCH

ELEMENT - plug in, cigar lighter (Replaces F63531)

1шт.

15

F89844

PANEL

ASSY - control, Includes: Ref. 16

1шт.

16

321-2483

DECAL

- panel

1шт.

17

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" Phillips head

4шт.

18

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

19

353-403

PLUG,Dome, .437" hole, Nylon

1шт.
