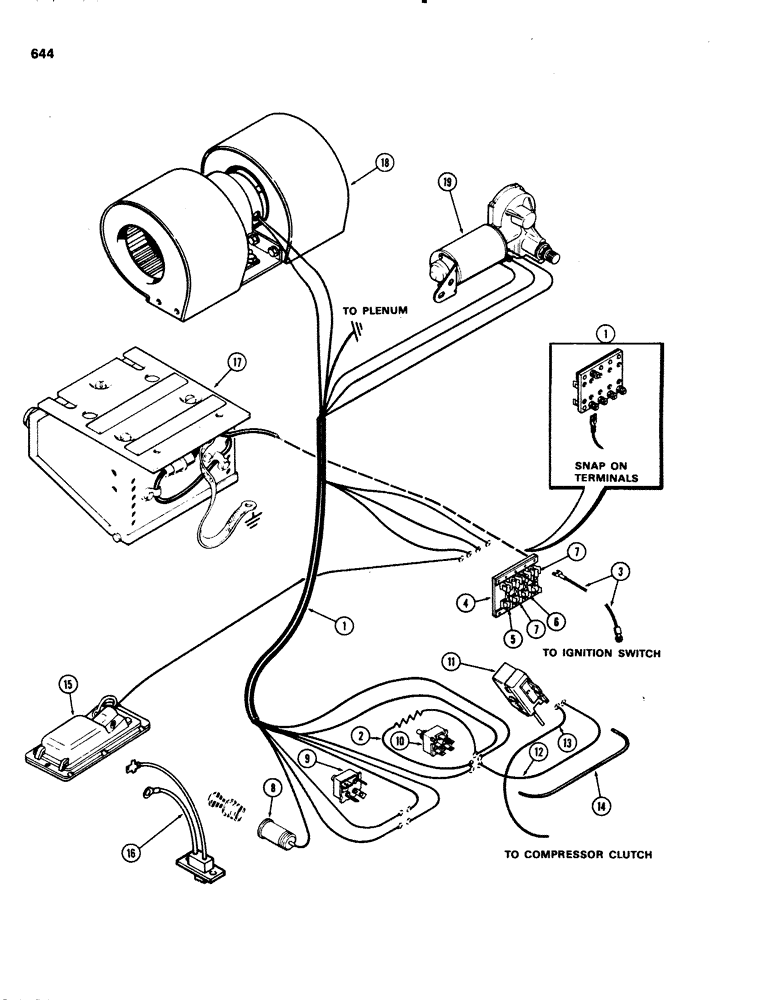

Запчасти Case IH 1070 (0644) - CAB, CONTROLS AND WIRING, USED CAB SERIAL NUMBERS 7821251 TO 7837400 (09) - CHASSIS/ATTACHMENTS

1

F63817

HARNESS

ASSY - control panel wire, Includes: Ref. 2

1шт.

2

A42652

ELECTRICAL WIRE

WIRE - resistor, 18" (white w/orange & purple)

1шт.

3

F63816

ELECTRICAL WIRE

WIRE - harness to starter switch, 154-1/2" red

1шт.

4

F64047

HOLDER

FUSE BLOCK - 5 pole (replaces F63047)

1шт.

5

223-33

FUSE,1 Amp, Type 3AG

- buss, 1 amp (Dome light)

1шт.

6

223-35

FUSE,8 Amp, Type 3AG

- buss, 8 amp (wiper)

1шт.

7

223-15

FUSE,15 Amp, Type 3AG

- buss, 15 amp (Blower & cigar lighter)

2шт.

8

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

9

A42660

SWITCH

- wiper motor

1шт.

10

A42622

SWITCH

- blower motor

1шт.

11

A42623

CONTROL

- cab temperature

1шт.

12

A42624

ELECTRICAL WIRE

WIRE - blower switch to temperature control, 6" black

1шт.

13

F63661

ELECTRICAL WIRE

WIRE - temperature control to compressor 230" light blue

1шт.

14

F63719

TUBE

- shielding, temperature control

1шт.

15

F63894

LAMP

LIGHT - dome

1шт.

16

F63760

SWITCH

- dome light

1шт.

17

A62456

RADIO

KIT - radio (See Fig. 664)

1шт.

18

NSS

NOT SOLD SEPARAT

BLOWER - (See Fig. 658)

1шт.

19

A42692

MOTOR

- windshield wiper

1шт.
