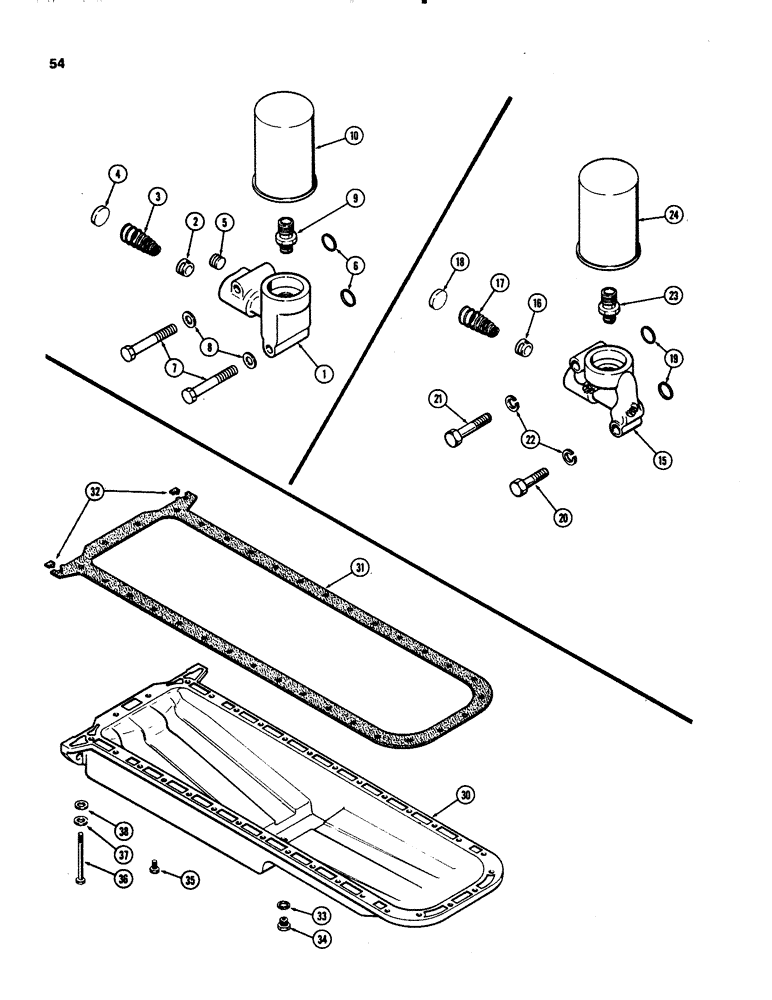

Запчасти Case IH 1070 (0054) - OIL FILTER, 451B DIESEL ENGINE (02) - ENGINE

1

A65849

BASE

ASSY - oil filter (Replaces A58830) (1st used eng ser no. 2535724), Includes: Ref. 2 - 5

1шт.

2

A21090

VALVE

- relief, filter

1шт.

3

A58669

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-17/64" cup

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex socket head

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- filter base to block, 15/16 x 1-5/16 x 17/64"

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

8

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 3/32"

2шт.

9

A63916

ADAPTER

- element to base (Replaces A58671)

1шт.

10

A75294

ENGINE OIL FILTER

ELEMENT - filter, oil (Replaces A58672)

1шт.

15

A58830

BASE

ASSY - oil (Order 1-A65849, 2-113-450 & 2-195-33) (Used prior to eng ser no. 2535724), Includes: Ref. 16 - 18

1шт.

16

A21090

VALVE

- relief, filter

1шт.

17

A58669

SPRING

- relief valve

1шт.

18

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-17/64" cup

1шт.

19

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- filter base to block, 15/16 x 1-15/16 x 17/64"

2шт.

20

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex

1шт.

21

13-850

BOLT,Hex, 1/2" - 13 x 3-1/8", Gr 5

- 1/2 x 3-1/4" NC hex

1шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

A63916

ADAPTER

- element to base (Replaces A58671)

1шт.

24

A75294

ENGINE OIL FILTER

ELEMENT - filter, oil (Replaces A58672)

1шт.

30

A63907

PAN

- oil (Replaces A58850)

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Fig. 56)

1шт.

32

A62402

GASKET

- oil pan corners

2шт.

33

A58608

GASKET

- oil pan drain plug

1шт.

34

A140222

PLUG

- oil pan drain (Replaces A14280)

1шт.

35

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - 3/8 x 1-1/4" NC Sems, oil pan

2шт.

36

A57436

BOLT

- 3/8 x 5-3/4" NC hex, special, oil pan

2шт.

37

A22317

WASHER

- copper, 25/64 x 11/16 x 18 ga, oil pan

2шт.

38

A7085

WASHER

- copper, 25/64 x 9/16 x 18 ga, oil pan

2шт.
