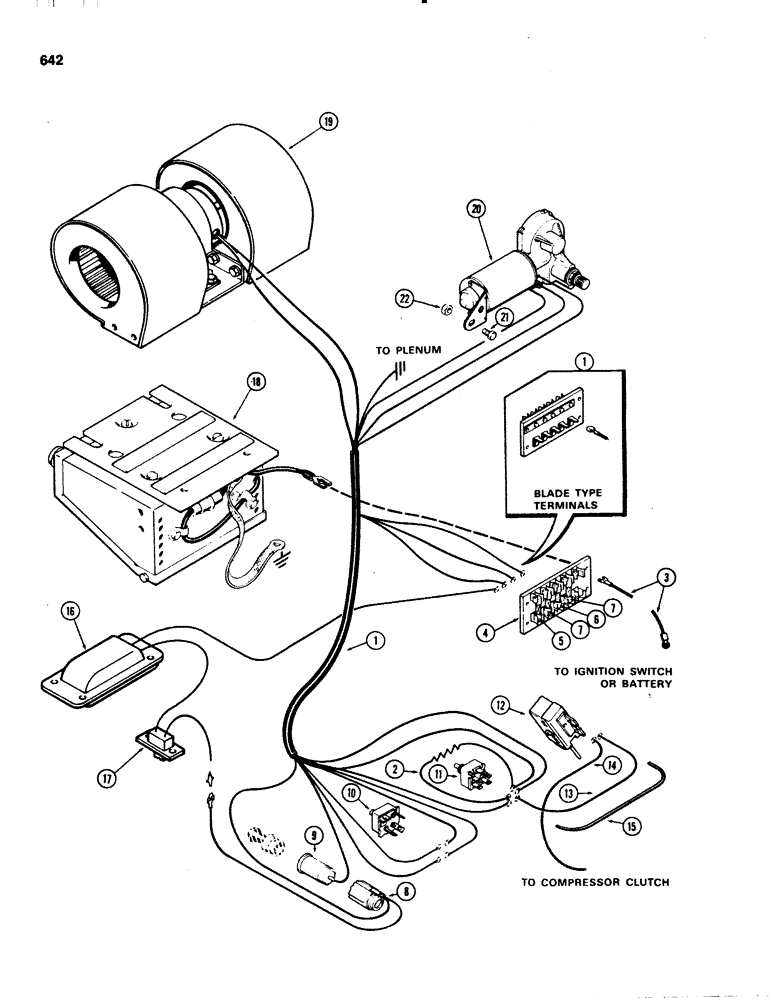

Запчасти Case IH 1070 (0642) - CAB, CONTROLS AND WIRING, 1ST USED CAB SERIAL NUMBER 7837400 (09) - CHASSIS/ATTACHMENTS

1

F64111

HARNESS

ASSY - control panel wire, Includes: Ref. 2

1шт.

2

A42652

ELECTRICAL WIRE

WIRE - resistor, 18" (white w/orange & purple)

1шт.

3

F63816

ELECTRICAL WIRE

WIRE - harness to starter switch, 154-1/2" red

1шт.

4

F63858

BLOCK

FUSE BLOCK

1шт.

5

223-33

FUSE,1 Amp, Type 3AG

- buss, 1 amp (dome light)

1шт.

6

223-35

FUSE,8 Amp, Type 3AG

- buss, 8 amp (wiper)

1шт.

7

223-15

FUSE,15 Amp, Type 3AG

- buss, 15 amp (blower & cigar lighter)

2шт.

8

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

9

F63530

SOCKET/RECEPTACLE

SOCKET - cigar lighter

1шт.

10

A42660

SWITCH

- wiper motor

1шт.

11

L73617

SWITCH

- blower motor (Replaces A42622)

1шт.

12

A42623

CONTROL

- cab temperature

1шт.

13

A42624

ELECTRICAL WIRE

WIRE - blower switch to temperature control, 6" black

1шт.

14

F63661

ELECTRICAL WIRE

WIRE - temperature control to compressor clutch, 230" Light blue

1шт.

15

F63719

TUBE

- shielding, temperature control

1шт.

16

F89772

LAMP

LIGHT - dome

1шт.

17

F63760

SWITCH

- dome light

1шт.

18

REF

INSTRUCTION

KIT - radio (See Fig. 662)

1шт.

19

NSS

NOT SOLD SEPARAT

BLOWER - (See Fig. 658)

1шт.

20

REF

INSTRUCTION

MOTOR - windshield wiper (See Fig. 656)

1шт.

21

163-18

SCREW,Hex, #10 - 24 x 3/8"

- #10-24 x 3/8" hex machine

1шт.

22

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

1шт.
