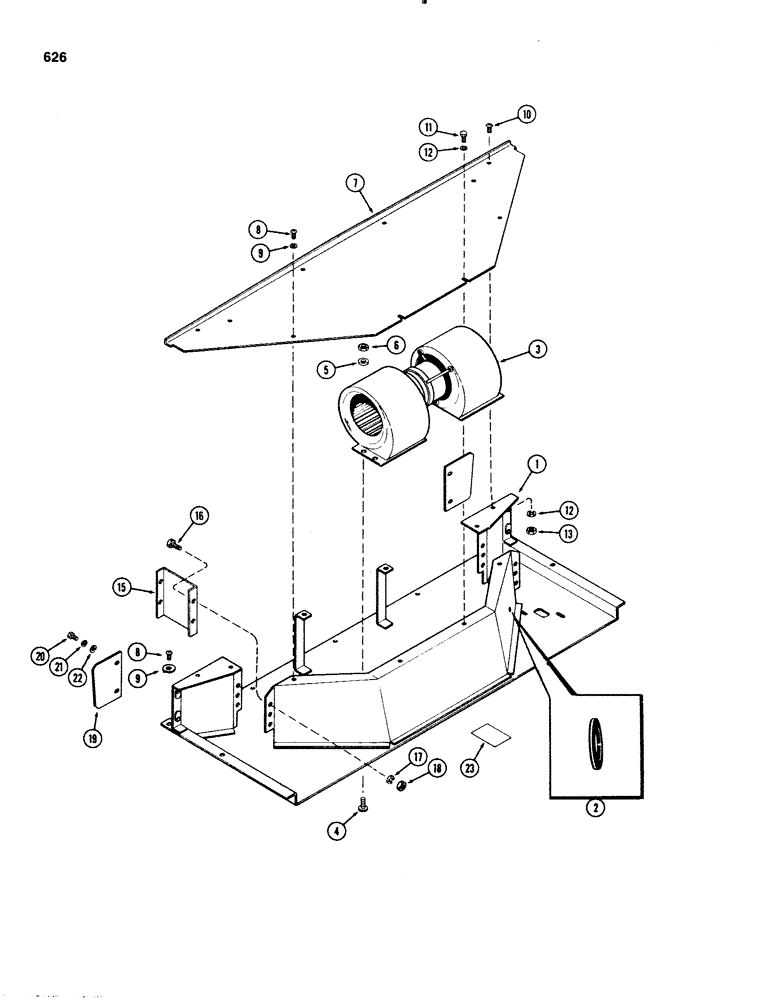

Запчасти Case IH 1070 (0626) - CAB, PLENUM, WITHOUT HEATER OR AIR CONDITIONER, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

1

A42929

PLENUM

PLENUM ASSY - cab

1шт.

2

A42502

GROMMET

- blower wire

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER ASSY - air circulation (See Fig. 660)

1шт.

4

175-402

SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" NC slotted truss head

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

7

F63286

COVER - plenum

1шт.

8

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" NC round head slotted

4шт.

9

195-101

WASHER,3/16"

- 1/4 x 9/16 x 3/64"

4шт.

10

175-402

SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" NC slotted truss head

12шт.

11

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

12шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

10шт.

15

A42532

FILLER - plenum, RH & LH

2шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

8шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

19

F63250

SEAL

-, Serial Range: plenum-cab

2шт.

20

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

22

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

23

NSS

NOT SOLD SEPARAT

TAPE - drip pan holes, 2" wide x 3" long

2шт.
