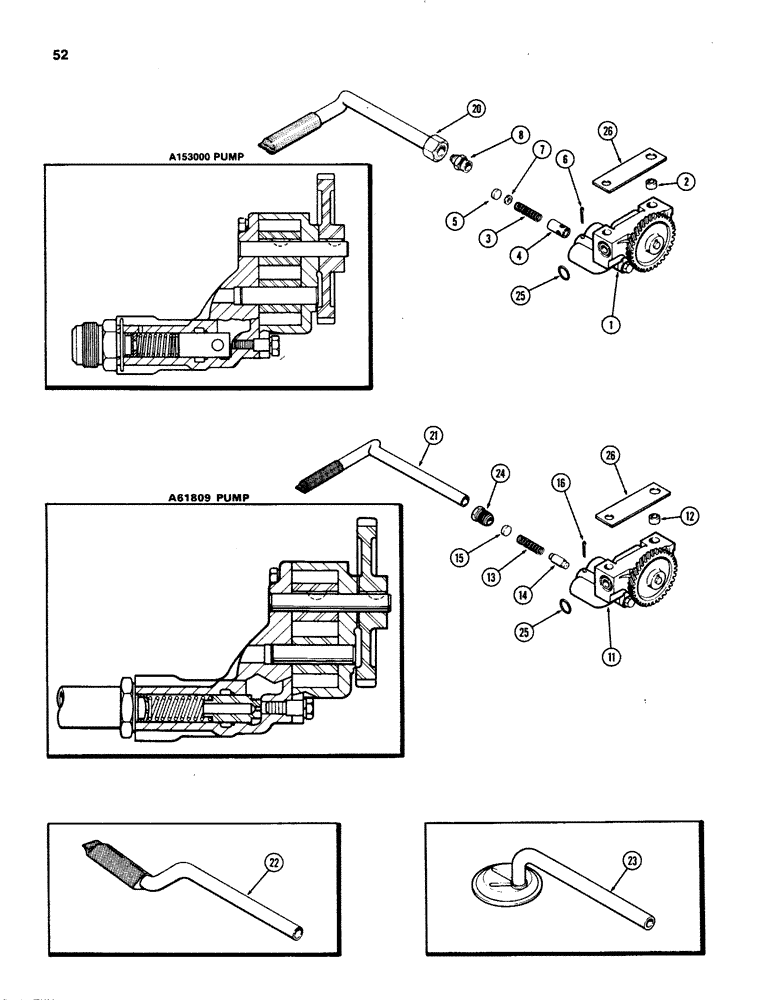

Запчасти Case IH 1070 (0052) - OIL PUMP, 451B DIESEL ENGINE (02) - ENGINE

1

A153000

PUMP

ASSY - oil (Replaces A61809, A65080 & A144773), Includes: Ref. 2 - 7

1шт.

2

A58915

SLEEVE

- pump body

1шт.

3

A59111

SPRING

- relief valve

1шт.

4

A65083

VALVE

- relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

- 11/16" cup

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

A57470

WASHER

- 13/32 x 11/16 x 16 ga

1шт.

8

A142004

CONNECTOR, ELEC

CONNECTOR - oil pump screen tube

1шт.

11

A61809

PUMP

ASSY - oil (Order A153000), Includes: Ref. 12 - 16

1шт.

12

A58915

SLEEVE

- pump body

1шт.

13

A59111

SPRING

- relief valve

1шт.

14

A34992

PISTON

VALVE - relief

1шт.

15

41-1011

PLUG,Cup, 11/16"

- 11/16" cup (Replaces A34951)

1шт.

16

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

20

A142449

TUBE

ASSY - oil suction, w/screen

1шт.

21

A66174

TUBE

ASSY - oil suction, w/screen (Replaces A62911 & A58847) (Order A142449)

1шт.

22

A62911

SCREEN

TUBE ASSY - oil suction, w/screen (Order A142449 & A142004)

1шт.

23

A58847

SCREEN

TUBE ASSY - oil suction (w/screen) (Order A142449 & A142004)

1шт.

24

A142004

CONNECTOR, ELEC

CONNECTOR - oil pump screen tube

1шт.

25

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block (Replaces A58602)

1шт.

26

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.
