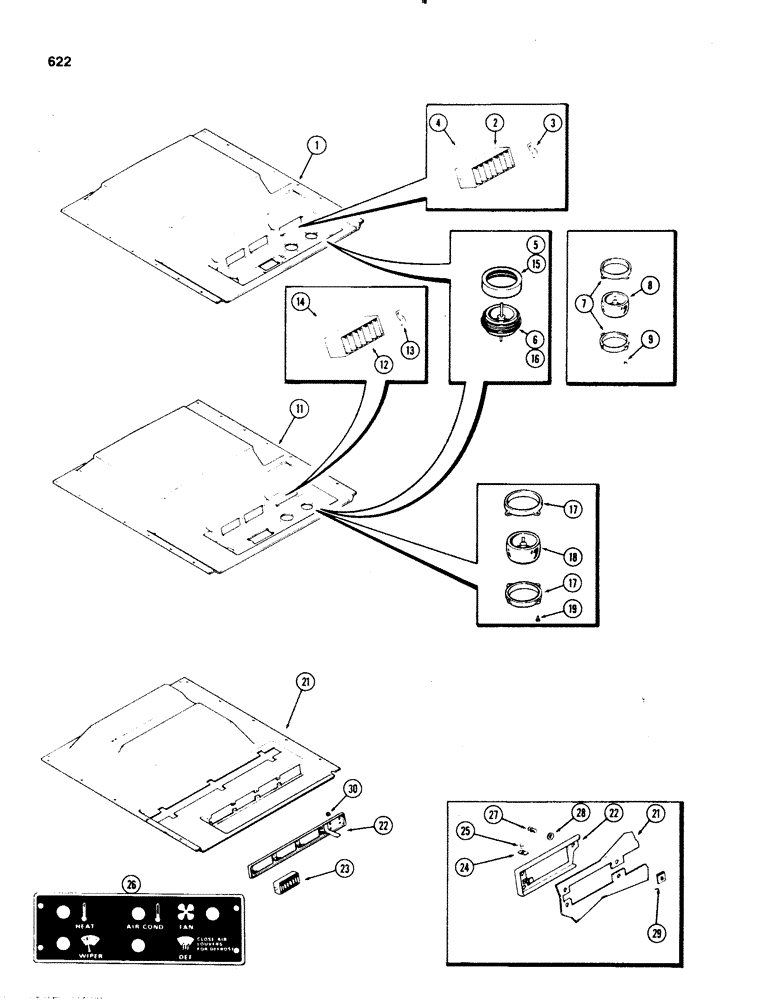

Запчасти Case IH 1070 (0622) - CAB, LOUVERS, 1ST USED CAB SERIAL NUMBER 7821251 (09) - CHASSIS/ATTACHMENTS

1

F63899

NO LONGER SERVICED

HEADLINER ASSY - cab

1шт.

2

F89673

GUARD

LOUVER - air deflection

2шт.

3

A42575

CLIP

- louver mounting

4шт.

4

151-526

RIVET,Pop, 1/8" x .337"

4шт.

5

F64131

RING

- louver retaining (Replaces F63776)

3шт.

6

F64132

GUARD

BALL - louver (Replaces F63777)

3шт.

7

F63776

FRAME

- ball louver (Order F64131 & F64132)

6шт.

8

F63777

BALL

LOUVER - ball (Order F64131 & F64132)

3шт.

9

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8 x 5/8" Phillips, self-tapping

12шт.

11

F89842

LINING

HEADLINER ASSY - cab, used serial numbers, Serial Range: 7814176-7821251

1шт.

12

F89673

GUARD

LOUVER - air deflection, used cab serial numbers, Serial Range: 7814176-7821251

2шт.

13

A42575

CLIP

- louver mounting, used cab serial numbers, Serial Range: 7814176-7821251

4шт.

14

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8", used cab serial numbers 7814176 to 7821251

4шт.

15

F64131

RING

- louver retaining (Replaces F63776), used cab serial numbers, Serial Range: 7814176-7821251

3шт.

16

F64132

GUARD

BALL - louver (Replaces F63777), used cab serial numbers, Serial Range: 7814176-7821251

3шт.

17

F63776

FRAME

- ball louver (Order F64131 & F64132), used cab serial numbers, Serial Range: 7814176-7821251

6шт.

18

F63777

BALL

LOUVER - ball (Order F64131 & F64132), used cab serial numbers, Serial Range: 7814176-7821251

3шт.

19

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8 x 5/8" Phillips, self-tapping, used cab serial numbers 7814176 to 7821251

12шт.

21

F89664

CAB

HEADLINER ASSY - cab, used prior to cab serial number 7814176

1шт.

22

A42552

PANEL ASSY - control (Replaces A42641), Includes: Ref. 23 - 26, used prior to cab serial number 7814176

1шт.

23

F89673

GUARD

LOUVER - air direction control, used prior to cab serial number 7814176

3шт.

24

A42575

CLIP

- louver mounting, used prior to cab serial number 7814176

6шт.

25

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8", used prior to cab serial number 7814176

6шт.

26

321-1914

DECAL

- control panel, used prior to cab serial number 7814176

1шт.

27

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" NC Phillips, used prior to cab serial number 7814176

10шт.

28

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", used prior to cab serial number 7814176

4шт.

29

131-861

SPRING NUT,Tinn, U, #10-24

Used prior to cab S/N 7814176 Tinn, U, #10-24

10шт.

30

353-403

PLUG,Dome, .437" hole, Nylon

Panel, Switch holes, Used prior to cab S/N 7814176 Dome, .437" hole, Nylon

1шт.
