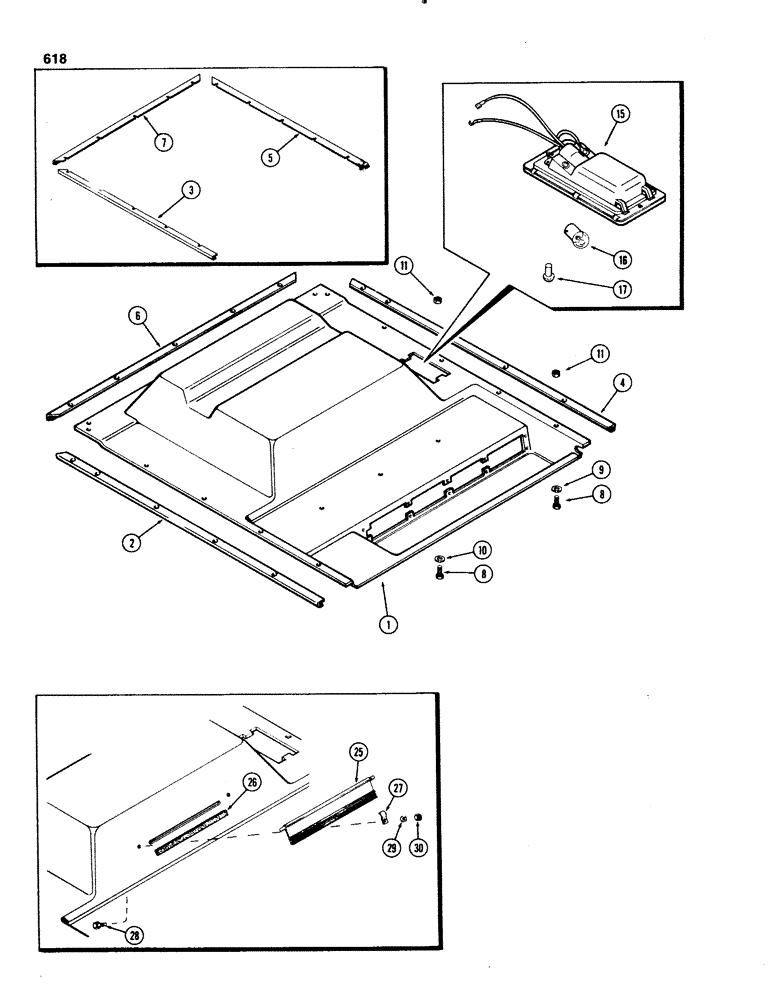

Запчасти Case IH 1070 (0618) - CAB, HEADLINER, USED PRIOR TO TRACTOR SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

F89664

CAB

HEADLINER ASSY - cab (Includes acoustical cover), Includes: Ref. 1

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - cab

1шт.

2

F63452

SOFT TRIM

TRIM - headliner, RH (1st used tractor ser no. 8693001)

1шт.

3

F63270

ORNAMENTAL STRIP

TRIM - headliner, RH (Used prior to tractor ser no. 8693001)

1шт.

4

F63453

SOFT TRIM

TRIM - headliner, LH (1st used trac ser no. 8693001)

1шт.

5

F63271

ORNAMENTAL STRIP

TRIM - headliner, LH (Used prior to trac ser no. 8693001)

1шт.

6

F63454

SOFT TRIM

TRIM - headliner, rear (1st used tractor ser no. 8693001)

1шт.

7

F63276

ORNAMENTAL STRIP

TRIM - headliner, rear (Used prior to trac ser no. 8693001)

1шт.

8

163-13

SCREW,Hex, #10 - 24 x 3/4"

- #10 x 3/4" NC hex

18шт.

9

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

15шт.

10

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16"

3шт.

10

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

3шт.

11

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

18шт.

15

A42658

INTERIOR LIGHT

LIGHT ASSY - dome, Includes: Ref. 16

1шт.

16

A41742

BULB

LIGHT ASSY - dome

1шт.

17

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8"

2шт.

25

F89764

FLAP

VALVE - pressure adjusting (front mounted)

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - valve, 1/2 x 1/8 x 11" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

27

F63260

CLIP

- valve hinge

2шт.

28

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16" NC hex

2шт.

29

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

2шт.

30

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.
