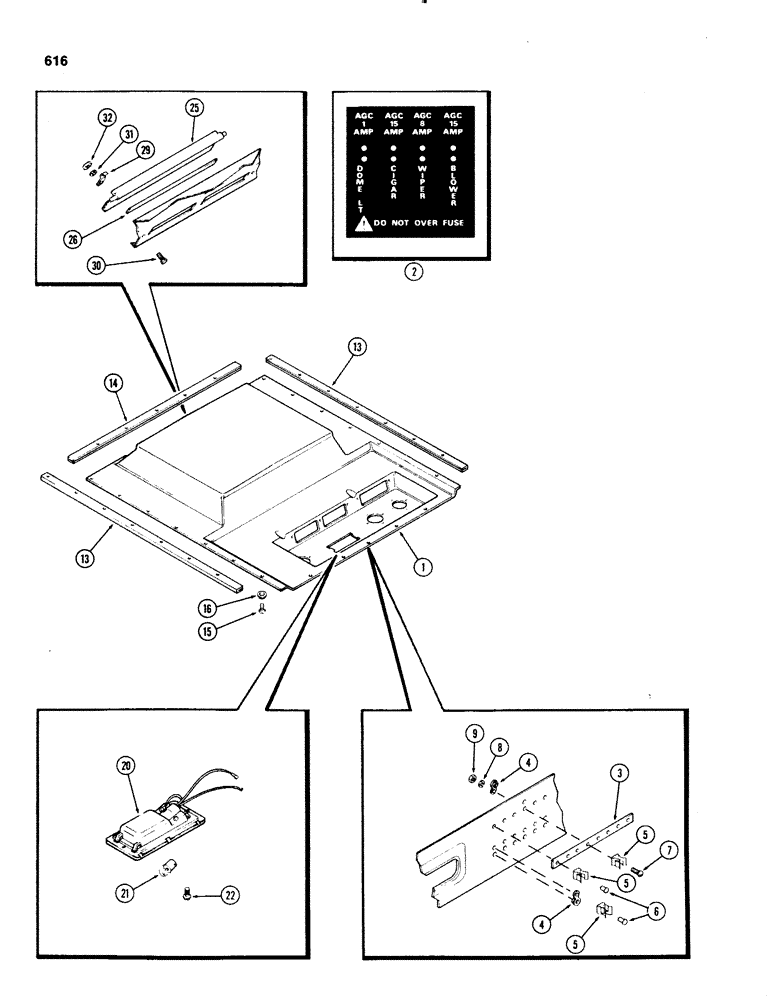

Запчасти Case IH 1070 (0616) - CAB, HEADLINER, USED CAB SERIAL NUMBERS 7814176 TO 7821251 (09) - CHASSIS/ATTACHMENTS

F89842

LINING

HEADLINER ASSY - cab, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - cab

1шт.

2

321-2129

DECAL

- fuse

1шт.

3

F63512

BAR

BUSS BAR - frame

1шт.

4

F63513

CLIP

- buss fuse

5шт.

5

F63514

CLIP

- fusetron

8шт.

6

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8"

7шт.

7

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- #5-40 x 1/2" round head

1шт.

8

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

1шт.

9

129-630

NUT,#5-40, Brass

- #5-40 x 1/2" round head

1шт.

13

F63800

MOLDING

TRIM - side, headliner

2шт.

14

F63799

MOLDING

TRIM - rear, headliner

1шт.

15

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" Phillips drive

22шт.

16

F63765

WASHER

- finishing

22шт.

20

A42658

INTERIOR LIGHT

LIGHT ASSY - dome

1шт.

21

A41742

BULB

- dome light, #89

1шт.

22

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8"

2шт.

25

F89764

FLAP

VALVE - pressure adjusting (rear mounted)

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - valve, 11" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

29

F63810

CLIP

- valve hinge

2шт.

30

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16" NC hex

2шт.

31

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

2шт.

32

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.
