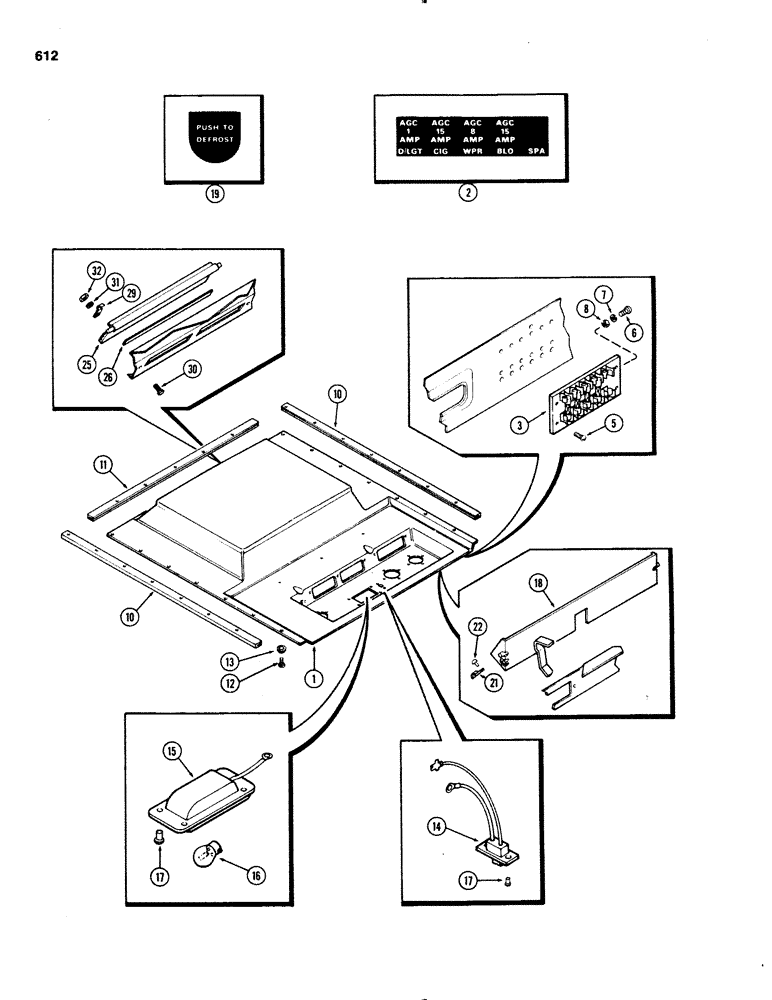

Запчасти Case IH 1070 (0612) - CAB, HEADLINER, 1ST USED CAB SERIAL NUMBER 7837400 (09) - CHASSIS/ATTACHMENTS

1

F64112

LINING

HEADLINER - cab

1шт.

2

321-2738

DECAL

- fuse

1шт.

3

F63858

BLOCK

FUSE BLOCK

1шт.

5

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-15

4шт.

6

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- #5-40 round head slotted

1шт.

7

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

1шт.

8

129-630

NUT,#5-40, Brass

- #5-40 hex

1шт.

10

F63800

MOLDING

TRIM - side, headliner

2шт.

11

F63799

MOLDING

TRIM - rear, headliner

1шт.

12

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" Phillips head

19шт.

13

F63765

WASHER

- finishing

19шт.

14

F63760

SWITCH

- dome light

1шт.

15

F89772

LAMP

- dome, Includes: Ref. 16

1шт.

16

B50217

BULB

- dome light

1шт.

17

151-526

RIVET,Pop, 1/8" x .337"

6шт.

18

F89893

BRACKET

DOOR ASSY - defroster (lever controlled)

1шт.

19

321-2995

DECAL

- defroster control arm (Used w/lever controlled door)

1шт.

21

A42575

CLIP

- defroster

2шт.

22

151-526

RIVET,Pop, 1/8" x .337"

2шт.

25

F89764

FLAP

VALVE - pressure adjusting (rear mounted)

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - valve, 11" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve, 50' roll

1шт.

29

F63810

CLIP

- valve hinge

2шт.

30

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16 NC hex

2шт.

31

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

2шт.

32

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.
