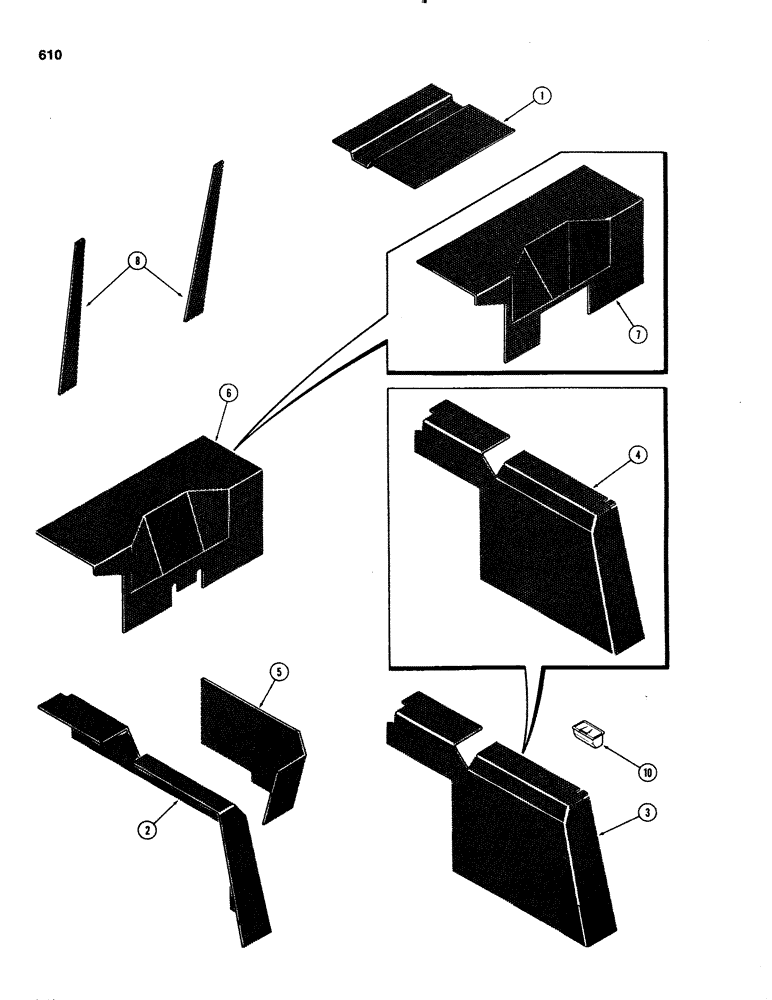

Запчасти Case IH 1070 (0610) - CAB, ACOUSTICAL COVERS, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS/ATTACHMENTS

1

F63416

COVER

- headliner, (1st used trac ser no. 8693001)

1шт.

To be attached with adhesive 345-22

1шт.

1

F63326

PROTECTIVE COVER

COVER - headliner, (Used prior to trac ser no. 8693001)

1шт.

To be attached with adhesive 345-22

1шт.

2

F63296

PROTECTIVE COVER

COVER - fender panel, RH

1шт.

To be attached with adhesive 345-22

1шт.

3

F63809

PROTECTIVE COVER

COVER - fender panel, LH, (Replaces F63295)

1шт.

To be attached with adhesive 345-22

1шт.

4

F63295

COVER

- fender panel, LH, (Order F63809)

1шт.

To be attached with adhesive 345-22

1шт.

5

A61141

PROTECTIVE COVER

COVER - console

1шт.

To be attached with adhesive 345-22

1шт.

6

A65426

PROTECTIVE COVER

COVER - fuel tank, (Replaces A61142)

1шт.

To be attached with adhesive 345-22

1шт.

7

A61142

COVER

- fuel tank, (Order A65426)

1шт.

To be attached with adhesive 345-22

1шт.

8

F63195

COVER

- corner filler

2шт.

To be attached with adhesive 345-22

1шт.

10

F63395

TRAY

ASH TRAY -

1шт.

Cut hole in LH fender covers and insert ash tray

1шт.
