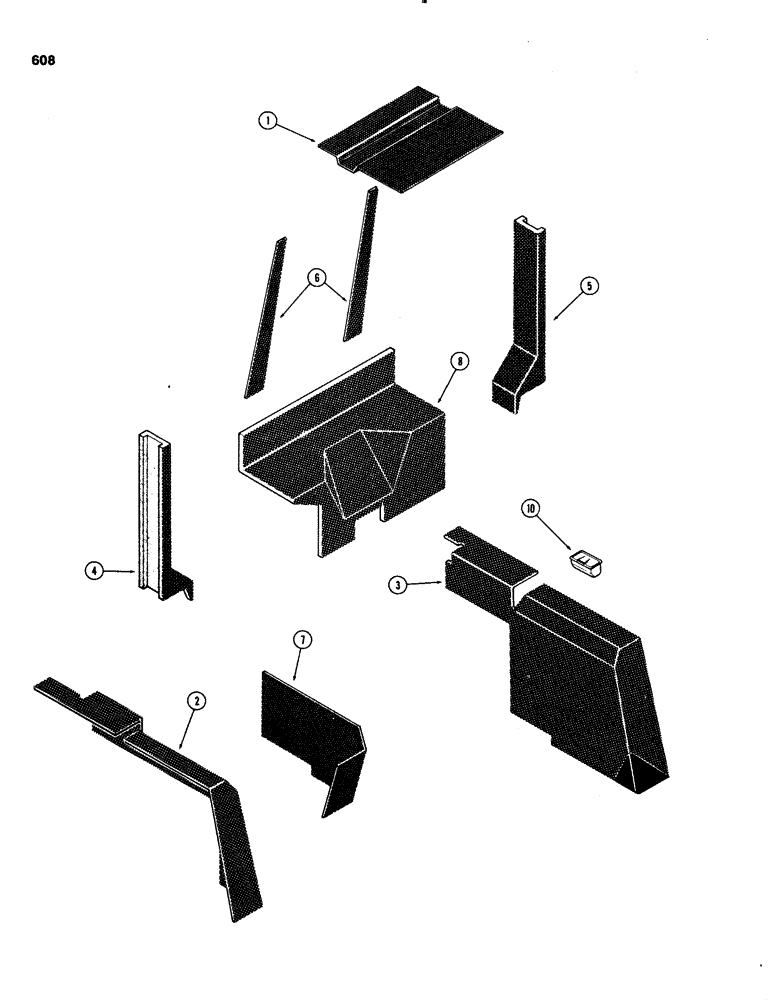

Запчасти Case IH 1070 (0608) - CAB, ACOUSTICAL COVERS, USED TRACTOR SERIAL NUMBERS 8736722 TO 8797501 (09) - CHASSIS/ATTACHMENTS

1

F63416

COVER

- headliner

1шт.

To be attached with adhesive 345-22

1шт.

2

F63979

COVER

- fender panel, RH

1шт.

To be attached with adhesive 345-22

1шт.

3

F63980

COVER

- fender panel, LH

1шт.

To be attached with adhesive 345-22

1шт.

4

F63981

COVER

- roll bar, RH

1шт.

To be attached with adhesive 345-22

1шт.

5

F63982

COVER

- roll bar, LH

1шт.

To be attached with adhesive 345-22

1шт.

6

F63195

COVER

- corner filler

2шт.

To be attached with adhesive 345-22

1шт.

7

A66560

COVER

- console, (Order A141977)

1шт.

To be attached with adhesive 345-22

1шт.

8

A66561

COVER

- fuel tank, (Order A141973)

1шт.

To be attached with adhesive 345-22

1шт.

10

F63395

TRAY

ASH TRAY

1шт.

Cut hole in LH fender covers and insert ash tray

1шт.
