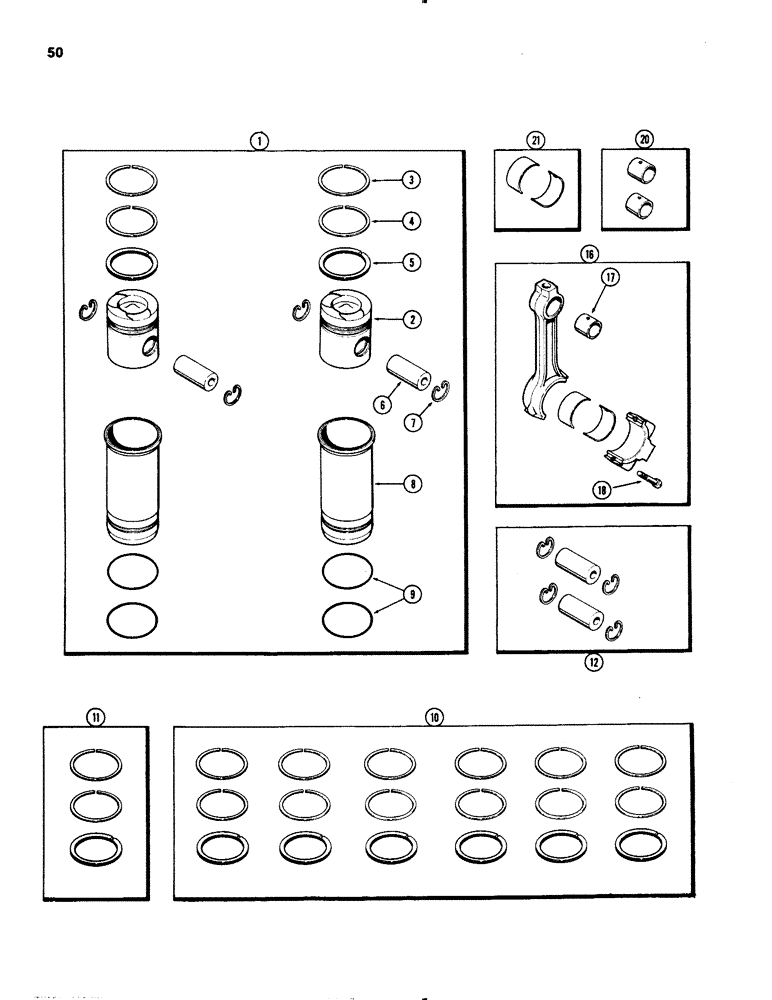

Запчасти Case IH 1070 (0050) - PISTON ASSEMBLY, 451B DIESEL ENGINE (02) - ENGINE

1

A46022

SET

PISTON & SLEEVE KIT - (Set of 2) (Replaces A43023 & A43714), Includes: Ref. 2 - 9

3шт.

2

A64766

PISTON

- cylinder, 4-3/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Bottom groove) (Order ref 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

8

A142367

SLEEVE

- piston (cylinder liner) (Replaces A59093)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- sleeve packing

4шт.

10

A43029

RING, SET

RING KIT - re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A43028

RING, SET

RING KIT - re-ring (Set of 1)

6шт.

12

A43713

PIN

KIT - w/retaining rings (Set of 2)

3шт.

16

A62952

ROD

ASSY. - connecting (1st used eng. ser no. 2331248)

6шт.

16

A58862

ROD

ASSY - connecting (Used prior to eng ser no. 2331248), Includes: Ref. 17 and 18

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref 20), connecting rods

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - 1/2 x 2-3/16" NF 12 pt head (Replaces A62184), connecting rods

2шт.

20

A21722

BUSHING

KIT - piston pin (Set of 2), connecting rods

3шт.

21

A43173

BEARING LINER

INSERT ASSY - connecting rod bearing (Std) (Replaces A42493)

6шт.

21

A43174

BEARING LINER

INSERT ASSY - connecting rod bearing (-.002") (Replaces A42478)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT ASSY - connecting rod bearing (-.010") (Replaces A42479)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT ASSY - connecting rod bearing (-.020") (Replaces A42480)

6шт.

21

A43177

BEARING LINER

INSERT ASSY - connecting rod bearing (-.030") (Replaces A42481)

6шт.
