(0602) - CAB, INSULATION, FIREWALL, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722 (SEE NOTE)

Запчасти Case IH 1070 (0602) - CAB, INSULATION, FIREWALL, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722 (SEE NOTE) (09) - CHASSIS/ATTACHMENTS

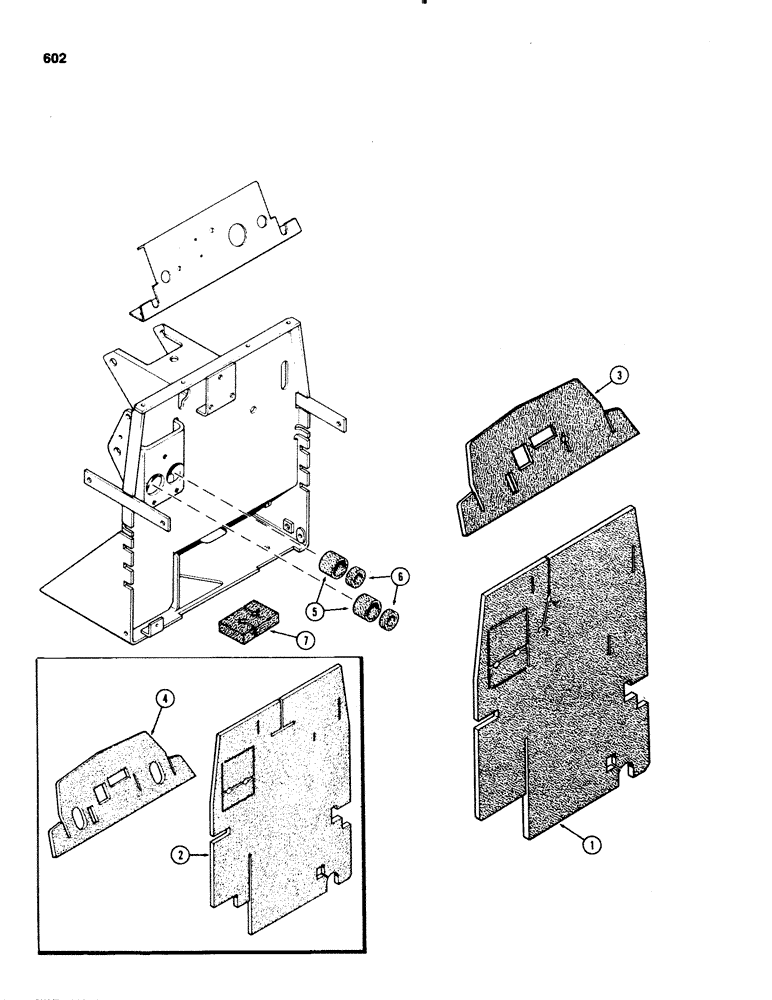

Схема запчастей Case IH 1070 - (0602) - CAB, INSULATION, FIREWALL, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722 (SEE NOTE) (09) - CHASSIS/ATTACHMENTS
7
3
2
4
1
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A64560

PAD

- acoustical, firewall, (1st used trac ser no. 8693001)

1шт.

To be attached with adhesive 345-22

1шт.

2

A62531

PAD

- acoustical, firewall, (Used prior to trac ser no. 8693001)

1шт.

To be attached with adhesive 345-22

1шт.

3

A64561

PAD

- acoustical, firewall baffle, (1st used trac ser no. 8693001)

1шт.

To be attached with adhesive 345-22

1шт.

4

A60817

CUSHION

PAD - acoustical, firewall baffle, (Used prior to trac ser no. 8693001)

1шт.

To be attached with adhesive 345-22

1шт.

5

A61288

COLLAR

- master cylinder air seal, outer

2шт.

6

A61287

COLLAR

- master cylinder air seal, inner

2шт.

7

A64965

SEAL

- firewall sealing

4шт.
