Запчасти Case IH 1070 (0598) - CAB, INSULATION, PLATFORM, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS/ATTACHMENTS

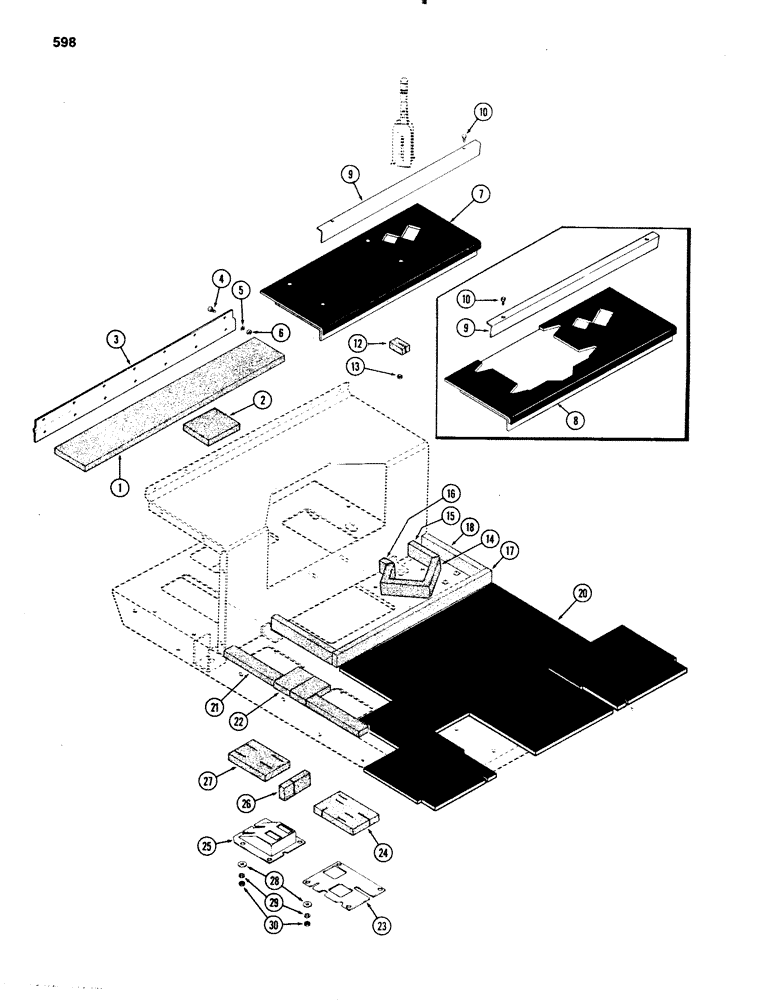

Схема запчастей Case IH 1070 - (0598) - CAB, INSULATION, PLATFORM, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS/ATTACHMENTS
7
10
23
1
13
18
9
21
26
29
22
17
28
6
15
27
4
24
2
20
5
8
30
16
12
3
14
25
9
10

№

Артикул

Название

Примечание

Количество

1

A61699

SEAL

- fuel tank sealing, (Order A141916)

1шт.

2

A62594

FOAM

- fuel tank, top groove

1шт.

3

A62688

PLATE

- cab to fuel tank cover

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

14шт.

6

9635082

NUT,5/16" - 18, Gr 5

14шт.

7

A64991

MAT

- floor, rear, (1st used trac ser no. 8693001) (Order A135686)

1шт.

To be attached with adhesive 345-22

1шт.

8

A60821

MAT - floor, rear, (Used prior to trac ser no. 8693001)

1шт.

To be attached with adhesive 345-22

1шт.

9

A62461

FLOOR

ANGLE - floor mat retaining

1шт.

10

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4 x 3/4" slotted self-drill & tap

2шт.

12

A60819

FOAM

- hand brake sealing

1шт.

13

A60818

GROMMET

- hand brake cable

1шт.

14

A62674

FOAM

- hand brake sealing

1шт.

To be attached with adhesive 345-22

1шт.

15

A62675

FOAM

- hand brake sealing

1шт.

To be attached with adhesive 345-22

1шт.

16

A62676

FOAM - hand brake sealing

1шт.

To be attached with adhesive 345-22

1шт.

17

A60828

FOAM

- seat support sealing, front

1шт.

To be attached with adhesive 345-22

1шт.

18

A60827

FOAM

- seat support sealing, sides

2шт.

To be attached with adhesive 345-22

1шт.

20

A60820

MAT

- floor, front, (Order A135685)

1шт.

To be attached with adhesive 345-22

1шт.

21

A60814

FOAM

- sealing, console bottom

2шт.

To be attached with adhesive 345-22

1шт.

22

A60815

FOAM

- sealing, console bottom

2шт.

To be attached with adhesive 345-22

1шт.

23

A60810

COVER ASSY - console front, Includes: Ref. 24

1шт.

24

A60812

FOAM

- sealing, cover

1шт.

To be attached with adhesive 345-22

1шт.

25

A61088

COVER ASSY - console, rear, Includes: Ref. 26 and 27

1шт.

26

A60807

FOAM

- sealing, cover front

1шт.

To be attached with adhesive 345-22

1шт.

27

A61090

FOAM

- sealing, cover top

1шт.

To be attached with adhesive 345-22

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

8шт.

Выбрано товаров: 41
