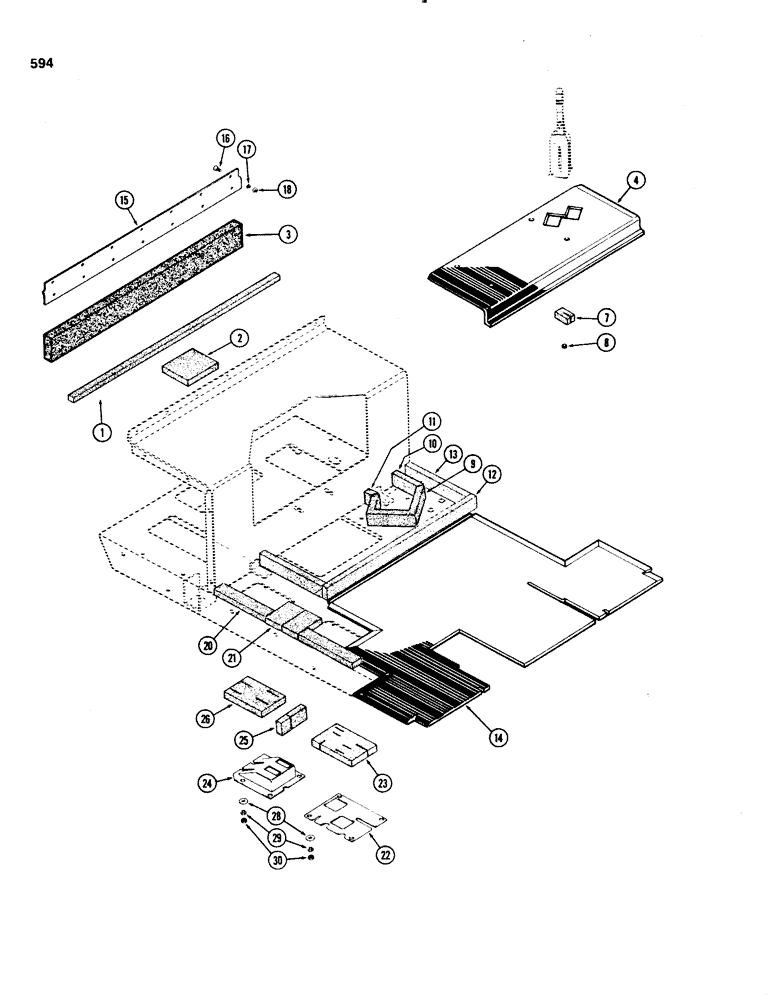

Запчасти Case IH 1070 (0594) - CAB, INSULATION, PLATFORM, 1ST USED TRACTOR SERIAL NUMBER 8755998 (09) - CHASSIS/ATTACHMENTS

1

A139751

FILLING STRIP

FOAM - fuel tank sealing (See Note) (Replaces A61699)

1шт.

To be attached with adhesive 345-22

1шт.

2

A62594

FOAM

- fuel tank, top groove

1шт.

To be attached with adhesive 345-22

1шт.

3

A66558

FOAM

- fuel tank, cover filler

1шт.

On tractors with adjustable axles only, A64507 spindle can replace A60214 spindle & A59692 center steering arm (see Fig. 218)

1шт.

4

A135686

MAT

- floor, rear

1шт.

To be attached with adhesive 345-22

1шт.

7

A60819

FOAM

- hand brake sealing

1шт.

8

A60818

GROMMET

- hand brake cable

1шт.

9

A62674

FOAM

- hand brake sealing

1шт.

To be attached with adhesive 345-22

1шт.

10

A62675

FOAM

- hand brake sealing

1шт.

To be attached with adhesive 345-22

1шт.

11

A62676

FOAM - hand brake sealing

1шт.

To be attached with adhesive 345-22

1шт.

12

A60828

FOAM

- seat support sealing, front

1шт.

To be attached with adhesive 345-22

1шт.

13

A60827

FOAM

- seat support sealing, sides

2шт.

To be attached with adhesive 345-22

1шт.

14

A135685

MAT

- floor, front

1шт.

To be attached with adhesive 345-22

1шт.

15

A62688

PLATE

- cab to fuel tank cover

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

14шт.

18

9635082

NUT,5/16" - 18, Gr 5

14шт.

20

A60814

FOAM

- sealing, console bottom

2шт.

To be attached with adhesive 345-22

1шт.

21

A60815

FOAM

- sealing, console bottom

2шт.

To be attached with adhesive 345-22

1шт.

22

A60810

COVER ASSY - console front, Includes: Ref. 23

1шт.

23

A60812

FOAM

- sealing, cover

1шт.

To be attached with adhesive 345-22

1шт.

24

A61088

COVER ASSY - console, rear, Includes: Ref. 25 - 30

1шт.

25

A60807

FOAM

- sealing, cover front

1шт.

To be attached with adhesive 345-22

1шт.

26

A61090

FOAM

- sealing, cover top

1шт.

To be attached with adhesive 345-22

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

4шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

8шт.
